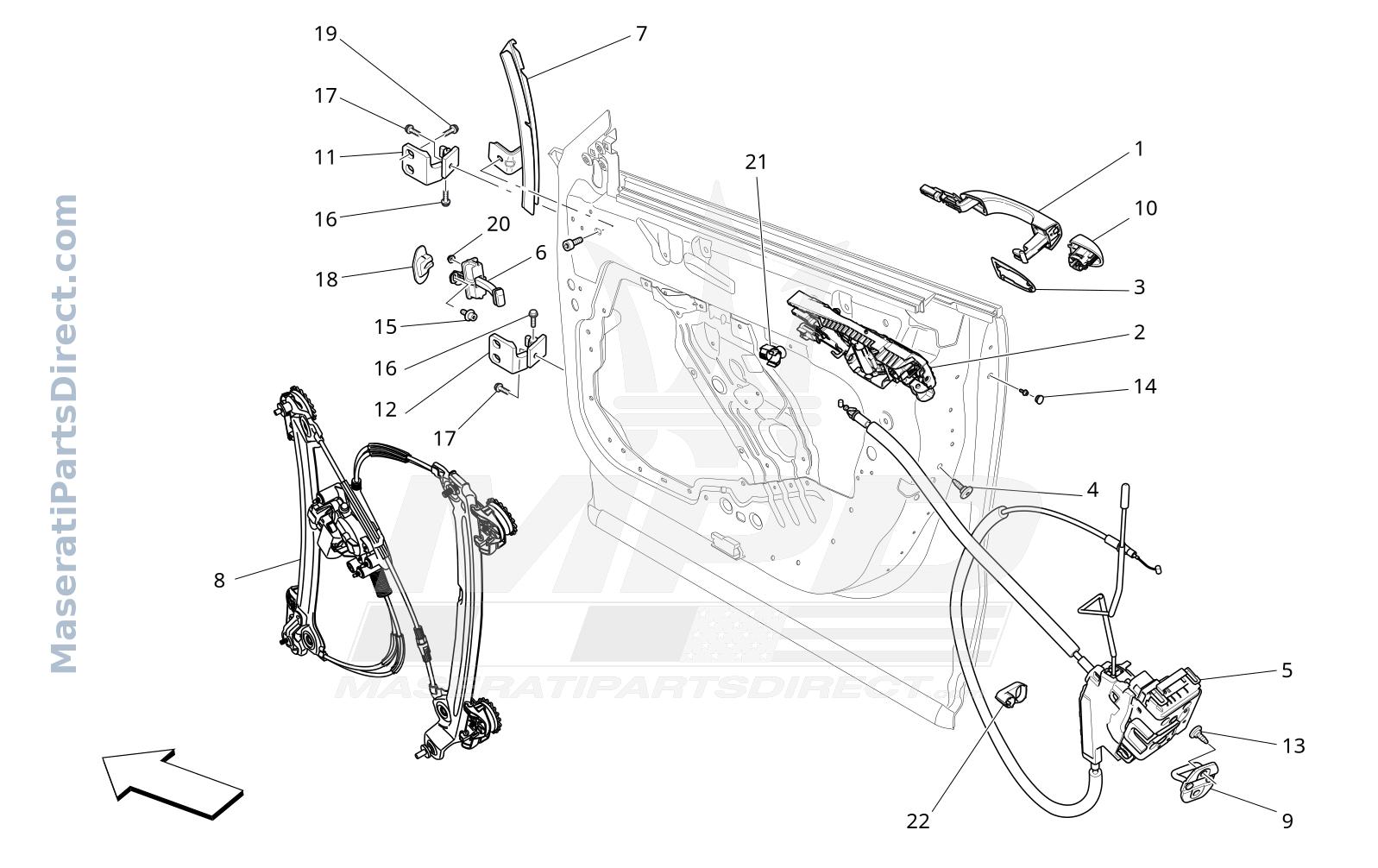

09.31 - 1 - FRONT DOORS: MECHANISMS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	EXTERNAL DOOR HANDLE	$0.00 Order
1	custom	EXTERNAL DOOR HANDLE	$0.00 Order
1	custom	EXTERNAL DOOR HANDLE	$0.00 Order
1	custom	EXTERNAL DOOR HANDLE	$0.00 Order
2	670033849 Replaced by: #670109525	LH EXTERNAL DOOR HANDLE RETAINING BRACKET	$0.00 Order
2	670107991 Replaced by: #670109525	LH EXTERNAL DOOR HANDLE RETAINING BRACKET	$0.00 Order
2	670109525	LH EXTERNAL DOOR HANDLE RETAINING BRACKET	$213.62 Order
2	670034542 Replaced by: #670109516	RH EXTERNAL DOOR HANDLE RETAINING BRACKET	$0.00 Order
2	670107984 Replaced by: #670109516	RH EXTERNAL DOOR HANDLE RETAINING BRACKET	$0.00 Order
2	670109516	RH EXTERNAL DOOR HANDLE RETAINING BRACKET	$110.33 Order
3	670005442	EXTERNAL DOOR HANDLE GASKET	$9.73 Order
4	670036950 Replaced by: #670154292	SCREW	$0.00 Order
4	670154292	SCREW	$11.25 Order
5	670101183 Replaced by: #670216493	LH FRONT DOOR LOCK	$0.00 Order
5	670162415 Replaced by: #670216493	LH FRONT DOOR LOCK	$0.00 Order
5	670216493	LH FRONT DOOR LOCK	$356.10 Order
5	670101181 Replaced by: #670216489	RH FRONT DOOR LOCK	$0.00 Order
5	670162411 Replaced by: #670216489	RH FRONT DOOR LOCK	$0.00 Order
5	670216489	RH FRONT DOOR LOCK	$303.13 Order
6	670035101	TIE ROD	$61.91 Order
7	670032745	FRONT LH WINDOW RUN CHANNEL	$64.51 Order
7	670032749	FRONT RH WINDOW RUN CHANNEL	$64.51 Order
8	670032859 Replaced by: #670176157	LH FRONT POWER WINDOW	$0.00 In Stock
8	670104204 Replaced by: #670176157	LH FRONT POWER WINDOW	$0.00 In Stock
8	670176157	LH FRONT POWER WINDOW	$828.21 In Stock
8	670032860 Replaced by: #670176156	RH FRONT POWER WINDOW	$0.00 In Stock
8	670104203 Replaced by: #670176156	RH FRONT POWER WINDOW	$0.00 In Stock
8	670176156	RH FRONT POWER WINDOW	$828.21 In Stock
9	675000573	DOORS LOCK STRIKER	$42.20 Order
10	custom	DOOR LOCK REVOLVING PLUG TRIMLH side	$0.00 Order
10	custom	DOOR LOCK REVOLVING PLUG TRIMRH side	$0.00 Order
11	675000160	LH UPPER HINGE	$52.55 Order
11	675000162	RH UPPER HINGE	$93.52 Order
12	675000159	LH LOWER HINGE	$50.43 Order
12	675000161	RH LOWER HINGE	$52.55 Order
13	670009758	SPECIAL SCREW	$6.93 Order
14	custom	PLUG	$0.00 Order
15	670006984	SCREW	$10.40 Order
16	675000005	SCREWM 8x15	$6.93 Order
17	675000485	SCREWM10	$9.73 Order
18	670034687	GASKET	$13.28 Order
19	675000485	SCREWM10	$9.73 Order
20	670006983	NUT	$9.20 Order
