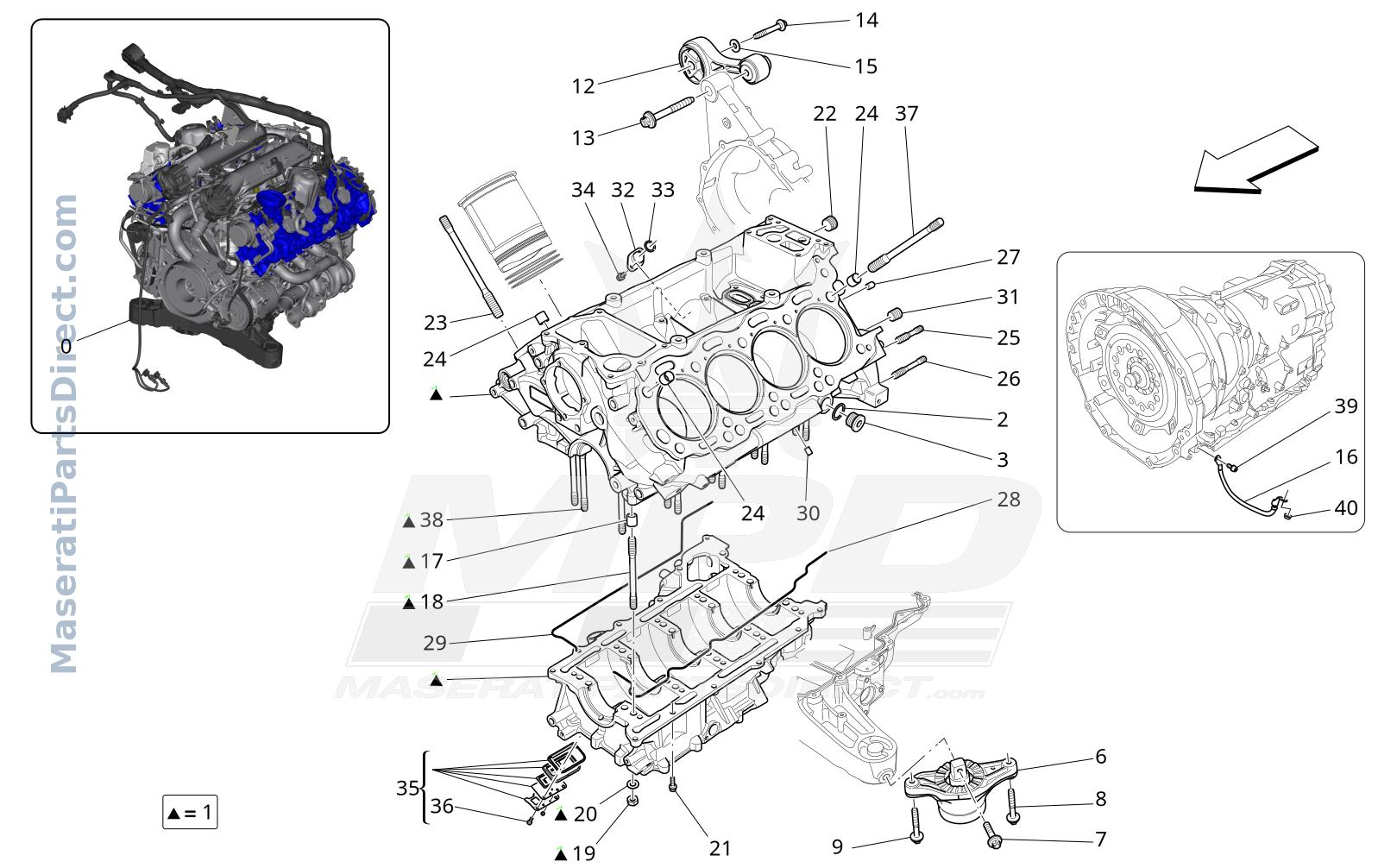

01.00 - 2 - CRANKCASE

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
0	670104135	ENGINE ASSEMBLY	$0.00 Order
1	322893 Replaced by: #838634.0	ENGINE BLOCK	$0.00 Order
1	838634	ENGINE BLOCK	$8,405.48 Order
2	10263460	GASKET	$9.24 Order
3	282754	THREADED PLUG	$23.79 Order
6	670003629	LH ENGINE BUSHING	$425.29 Order
6	670103986	RH ENGINE BUSHING	$728.63 Order
7	670038507	SCREW	$21.52 Order
8	670103984	SCREW	$0.00 Order
8	670103983	SCREW	$23.43 Order
9	670035588	SCREW	$20.51 Order
12	670103985	HIGH LINK ROD	$273.48 Order
13	670103996	SCREW	$0.00 Order
14	675000051	SCREW	$11.08 Order
16	670104432	CABLE FOR ENGINE-FRAME EARTH	$61.81 Order
17	102725	CENTERING DOWEL	$10.40 Order
18	270465	STUD	$81.43 Order
19	133988	NUTM10	$10.40 Order
20	178348	WASHERD.10.2-20X2.4	$11.52 Order
21	231620	SCREWM6X25	$5.58 In Stock
22	282753	THREADED PLUG	$25.38 Order
23	270464	STUD	$75.46 Order
24	185360	CENTERING DOWEL	$23.23 Order
25	278120	STUD	$85.40 Order
26	278119	STUD	$79.27 Order
27	311001	CENTERING DOWEL	$0.00 Order
28	339289	LH GASKET	$0.00 Order
29	339298	RH GASKET	$0.00 Order
31	291078	THREADED PLUG	$14.18 Order
32	265562	FLANGE	$71.11 Order
33	264447	O.R. GASKET	$9.20 Order
34	231617	SCREWM6X18	$8.28 Order
35	255138	BLOW BY VALVE ASSEMBLY	$0.00 Order
36	264889	SCREW	$0.00 Order
37	271564	STUD	$85.59 Order
38	270466	STUD	$91.37 Order
