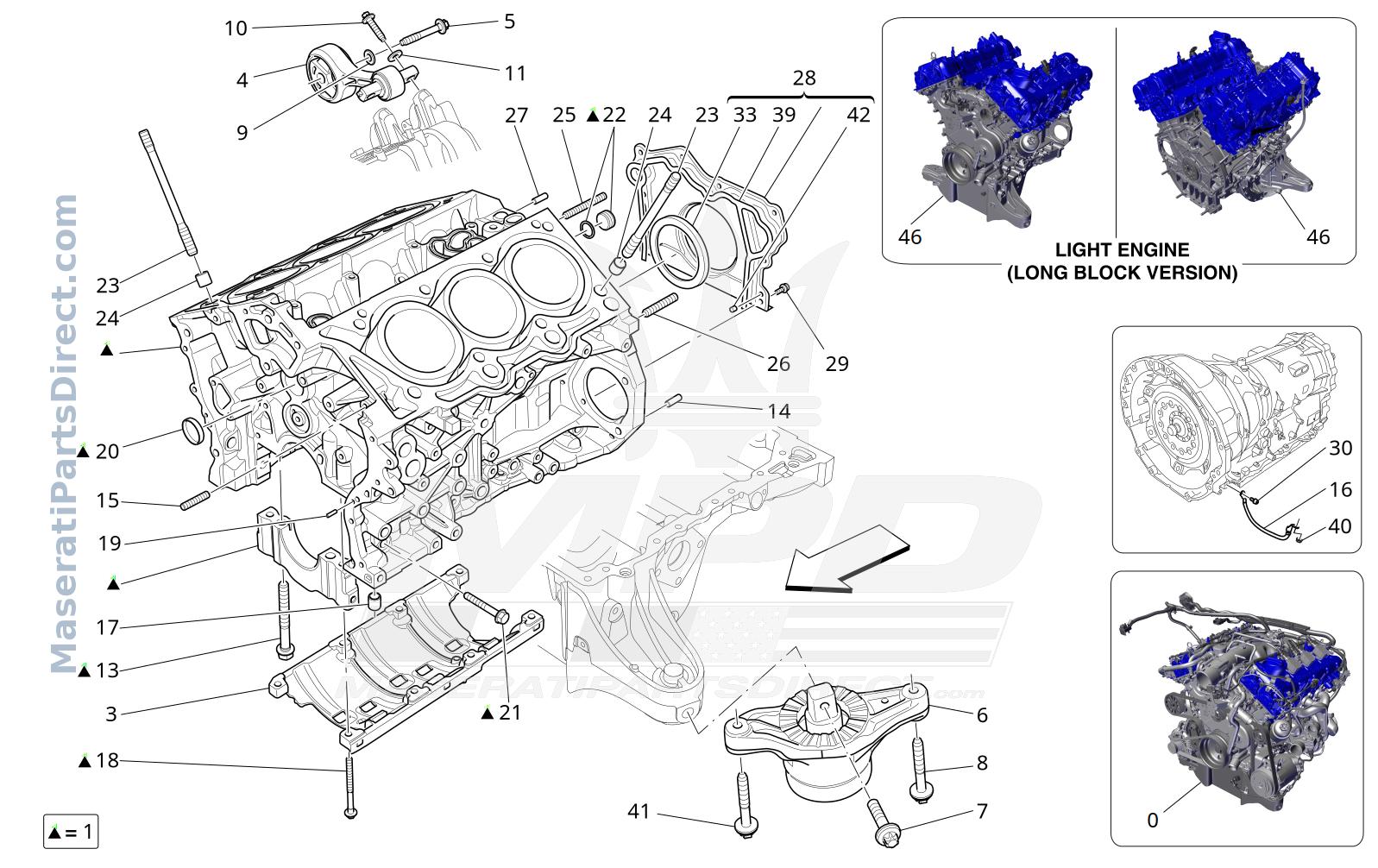

01.00 - 3 - CRANKCASE

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
0	670102043	ENGINE ASSEMBLY	$0.00 Order
1	767001	ENGINE BLOCK	$0.00 Order
3	275361	BASE SHIELD	$210.56 Order
4	670032042	HIGH LINK ROD	$246.50 Order
5	670007895	SCREWM12	$12.41 Order
6	670003629	LH ENGINE BUSHING	$425.29 Order
6	670003628	RH ENGINE BUSHING	$425.29 Order
7	670038507	SCREW	$21.52 Order
8	670103984	SCREW	$0.00 Order
9	675000096	WASHERD.12.2-28X3	$7.65 Order
10	670035412	SCREW	$11.72 Order
11	675000247	WASHERD.10.2-25X3	$9.73 Order
13	-	SCREWM11INCLUDED IN THE ENGINE BLOCK	$0.00 Order
14	10337710	STUD	$16.70 Order
16	670007404	CABLE FOR ENGINE-FRAME EARTH	$186.10 Order
17	300476	CENTERING DOWEL	$18.87 Order
18	275360	SCREWM8	$21.03 Order
19	279025	CENTERING DOWEL	$243.36 Order
20	-	PLUGTEMPORARILY UNAVAILABLE , ORDER P/N 299667	$0.00 Order
21	282607	SCREWM8X40	$15.89 Order
21	-	SCREWM8X58TEMPORARILY UNAVAILABLE , ORDER P/N 299667	$0.00 Order
22	313719	THREADED PLUG WITH COPPER WASHER	$137.39 Order
23	306027	STUD	$43.04 Order
24	185360	CENTERING DOWEL	$23.23 Order
25	303590	STUD	$23.79 Order
26	303589	STUD	$23.10 Order
27	10337710	STUD	$16.70 Order
28	327702 Replaced by: #335495.0	REAR PLATE	$0.00 Order
28	335495	REAR PLATE	$207.35 Order
29	231617	SCREWM6X18	$8.28 Order
30	675000383	SCREWM8X16	$10.62 Order
33	334627	SEAL RING	$172.79 In Stock
39	326558	GASKET	$30.83 Order
40	675000505	NUTM8	$12.98 Order
41	670035588	SCREW	$20.51 Order
42	102725	CENTERING DOWEL	$10.40 Order
46	673015476	LIGHT ENGINE (LONG BLOCK VERSION)	$0.00 Order
