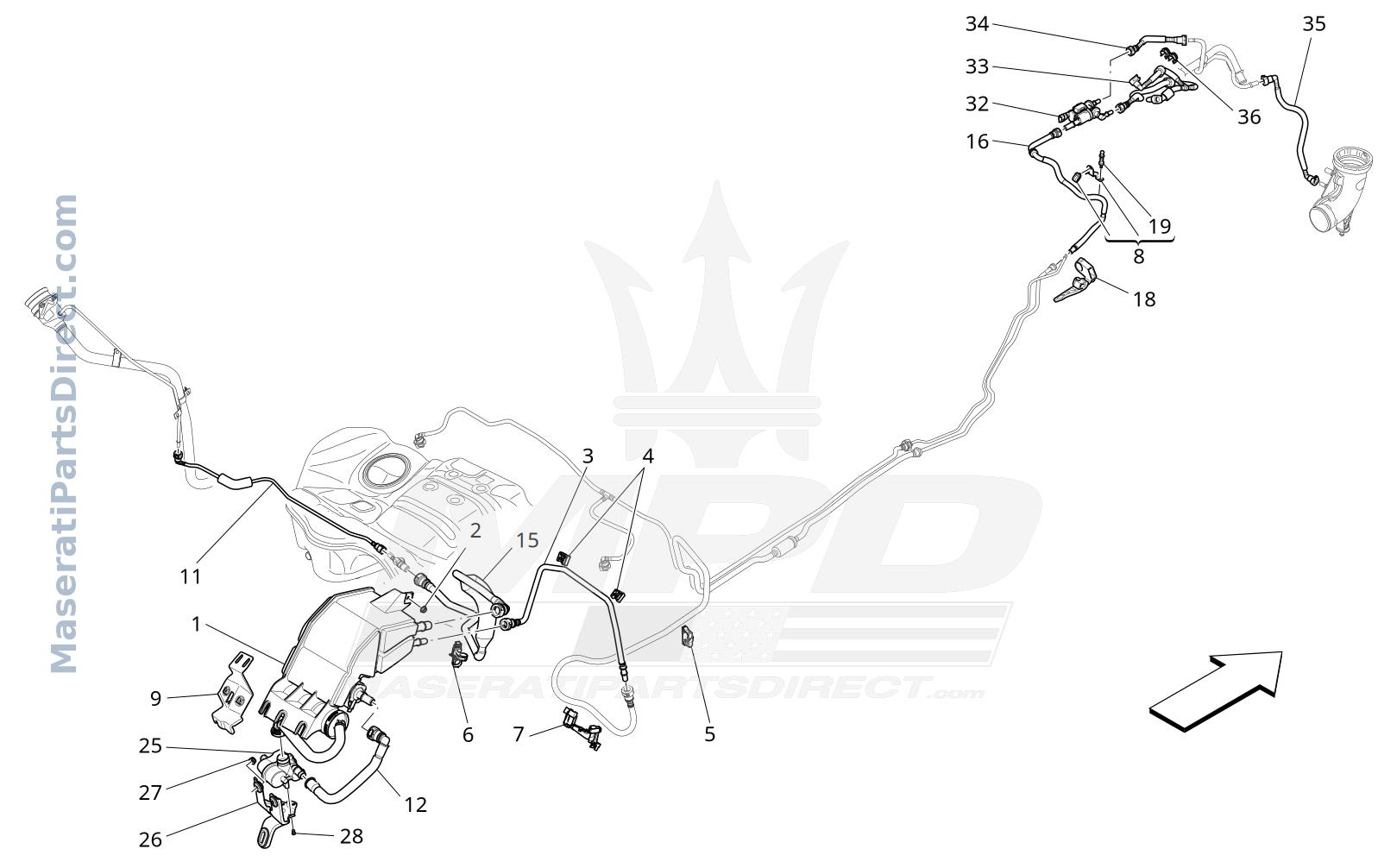

01.44 - 6 - FUEL VAPOUR RECIRCULATION SYSTEM

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670033286	FUEL VAPOUR FILTER	$147.94 In Stock
2	675000114	NUT	$8.00 Order
3	670033294	PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	$68.94 Order
4	670033289	CLIP	$13.88 Order
5	675000790	CLIP	$0.00 Order
6	670100038	BRACKET	$13.88 Order
7	670031947	CLIP	$34.50 Order
8	670104107 Replaced by: #670153080.0	BRACKET ASSEMBLY	$0.00 Order
8	670153080	BRACKET ASSEMBLY	$0.00 Order
9	670034699	REAR BRACKET	$0.00 Order
11	670033572	VAPOUR PIPE	$91.30 Order
12	670033292	PIPE FROM FUEL VAPOUR FILTER TO DIAGNOSTIC PUMP	$122.22 Order
15	670033274	VENT PIPE	$221.84 Order
16	670104109	PIPE BETWEEN UNION AND INTAKE MANIFOLD	$53.43 Order
18	670104126	BRACKET ASSEMBLY	$0.00 Order
19	670005779	BALL PIN	$15.89 Order
25	670002246	DIAGNOSTICS PUMP	$197.91 In Stock
26	670001415	REAR CONSOLE REAR BRACKET	$65.27 Order
27	675000108	NUT	$10.14 Order
28	675000195	SCREWM5X12	$10.00 Order
32	670106836 Replaced by: #670162028.0	SOLENOID VALVE	$0.00 Order
32	670162028	SOLENOID VALVE	$86.86 In Stock
33	670104110	PIPE FROM SOLENOID VALVE TO ENGINE	$261.42 Order
34	670104111	PIPE FROM SOLENOID VALVE TO CLEAN AIR SLEEVE PIPE	$65.00 Order
35	670104112	VAPOUR PIPE FROM PIPE TO CLEAN AIR SLEEVE	$89.32 Order
36	670104150	CLIP	$0.00 Order
