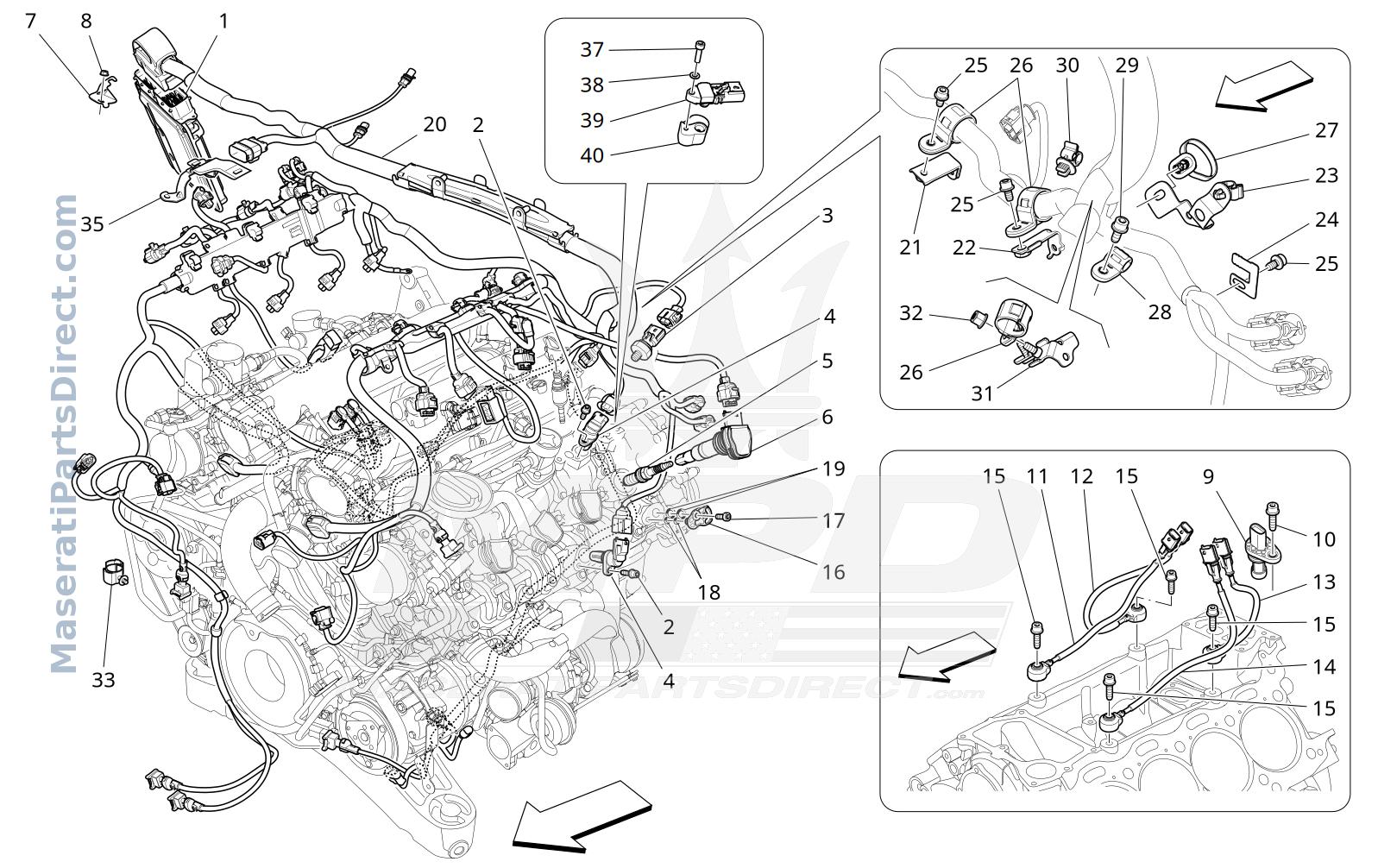

01.90 - 1 - ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670104910 Replaced by: #670217885	IGNITION CONTROL UNIT	$0.00 Order
1	670031346	IGNITION CONTROL UNIT	$1,619.96 Order
2	231617	SCREWM6X18	$8.28 Order
3	328660	OIL PRESSURE SENSOR	$112.77 Order
4	224573	TIMING SENSOR	$115.20 Order
5	310235	SPARK PLUG	$33.49 In Stock
6	337712	IGNITION COIL	$245.19 Order
7	670009042	CONTROL UNIT FIXING BRACKET	$34.08 Order
8	14059211	NUTM6	$6.21 Order
9	287273	ANGULAR SPEED SENSOR	$200.46 Order
10	231618	SCREWM6X20	$6.93 Order
11	287756	COMPLETE RH KNOCK SENSOR, CYLINDERS 1-2	$233.34 Order
12	287757	COMPLETE RH KNOCK SENSOR, CYLINDERS 3-4	$234.95 Order
13	287758	COMPLETE LH KNOCK SENSOR, CYLINDERS 5-6	$233.34 Order
14	287759	COMPLETE LH KNOCK SENSOR, CYLINDERS 7-8	$234.95 Order
15	231629	SCREWM8X30	$9.17 In Stock
16	287024	LH PLUG	$50.11 Order
16	287233	RH PLUG	$27.23 Order
17	13026924	SCREW	$11.52 Order
18	14452781	O.R. GASKET	$10.62 Order
19	14453281	O.R. GASKET	$4.18 Order
20	923980 Replaced by: #785135	ENGINE INJECTION WIRING HARNESS	$0.00 Order
20	785135	ENGINE INJECTION WIRING HARNESS	$3,159.63 Order
20	842921 Replaced by: #785135	ENGINE INJECTION WIRING HARNESS	$0.00 Order
21	260001	BRACKET	$41.18 Order
22	290065	BRACKET	$70.57 Order
23	293624	BRACKET ASSEMBLY	$104.67 Order
24	175856	CONNECTOR FIXING BRACKET	$18.87 Order
25	233600	SCREWM6X12	$9.20 Order
26	244225	CLIP	$21.03 Order
27	10901087	CLAMP	$16.17 Order
28	244218	CLIP	$27.90 Order
29	231616	SCREWM6X14	$9.20 Order
30	288849	CLIP	$112.79 Order
31	295730	BRACKET	$90.66 Order
32	228265	NUT	$11.40 Order
34	670106741	CLIP	$0.00 Order
34	670155145	CLIP	$0.00 Order
35	670106829	BRACKET	$0.00 Order
35	670153079	BRACKET	$104.33 Order
