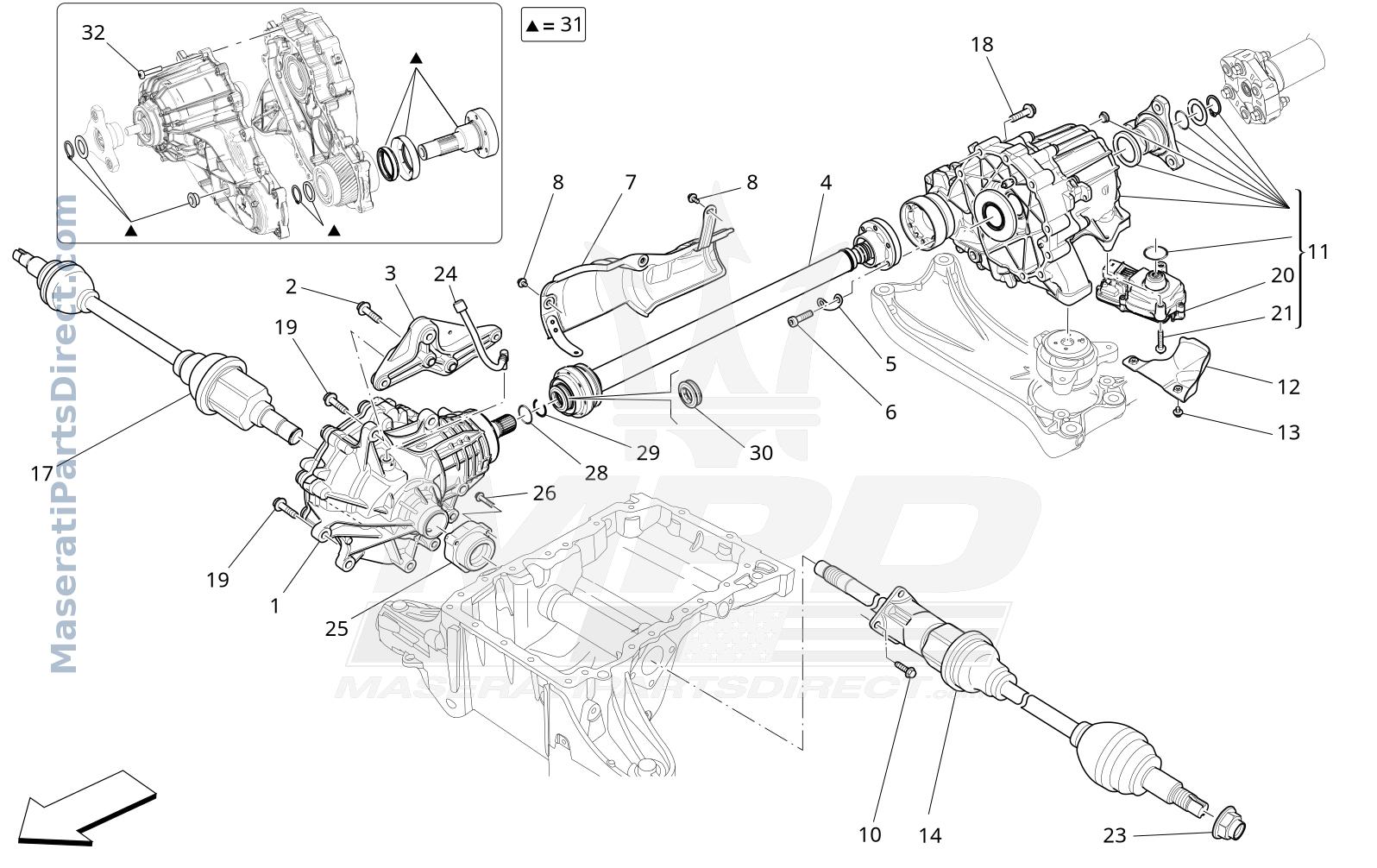

03.22 - 2 - FRONT WHEELS TRANSMISSION

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670104057	FRONT DIFFERENTIAL	$1,628.17 Order
2	14307834	SCREW	$21.72 Order
2	13029034	SCREW	$0.00 Order
2	14306534	SCREW	$25.23 Order
3	809761	BRACKET	$0.00 Order
4	670103912	FRONT DRIVE SHAFT	$1,871.48 Order
4	670107695	FRONT DRIVE SHAFT	$1,813.52 Order
5	670003772	PLATE	$10.40 Order
6	675000583	SCREW	$9.73 Order
7	670152631	HEAT SHIELD	$162.05 Order
8	675000102	SCREWM6X14	$13.28 Order
10	675000384	SCREWM10X25	$11.55 Order
11	670152726	ALL WHEEL DRIVE TRANSFER CASE	$4,423.09 Order
13	675000102	SCREWM6X14	$13.28 Order
14	670107945	LH AXLE SHAFT ASSEMBLY	$1,816.99 Order
17	670107944	RH AXLE SHAFT ASSEMBLY	$1,795.72 Order
18	675000386	SCREWM10X60	$8.00 Order
19	675000385	SCREWM10X40	$9.72 Order
20	670105823	POWER TAKEOFF CONTROL UNIT	$2,041.15 Order
21	673009049	SCREW	$0.00 Order
23	675000138	NUT	$19.15 Order
24	809763	VENT PIPE	$0.00 Order
26	46328688	SCREW	$12.98 Order
28	673008007	O.R. GASKET	$12.41 Order
29	673008008	LOCK RING	$21.72 Order
31	673016820	TRANSFER CASE FLANGE KIT	$408.24 Order
32	673016821	TRANSFER CASE FIXING KIT	$152.13 Order
