| Ref | Part Number | Description | Price | Qty | |
|---|---|---|---|---|---|
| 2 | 299481 | TRANSMISSION CHAIN |
$193.42
Order
|
|
|
| 3 |
276589
Replaced by: #323476
|
LH FIXED SLIDING BLOCK |
$0.00
Order
|
|
|
| 3 | 323476 | LH FIXED SLIDING BLOCK |
$76.54
Order
|
|
|
| 4 |
276588
Replaced by: #323474
|
RH FIXED SLIDING BLOCK |
$0.00
Order
|
|
|
| 4 | 323474 | RH FIXED SLIDING BLOCK |
$91.56
Order
|
|
|
| 5 | 299779 | SCREWM6X30 |
$9.73
Order
|
|
|
| 6 | 299883 | SCREWM6X16 |
$9.73
Order
|
|
|
| 7 |
295221
Replaced by: #323475
|
LH MOBILE SLIDING BLOCK |
$0.00
Order
|
|
|
| 7 | 323475 | LH MOBILE SLIDING BLOCK |
$63.95
Order
|
|
|
| 8 | 216292 | GASKET |
$17.26
Order
|
|
|
| 9 | 339329 | HYDRAULIC TIGHTENER |
$162.62
Order
|
|
|
| 10 |
276584
Replaced by: #323473
|
RH MOBILE SLIDING BLOCK |
$0.00
In Stock
|
|
|
| 10 | 323473 | RH MOBILE SLIDING BLOCK |
$85.05
In Stock
|
|
|
| 11 | 276581 | FIXED SLIDING BLOCK |
$37.72
Order
|
|
|
| 12 | 339327 | RH HYDRAULIC TENSIONER |
$151.60
Order
|
|
|
| 13 |
276587
Replaced by: #339038
|
LH HYDRAULIC TENSIONER |
$0.00
Order
|
|
|
| 13 |
295222
Replaced by: #339038
|
LH HYDRAULIC TENSIONER |
$0.00
Order
|
|
|
| 13 | 339038 | LH HYDRAULIC TENSIONER |
$313.71
Order
|
|
|
| 14 | 276590 | TIMING CHAIN |
$164.32
Order
|
|
|
| 15 | 299671 | ENGINE SHAFT TOOTHED WHEEL |
$719.80
Order
|
|
|
| 16 | 304376 | SCREWM8X75 |
$21.03
Order
|
|
|
| 17 | 299501 | TRANSMISSION TOOTHED WHEEL |
$645.03
Order
|
|
|
| 18 | 187742 | ROLLER CAGE |
$40.38
Order
|
|
|
| 19 | 310102 | DIAMOND WASHER |
$42.61
Order
|
|
|
| 20 | 299140 | SUPPORT |
$191.09
Order
|
|
|
| 24 | 291771 | SCREWM6X45 |
$23.34
Order
|
|
|
| 25 | 14305821 | SCREWM6X40 |
$8.00
Order
|
|
|
| 26 |
781822
Replaced by: #910507
|
FRONT COVER ASSEMBLY |
$0.00
Order
|
|
|
| 26 |
321255
Replaced by: #910507
|
FRONT COVER ASSEMBLYCROSSOVER IN REF.30 NOT INCLUDED, PLEASE ORDER SEPARATELY WITH PN 326846. FOR ENGINE SERIAL NUMBER < 441894, PLEASE ORDER ALSO PN 670001322 |
$0.00
Order
|
|
|
| 26 |
878658
Replaced by: #910507
|
FRONT COVER ASSEMBLYCROSSOVER IN REF.30 NOT INCLUDED, PLEASE ORDER SEPARATELY WITH PN 326846. FOR ENGINE SERIAL NUMBER < 441894, PLEASE ORDER ALSO PN 670001322 |
$0.00
Order
|
|
|
| 26 | 910507 | FRONT COVER ASSEMBLYCROSSOVER IN REF.30 INCLUDED. FOR ENGINE SERIAL NUMBER INCLUDED BETWEEN 441894 AND 473146 RANGE, PLEASE ORDER ALSO PN 670031951 |
$2,303.44
Order
|
|
|
| 27 | - | BUSHINGTEMPORARILY UNAVAILABLE , ORDER P/N 299667 |
$0.00
Order
|
|
|
| 28 | 300452 | STUD |
$22.41
Order
|
|
|
| 29 | 275339 | GASKET |
$52.81
In Stock
|
|
|
| 30 | 326846 | CPL. CROSSOVERPLASTIC - NOT INCLUDED WITH CPL TIMING COVER 321255 AND 878658, PLEASE ORDER SEPARATELY |
$0.00
Order
|
|
|
| 30 | 291773 | CPL. CROSSOVERALUMINUM - INCLUDED WITH THE TIMING COVER |
$990.16
Order
|
|
|
| 30 | 291773 | CPL. CROSSOVERALUMINUM - INCLUDED WITH THE TIMING COVER |
$990.16
Order
|
|
|
| 30 | 291773 | CPL. CROSSOVERALUMINUM - INCLUDED WITH THE TIMING COVER. IF IN REPLACEMENT OF THE PLASTIC CROSSOVER ALSO ORDER THE SCREWS 32-33 AND THE GASKET 34 |
$990.16
Order
|
|
|
| 31 | 673010776 | GASKET KIT |
$67.91
In Stock
|
|
|
| 32 | 231620 | SCREWM6X25INCLUDED AND VALID ONLY WITH PN 326846 (PLASTIC CROSSOVER) |
$5.58
In Stock
|
|
|
| 32 | 291776 | SCREWM6X25NOT INCLUDED AND VALID ONLY FOR THE CROSSOVER IN ALUMINUM P/N 291773 |
$11.10
Order
|
|
|
| 33 | 231624 | SCREWM6X45INCLUDED AND VALID ONLY WITH PN 326846 (PLASTIC CROSSOVER) |
$8.28
Order
|
|
|
| 33 | 291771 | SCREWM6X45NOT INCLUDED AND VALID ONLY FOR THE CROSSOVER IN ALUMINUM P/N 291773 |
$23.34
Order
|
|
|
| 34 | - | GASKETCANNOT BE ORDERED SEPARATELY, INCLUDED IN PN 326846 (PLASTIC CROSSOVER) |
$0.00
Order
|
|
|
| 34 | 280912 | GASKETONLY FOR THE CROSSOVER IN ALUMINUM P/N 291773 - NOT INCLUDED, ORDER SEPARATELY |
$41.36
In Stock
|
|

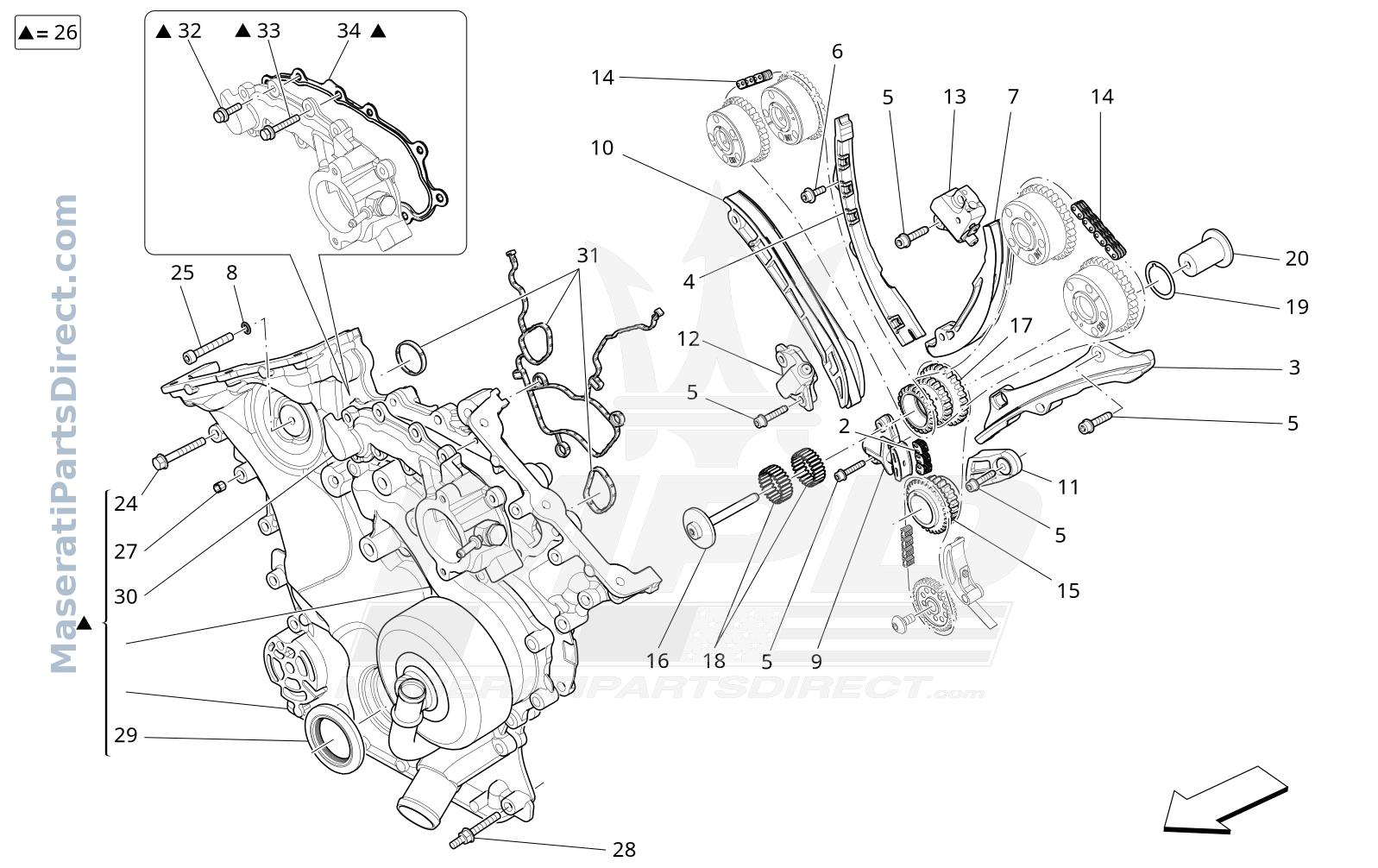

| SVG Path | Le2021-01-24-2-timing-4wd350hp.svg |
|---|---|
| SVG Width | 798.800000 |
| SVG Height | 503.400000 |
