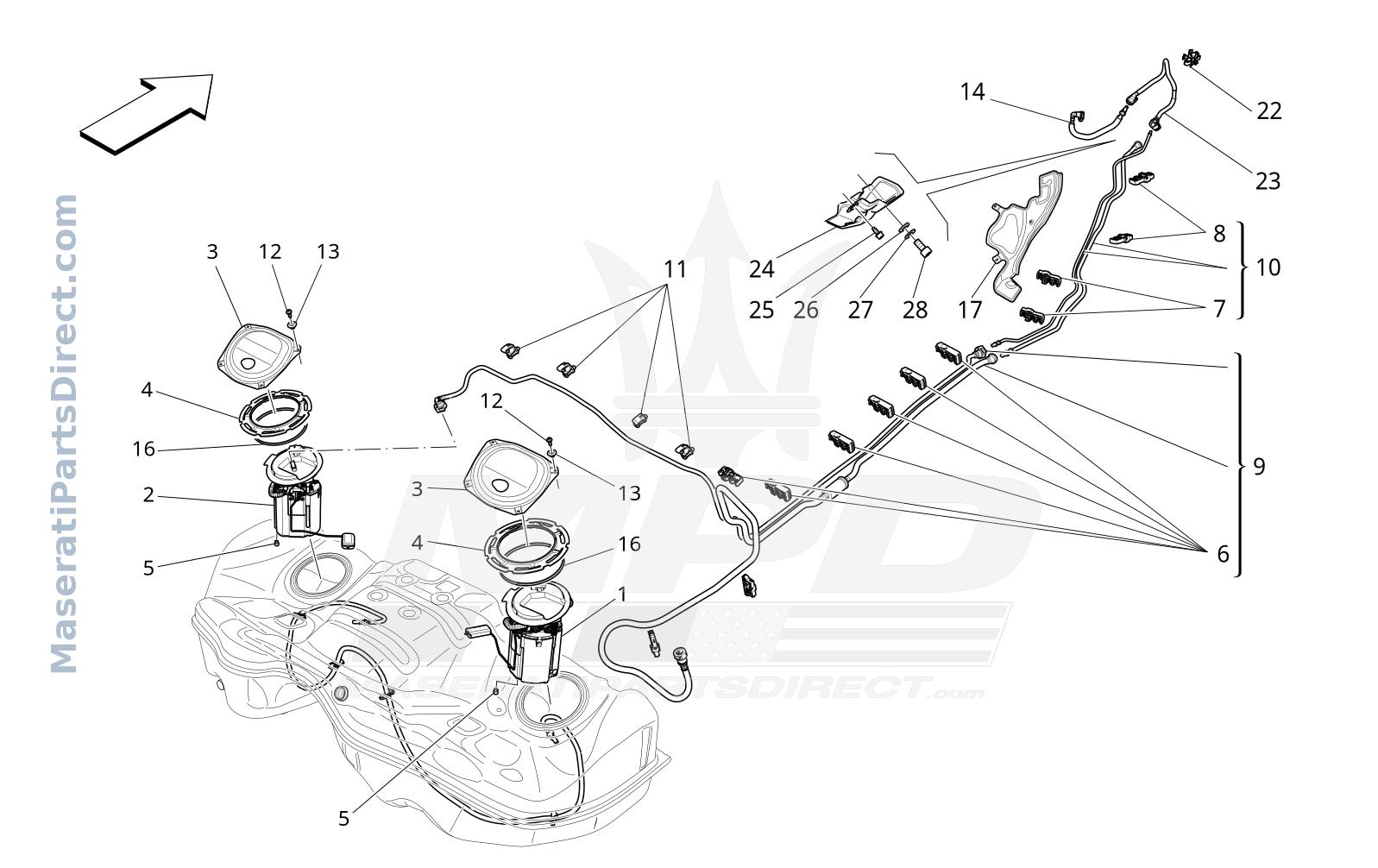

01.43 - 11 - FUEL PUMPS AND CONNECTION LINES

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670003733	FUEL LEVEL GAUGE RACK	$458.93 Order
2	670035006 Replaced by: #670178911.0	LH FUEL PUMP	$0.00 Order
2	670178911	LH FUEL PUMP	$831.38 Order
3	670003258	INSPECTION COVER	$51.35 Order
4	670001397	RING NUT	$72.45 Order
5	670009292	DAMPER	$13.28 Order
6	670033279	CLIP	$12.71 Order
9	670105399	UNDERFLOOR FUEL PIPES	$455.85 Order
10	670103707	FRONT UNDERFLOOR FUEL PIPES	$355.93 Order
11	670005082	CLIP	$11.52 Order
12	675000465	SCREWM 5x12	$6.21 Order
13	675000452	BLOCK	$6.93 Order
14	670108532	ENGINE COMPARTMENT FUEL PIPES	$42.71 Order
16	670001398	GASKET	$39.45 In Stock
17	custom	FRONT FUEL PIPE GUARD	$0.00 Order
22	670100118	CLIP	$13.28 Order
23	670105401	COMPLETE FUEL DELIVERY TUBE	$94.83 Order
24	670030163	FRONT FUEL PIPE GUARD	$37.60 Order
25	675000173	SCREWM6X16	$10.40 Order
28	675000796	SCREW	$0.00 Order
