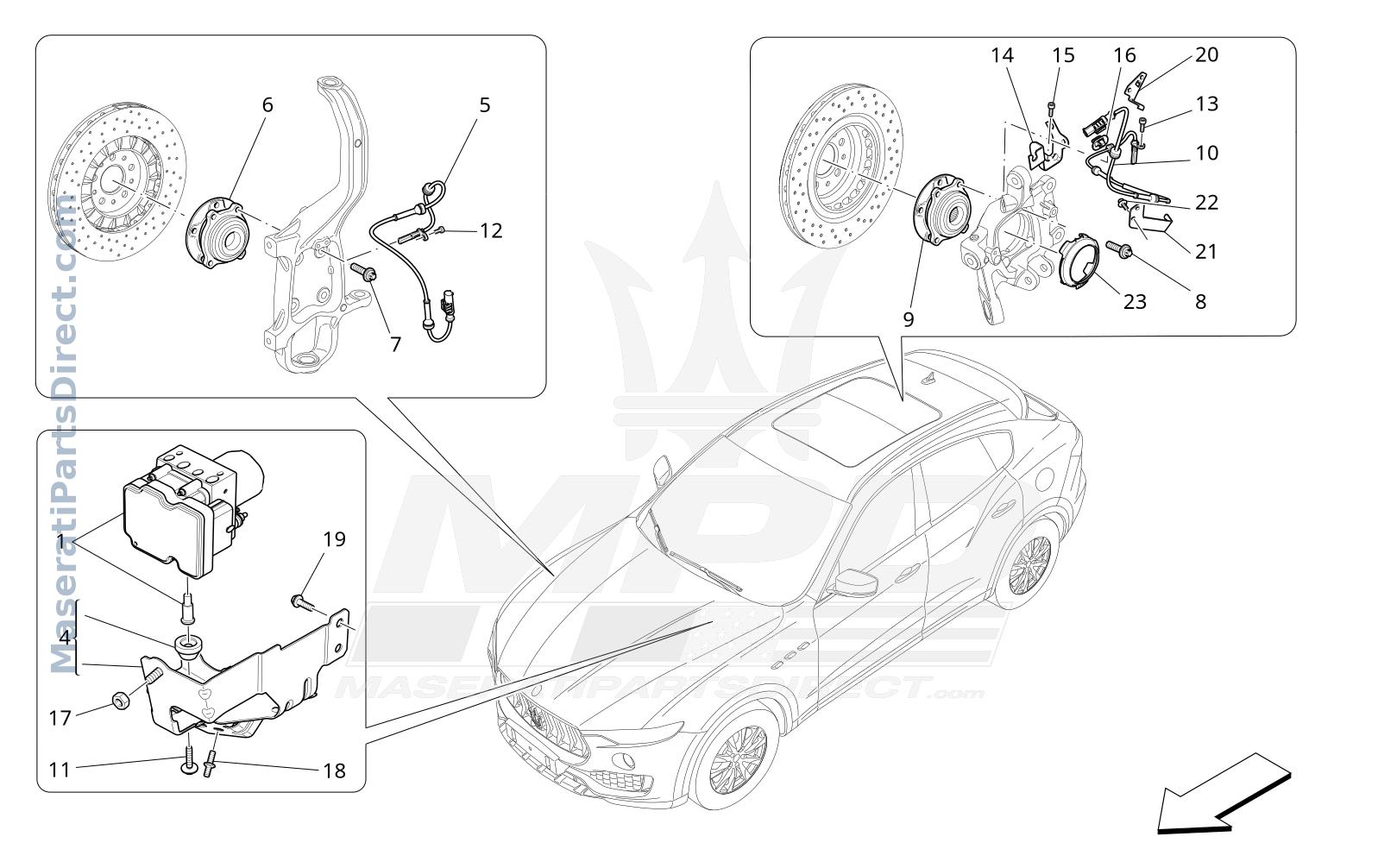

04.90 - 1 - BRAKING CONTROL SYSTEMS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673010399	ABS/ASR HYDRAULIC UNIT	$3,520.02 Order
4	670104779	ABS/ASR HYDRAULIC GROUP FIXING BRACKET	$103.96 Order
5	670037273	FRONT ABS SENSOR	$124.70 Order
6	670034381	WHEEL BEARING ASSEMBLY	$423.97 Order
7	670035429	SCREW	$10.40 Order
8	670032032	SCREW	$11.95 Order
9	670103668	WHEEL BEARING ASSEMBLY	$297.54 Order
10	670037513	REAR ABS SENSOR	$128.68 Order
12	675000662	SCREW	$4.86 Order
13	675000662	SCREW	$4.86 Order
14	670100063	LH BRACKET	$21.93 Order
14	670100064	RH BRACKET	$21.93 Order
15	675000662	SCREW	$4.86 Order
16	675000355	CLIP	$8.64 Order
17	14059314	NUTM8	$11.10 Order
18	675000430	SCREW	$11.95 Order
19	675000387	SCREW	$11.95 Order
20	670036889	LH ABS CABLE BRACKET	$80.35 Order
20	670036875	RH ABS CABLE BRACKET	$79.81 Order
21	670100247	LH BRACKET	$16.17 Order
21	670100246	RH BRACKET	$16.17 Order
22	675000662	SCREW	$4.86 Order
23	670155018	SHIELD	$16.07 Order
