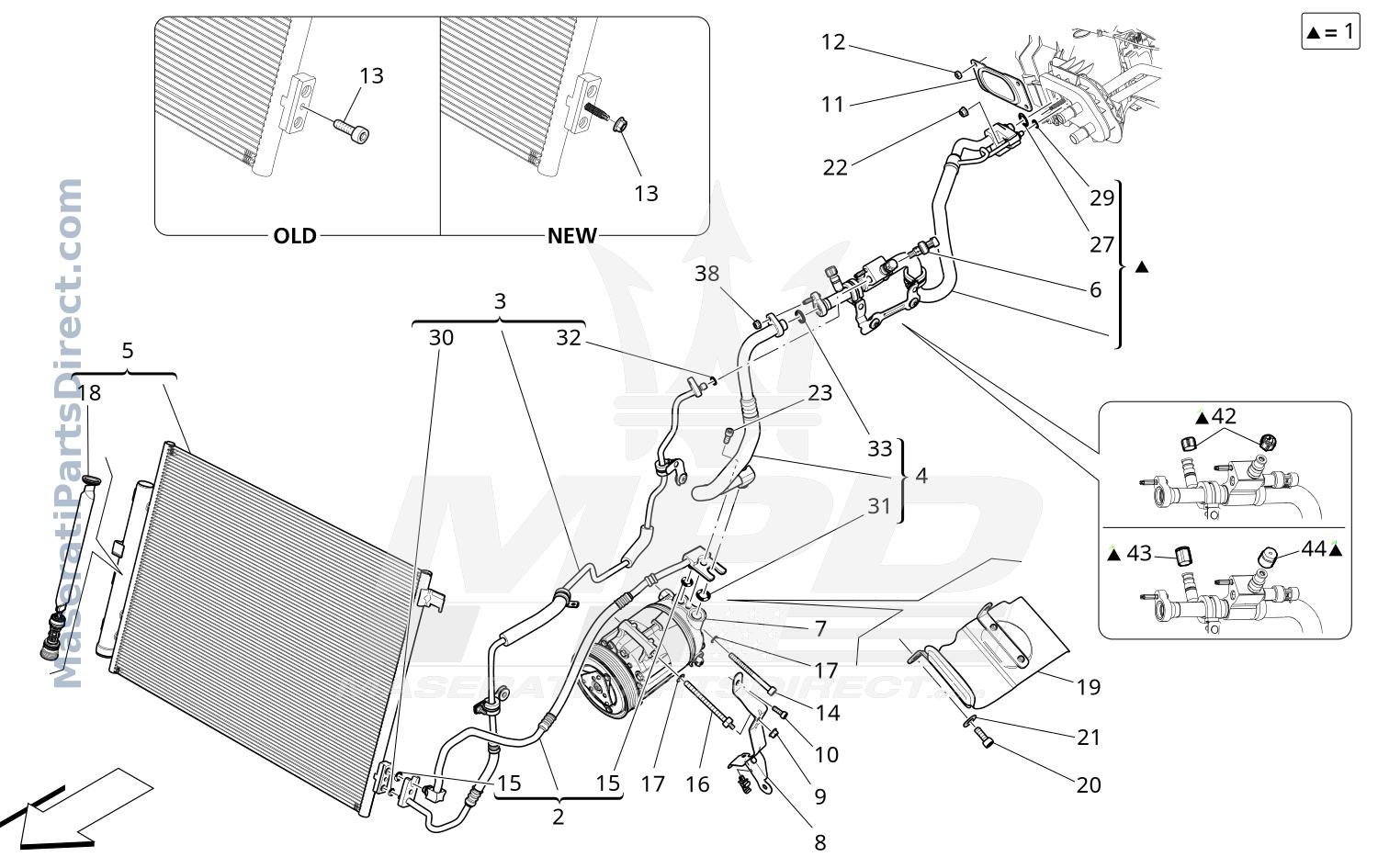

08.40 - 1 - A/C UNIT: ENGINE COMPARTMENT DEVICES

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670038664	PIPE FROM EVAPOURATOR TO UNION	$442.03 Order
2	670104392	PIPE A.C. - COMPRESSOR	$293.02 Order
3	670003216	PIPE BETWEEN CONDENSER AND JUNCTION	$183.41 Order
4	670104394	PIPE FROM COMPRESSOR TO UNION	$300.55 Order
5	670009820	A.C CONDENSER	$1,168.22 Order
6	670038668	PRESSOSTAT	$90.12 In Stock
7	308715 Replaced by: #954109	A.C. COMPRESSOR	$0.00 Order
7	764375 Replaced by: #954109	A.C. COMPRESSOR	$0.00 Order
7	954109	A.C. COMPRESSOR	$1,286.06 Order
8	819174	BRACKET	$0.00 Order
9	14059211	NUTM6	$6.21 Order
10	675000314	SCREW	$9.17 Order
11	670005087	PLUG	$56.78 Order
12	675000315	NUT	$11.52 Order
13	675000456	SCREWM8X25	$23.10 Order
14	14307224	SCREW	$10.40 Order
15	675000122	1/2" SEAL	$14.56 In Stock
16	286687	STUD	$100.76 Order
17	11193874	WASHERD.8.4-16X1.4	$5.58 Order
18	673000010	DEHYDRATOR FILTER KIT	$286.84 $243.81 In Stock
19	670156734	HEAT SHIELD	$0.00 Order
20	14305224	SCREWM6X16	$7.65 Order
21	11197774	WASHERD.6.4-12X1.2	$9.20 Order
22	675000328	NUT	$9.24 Order
23	675000249	SCREW	$11.52 Order
27	675000123	3/4" SEAL	$21.52 In Stock
29	675000121	3/8" SEAL	$11.95 In Stock
30	675000121	3/8" SEAL	$11.95 In Stock
31	675000123	3/4" SEAL	$21.52 In Stock
32	675000119	O.R. GASKET6,8x1,87	$11.55 Order
33	675000306	O.R. GASKET13,6x2,43	$9.84 Order
38	675000315	NUT	$11.52 Order
42	673009426	PLUG	$82.51 Order
