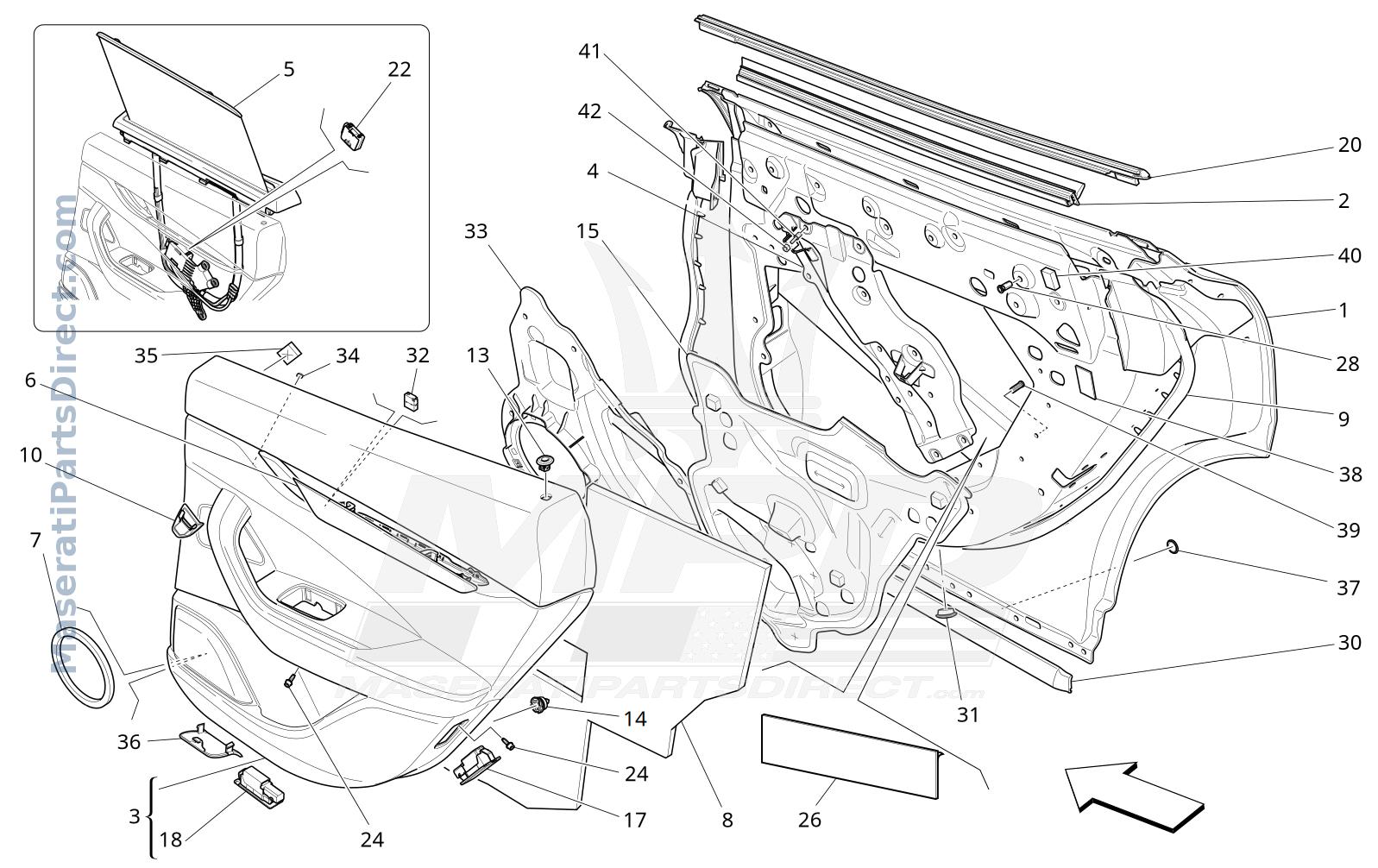

09.32 - 2 - REAR DOORS: TRIM PANELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673009992	LH REAR DOOR ASSEMBLY	$3,194.89 Order
1	673009991	RH REAR DOOR ASSEMBLY	$3,194.89 Order
2	670035882 Replaced by: #670307702	LH REAR DOOR GLASS SCRAPER GASKET	$272.99 Order
2	670307702	LH REAR DOOR GLASS SCRAPER GASKET	$0.00 Order
2	670035881	RH REAR DOOR GLASS SCRAPER GASKET	$272.99 Order
3	custom	REAR LH DOOR PANEL ASSEMBLY	$0.00 Order
3	custom	REAR RH DOOR PANEL ASSEMBLY	$0.00 Order
4	670032899	LH REAR DOOR CENTRAL REINFORCEMENT	$212.06 Order
4	670032898	RH REAR DOOR CENTRAL REINFORCEMENT	$212.06 Order
5	custom	REAR LH SUNSHADE	$0.00 Order
5	custom	REAR LH SUNSHADE	$0.00 Order
6	custom	LH DOOR PANEL INTERNAL TRIM	$0.00 Order
6	custom	RH DOOR PANEL INTERNAL TRIM	$0.00 Order
7	673005973	ADHESIVE GASKET	$16.45 Order
8	673005972	SOUNDPROOFING ELEMENT	$114.06 Order
9	670102489 Replaced by: #670307712	LH REAR DOOR GASKET	$0.00 Order
9	670307712	LH REAR DOOR GASKET	$781.52 Order
9	670102488 Replaced by: #670307711	RH REAR DOOR GASKET	$0.00 Order
9	670307711	RH REAR DOOR GASKET	$781.52 Order
10	custom	LH HANDLE PLATE	$0.00 Order
10	custom	LH HANDLE PLATE	$0.00 Order
13	673005970	BUSHING	$21.35 Order
14	670106049 Replaced by: #670219478	FASTENING PIN	$9.72 $8.26 Order
14	670219478	FASTENING PIN	$9.24 Order
15	670032894	LH REAR DOOR WATER GUARD	$62.23 Order
15	670032895	RH REAR DOOR WATER GUARD	$66.89 Order
17	670106486	LH REFLECTOR	$26.56 Order
17	670106485	RH REFLECTOR	$25.40 Order
18	675000265	UNDER DOOR LAMP	$11.70 Order
20	custom	LH REAR DOOR GLASS SCRAPER GASKET	$0.00 Order
20	custom	RH REAR DOOR GLASS SCRAPER GASKET	$0.00 Order
22	673003891	REAR DOOR SUNSHADE ECU	$407.60 Order
24	675000432	SCREWM6X20	$12.30 Order
26	670034380	SOUNDPROOFING ELEMENT	$13.28 Order
28	670005149	RIVET	$10.62 Order
30	670033839 Replaced by: #670307707	REAR L.H. DUST PROTECTION GASKET	$0.00 Order
30	670307707	REAR L.H. DUST PROTECTION GASKET	$111.57 Order
30	670033840 Replaced by: #670307708	REAR R.H. DUST PROTECTION GASKET	$0.00 Order
30	670307708	REAR R.H. DUST PROTECTION GASKET	$104.14 Order
31	custom	PLUG	$0.00 Order
32	673005976	LH SWITCH	$71.28 Order
32	673005975	RH SWITCH	$71.28 Order
33	670034353	LH SUPPORT	$117.81 Order
33	670034352	RH SUPPORT	$117.81 Order
34	673005974	BUSHING	$11.55 Order
35	673005979	CENTERING GASKET	$10.40 Order
36	custom	PLUG	$0.00 Order
37	675000762	PLUG	$10.40 Order
38	675000401	FELT	$6.93 $5.89 In Stock
39	670005788	PIN	$13.58 Order
40	670100369	PAD	$23.90 Order
41	670039784	RIVET	$11.08 Order
42	675000095	NUTM6	$8.64 Order
