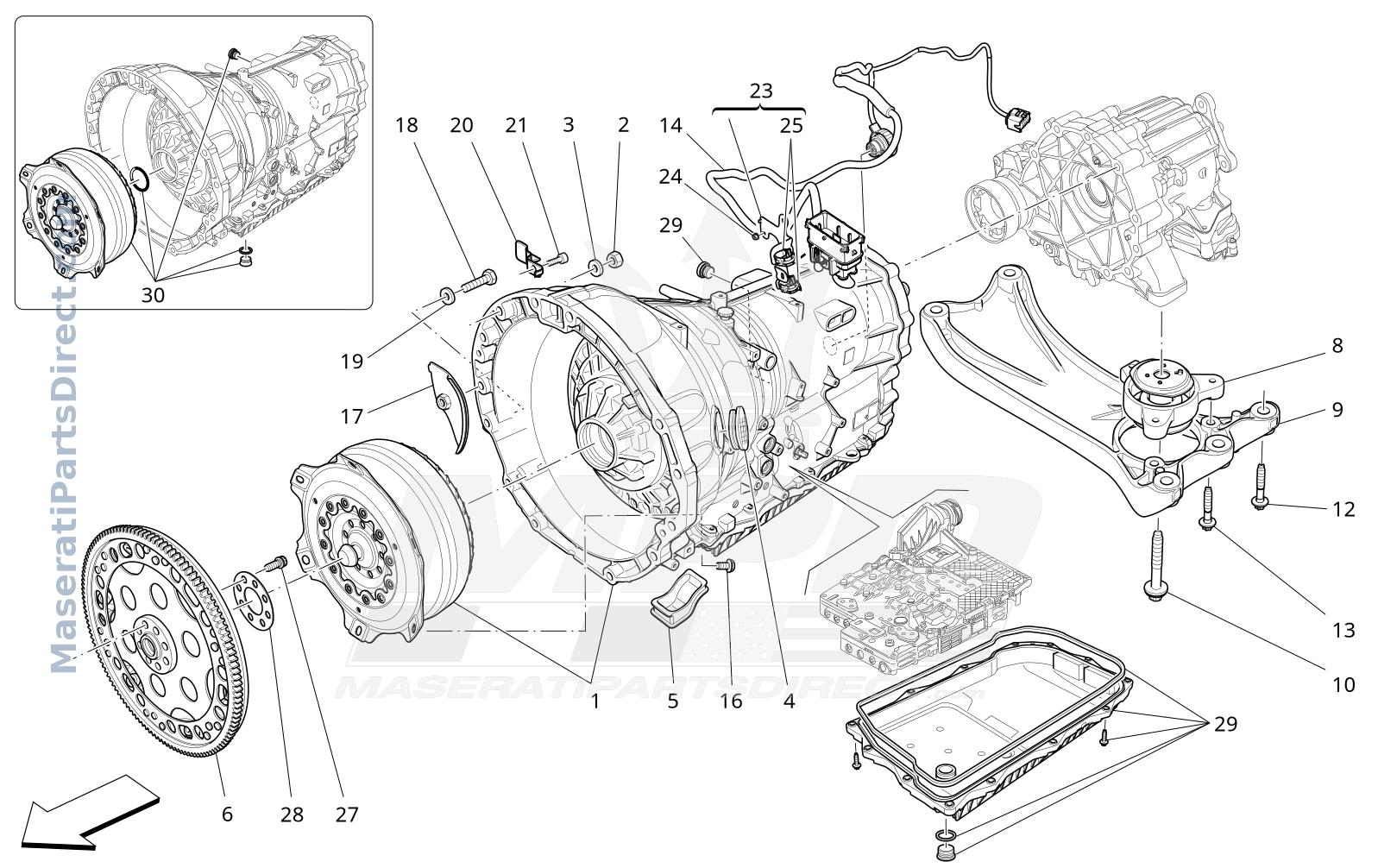

03.10 - 2 - GEARBOX HOUSINGS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670155636	AUTOMATIC GEARBOX ASSEMBLY	$0.00 Order
2	675000184	NUT	$4.68 Order
3	675000098	WASHERD.10.2-22X2	$8.00 Order
4	670003520	SIDE PLUG	$22.52 Order
5	670003521	LOWER PLUG	$20.28 Order
6	670105062	ENGINE FLYWHEEL ASSEMBLY	$0.00 Order
8	670106865	GEARBOX SIDE SUSPENSION BUSHING	$268.02 Order
9	670107736	GEARBOX MOUNTING CROSS MEMBER	$844.95 Order
10	670003988	SCREW	$17.50 Order
12	670035766	SCREW	$11.55 Order
13	670103989	SCREW	$11.52 Order
14	670104386	AUTOMATIC GEARBOX WIRING HARNESS	$335.23 Order
16	670005384	SCREW	$9.20 Order
20	670005079	BRACKET	$18.87 Order
21	675000191	SCREWM6X14	$11.55 Order
23	670035991	BRACKET ASSEMBLY	$34.50 Order
24	675000093	NUTM6	$9.73 Order
25	675000500	CLIP	$0.00 Order
27	670002933	SCREW	$14.00 Order
28	670002257	SHIM	$16.17 Order
29	673005766	OIL SUMP KIT	$1,363.88 Order
30	673011124	CONVERTER	$0.00 Order
