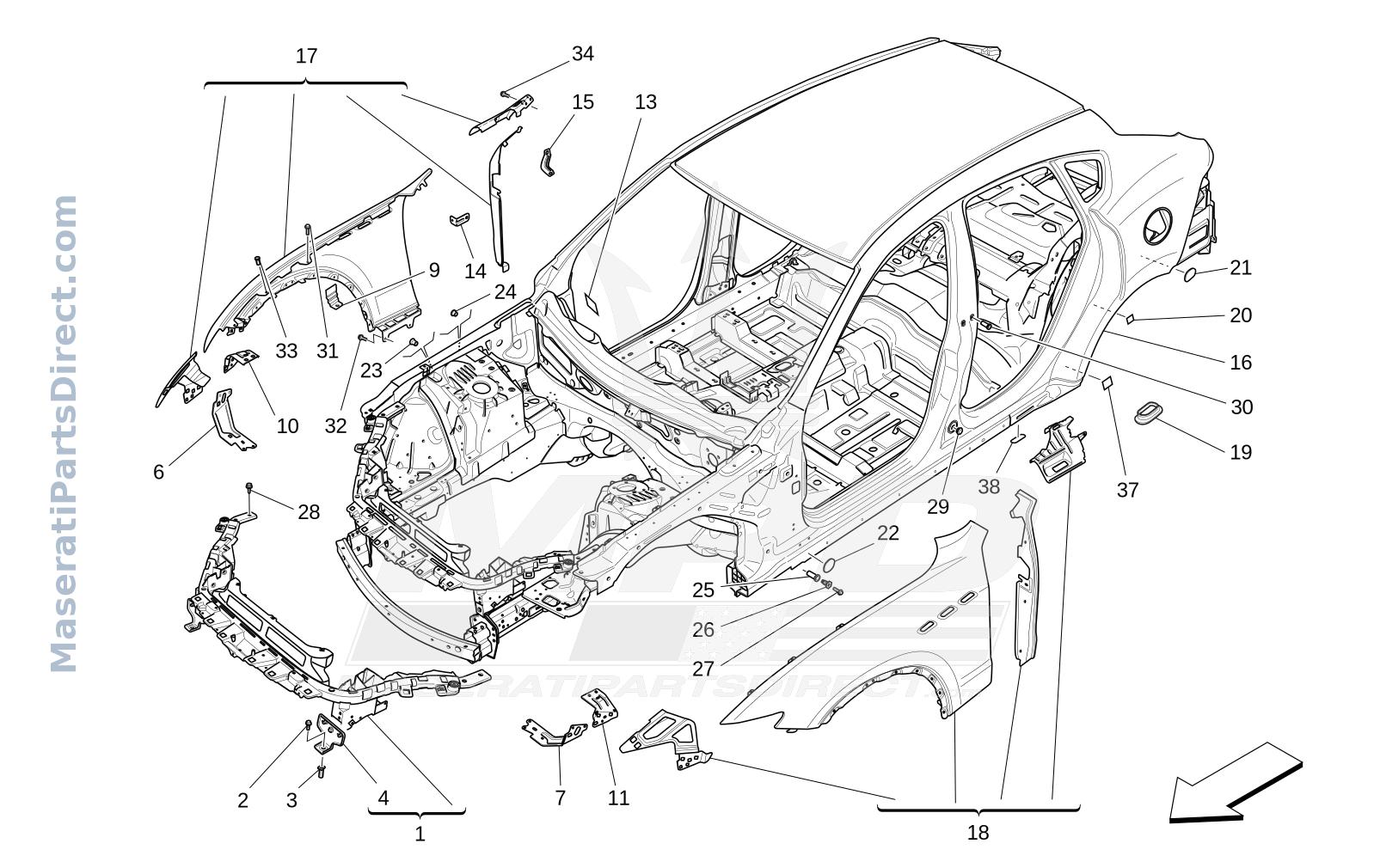

09.00 - 1 - BODYWORK AND FRONT OUTER TRIM PANELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670032664	FRONT CROSS MEMBER ASS.	$1,528.38 Order
2	670037048	SCREW	$13.28 Order
3	670002185	THREADED RIVET	$11.10 Order
4	670034074	BRACKET	$52.38 Order
6	673005621	RH MUDGUARD SUPPORT BRACKET	$37.07 Order
7	673005622	LH MUDGUARD SUPPORT BRACKET	$37.07 Order
9	670034857	INTERMEDIATE BRACKET	$13.58 Order
10	673005623	RH MUDGUARD FRONT LOWER REINFORCEMENT	$78.96 Order
11	673005624	LH MUDGUARD FRONT LOWER REINFORCEMENT	$78.96 Order
13	675000747	PROTECTION	$13.58 Order
14	673005625	MUDGUARD SIDE BRACKET	$0.00 Order
14	670034983	MUDGUARD SIDE BRACKET	$15.89 Order
15	673005702	LH MUDGUARD CENTRAL MOUNTING BRACKET	$49.06 Order
15	673005626	RH MUDGUARD CENTRAL MOUNTING BRACKET	$46.58 Order
16	670213390	COMPLETE BODY SHELL	$0.00 Order
17	673005578	FRONT RH MUDGUARD ASSEMBLY	$1,241.63 Order
18	673005579	FRONT LH MUDGUARD ASSEMBLY	$1,241.63 Order
20	675000743	TESA FASTENER	$11.40 Order
21	670005230	PLUG	$8.28 Order
22	675000744	ADHESIVE FASTENER	$11.40 Order
23	670003669	RIVET	$6.21 Order
24	670005411	RIVET	$5.58 Order
25	670005223	RIVET	$20.48 Order
26	670006065	ADJUSTABLE INSERT	$11.52 Order
27	670005287	SCREW	$6.21 Order
28	670037048	SCREW	$13.28 Order
29	675000244	PLUG	$9.84 Order
30	675000715	RIVET	$7.65 Order
31	675000588	SCREW	$7.65 Order
32	670005287	SCREW	$6.21 Order
33	675000686	RIVET	$6.93 Order
34	675000605	SCREW	$9.20 Order
0	675000748	PLUG	$0.00 Order
0	675000746	CAP	$8.64 Order
37	675000745	ADHESIVE FASTENER	$0.00 Order
38	670036842	PLUG	$6.93 In Stock
