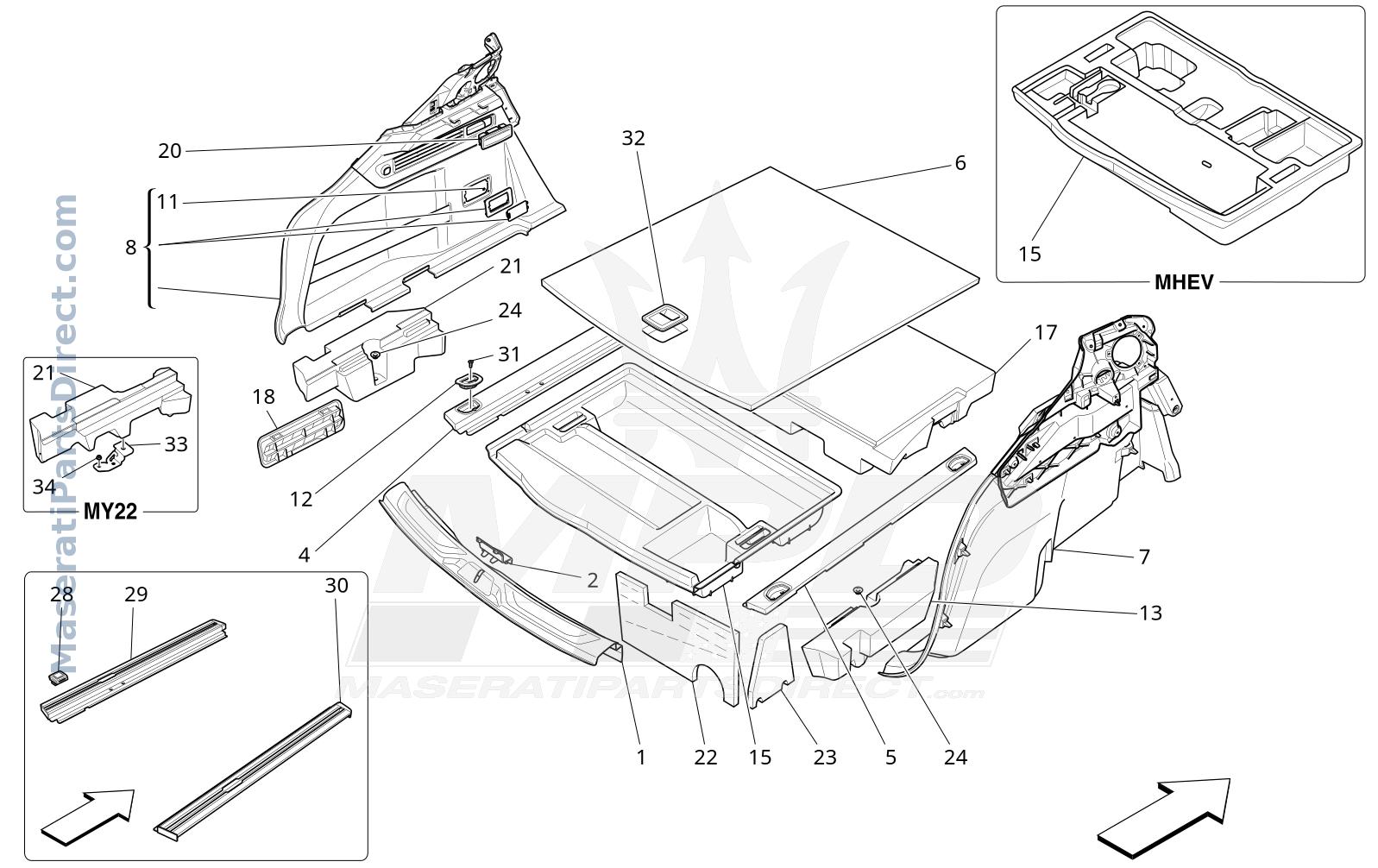

09.61 - 1 - LUGGAGE COMPARTMENT MATS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	PROTECTION COVER	$0.00 Order
2	custom	PLUG	$0.00 Order
4	custom	LH LOAD COMPARTMENT SUPPORT	$0.00 Order
5	custom	RH LOAD COMPARTMENT SUPPORT	$0.00 Order
6	custom	BOOT COMPARTMENT CARPET	$0.00 Order
7	custom	RH SIDE PANEL COVER	$0.00 Order
8	custom	LH SIDE PANEL COVER	$0.00 Order
11	014228076	PLATE	$0.00 Order
12	custom	TRIM PLATE	$0.00 Order
13	670105778	RH SUPPORT	$80.46 Order
15	custom	CONTAINER	$0.00 Order
17	670174727	PAD	$0.00 Order
18	675000231	AIR OUTLET PLATE	$31.08 Order
20	custom	DOMELIGHT	$0.00 Order
21	670174719	LH SUPPORT	$165.00 Order
22	670101463	PAD	$15.89 Order
23	670101462	RH PAD	$47.41 Order
24	675000684	FASTENER BUTTON	$9.73 Order
28	custom	SLIDING HOOK	$0.00 Order
29	custom	LH GUIDE	$0.00 Order
30	custom	RH GUIDE	$0.00 Order
31	custom	SCREW	$0.00 Order
32	673009711	HANDLE	$23.55 Order
