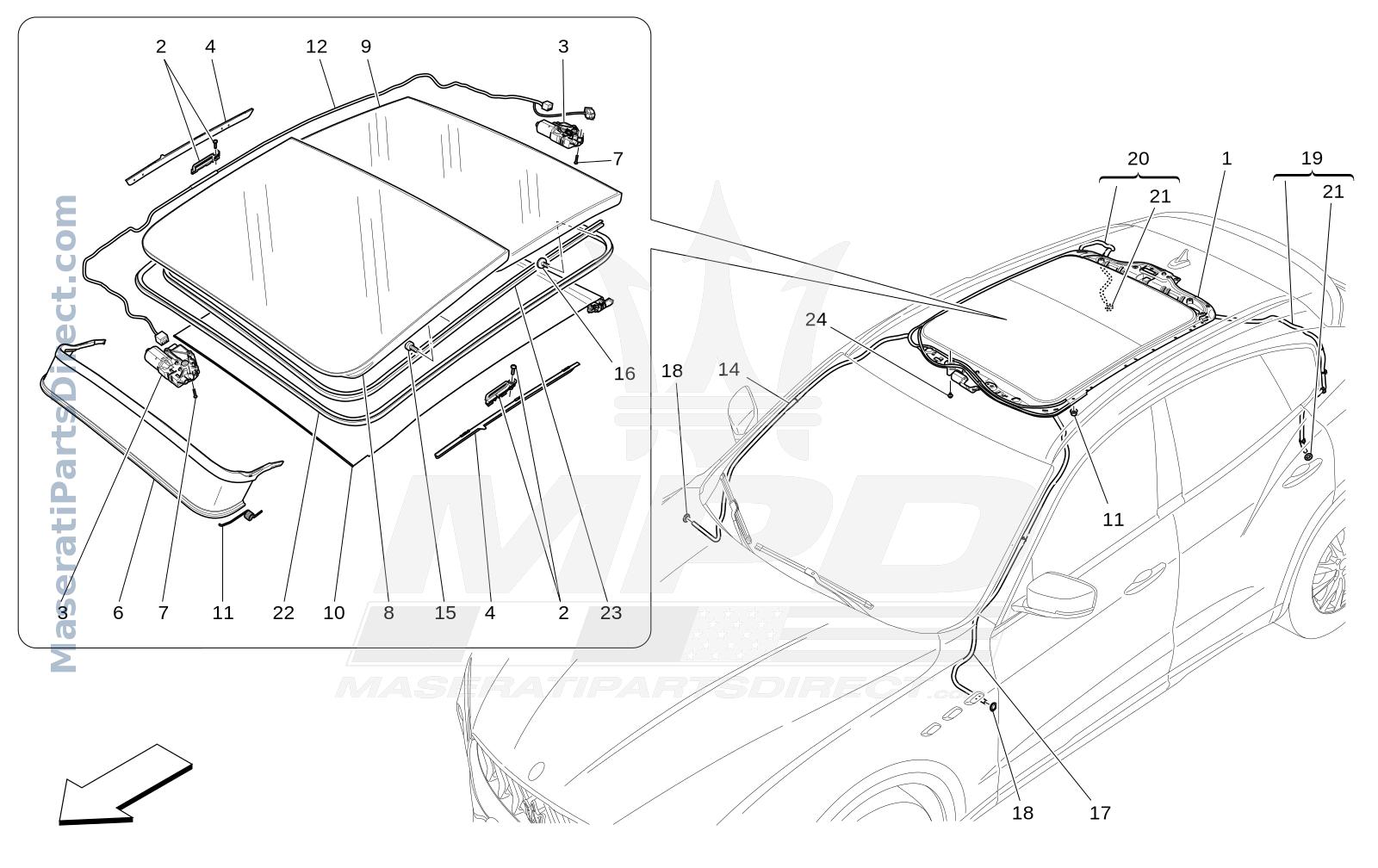

09.71 - 1 - SUNROOF

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	SUNROOF ASSEMBLY	$0.00 Order
1	custom	SUNROOF ASSEMBLY	$0.00 Order
2	673004642	RH-LH DEFLECTOR FIXING PLATE KIT	$93.18 Order
3	673004629	GEAR MOTOR	$789.22 Order
4	673004637	RH-LH MECHANISM GUARDS	$112.93 Order
6	673004636	DEFLECTOR	$433.36 Order
7	673004640	GEARMOTOR FIXING SCREW KIT	$119.72 Order
8	673004631	FRONT SUNROOF GLASS	$701.02 Order
9	673004632 Replaced by: #673015396.0	REAR SUNROOF GLASS	$0.00 Order
9	673015396	REAR SUNROOF GLASS	$619.55 Order
10	673004633	SUNROOF SUNSHADE	$1,203.02 Order
10	673004634	SUNROOF SUNSHADE	$1,049.75 Order
10	673004635	SUNROOF SUNSHADE	$1,095.26 Order
11	673004641	DEFLECTOR FIXING SPRING KIT	$121.46 Order
12	673004630	WIRING HARNESS	$438.54 Order
14	670034608	RH FRONT WATER DRAIN PIPE	$175.10 Order
15	673004638	FRONT GLASS FIXING SCREW KIT	$119.72 Order
16	673004639	REAR GLASS FIXING SCREW KIT	$119.88 Order
17	670034609	LH FRONT WATER DRAIN PIPE	$175.10 Order
18	670031349	PLUG	$10.14 Order
19	670034610	LH REAR WATER DRAIN PIPE	$176.64 Order
20	670034611	RH REAR WATER DRAIN PIPE	$176.64 Order
21	670005386	RUBBER	$25.46 Order
22	670218806	GASKET	$267.70 Order
23	673004628	GASKET	$112.10 Order
24	670036167	SCREW	$0.00 Order
