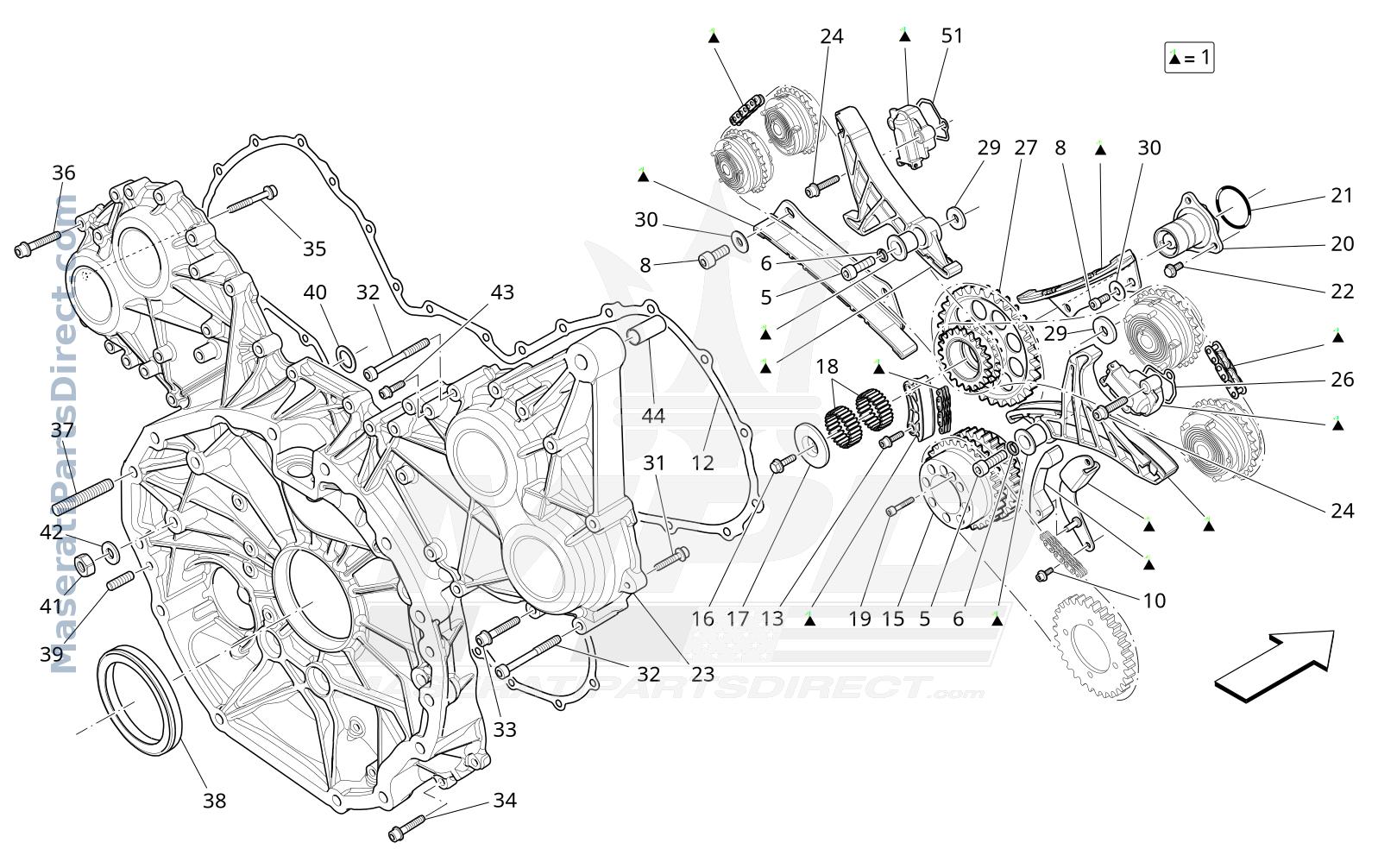

01.24 - 1 - TIMING

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	807534	OIL PUMP AND TIMING SYSTEM ASSEMBLY	$1,460.34 Order
6	284900	WASHERD.8.1-12.7X2	$8.64 Order
8	14302821	SCREWM8X18	$8.64 Order
12	312860	GASKET	$299.15 Order
13	282396	SCREWM6X22	$11.40 Order
15	286222	ENGINE SHAFT TOOTHED WHEEL	$940.04 Order
16	284898	SCREWM6X16	$20.77 Order
17	304699	TRANSMISSION TOOTHED WHEEL SHOULDER	$0.00 Order
18	267808	ROLLER CAGE	$49.90 Order
19	245914	SCREWM5X20	$8.64 Order
20	322199	SUPPORT	$0.00 Order
21	154191	GASKET	$11.55 Order
22	284898	SCREWM6X16	$20.77 Order
23	313054	REAR TIMING COVER	$0.00 Order
23	343364	REAR TIMING COVER	$1,483.52 Order
24	282398	SCREWM6X30	$13.58 Order
26	322518	GASKET	$20.48 Order
27	287000	TRANSMISSION TOOTHED WHEEL	$941.98 Order
29	288341	WASHERD.8.2-22X3.5	$23.79 Order
30	163759	WASHERD.8-20X2	$23.79 Order
31	879489	SCREW	$0.00 Order
32	255494	SCREWM6X55	$25.23 Order
33	231623	SCREWM6X40	$8.64 Order
34	231620	SCREWM6X25	$5.58 In Stock
35	231624	SCREWM6X45	$8.28 Order
36	231622	SCREWM6X35	$8.64 Order
37	13547034	STUD	$46.36 Order
37	13546734	STUD	$18.87 Order
38	240214	GASKET	$133.74 Order
39	10337710	STUD	$16.70 Order
40	281725	GASKET	$11.15 Order
41	133988	NUTM10	$10.40 Order
42	178348	WASHERD.10.2-20X2.4	$11.52 Order
43	231616	SCREWM6X14	$9.20 Order
44	298694	THREADED INSERTM12X1,5X30	$0.00 Order
45	11194374	WASHER	$0.00 Order
51	306440	GASKET	$20.77 Order
