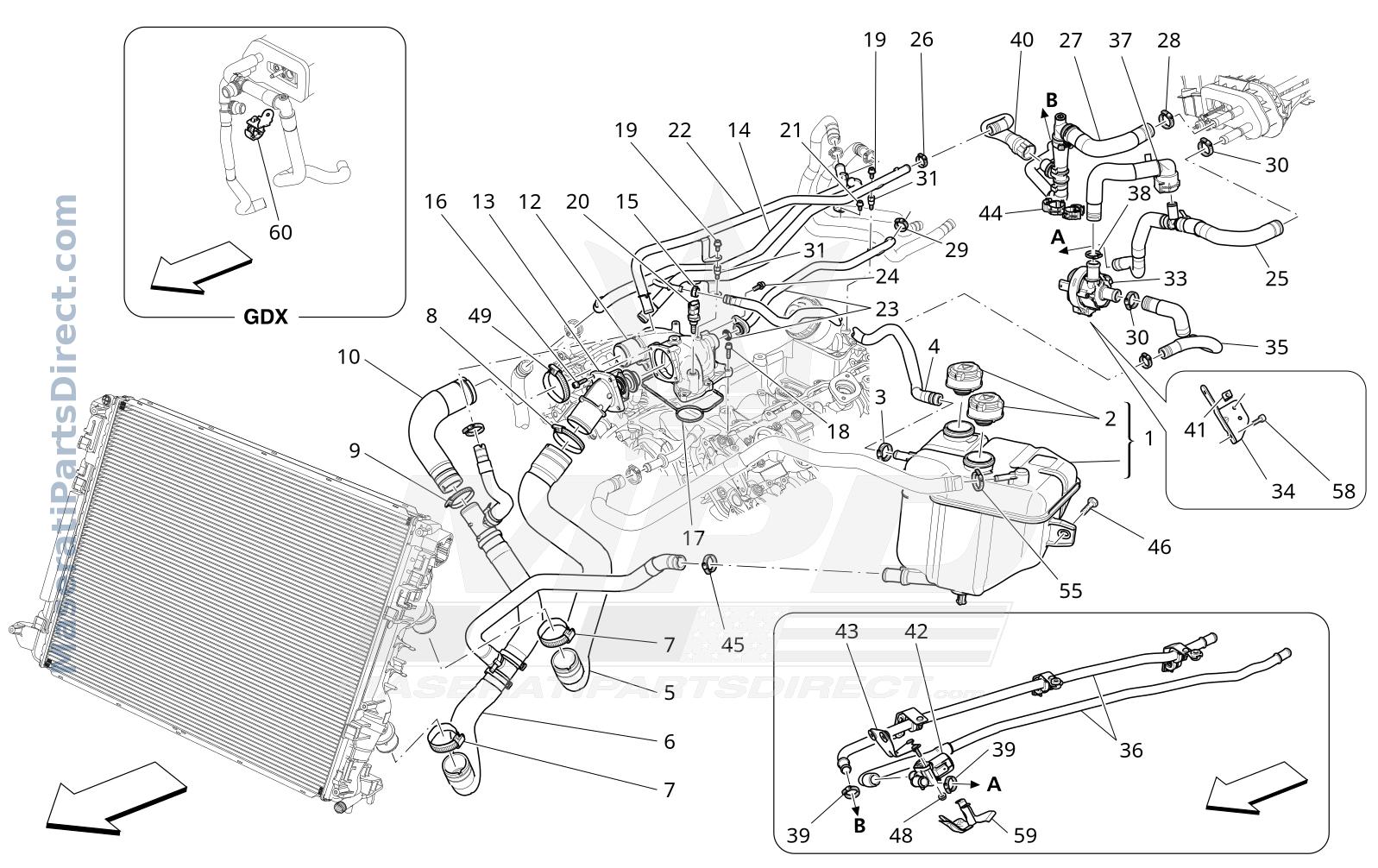

01.71 - 2 - COOLING SYSTEM: NOURICE AND LINES

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670031649	EXPANSION TANK ASSEMBLY	$103.09 Order
2	670003408	TANK PLUG	$23.66 Order
3	675000344	COLLARD.17	$11.52 Order
4	806287	WATER VENT PIPE	$0.00 Order
5	670103770	RADIATOR WATER INLET PIPE	$174.79 Order
6	670103771	WATER SLEEVE	$327.34 Order
7	675000345	SCREW COLLARD.58	$11.52 In Stock
8	675000345	SCREW COLLARD.58	$11.52 In Stock
9	11417670	SCREW COLLAR	$15.65 Order
10	294684	WATER OUTLET SLEEVE	$541.40 Order
12	304372	WATER THERMOSTAT COMPARTMENT	$1,058.98 Order
13	287652	THERMOSTAT COVER WITH PRESSURE GAUGE	$342.26 Order
14	795812	SECONDARY WATER DELIVERY AND RETURN PIPE	$373.69 Order
15	11431090	CLAMP	$11.85 Order
16	231619	SCREWM6X22	$8.64 Order
17	295159	GASKET	$126.14 Order
18	231620	SCREWM6X25	$5.58 In Stock
19	231616	SCREWM6X14	$9.20 Order
20	180137	WATER TEMPERATURE SENSOR	$97.29 Order
21	231616	SCREWM6X14	$9.20 Order
22	768610	WATER RETURN PIPE FROM EXCHANGER	$0.00 Order
23	898985	WATER DELIVERY PIPE TO HEATER	$361.95 Order
24	231617	SCREWM6X18	$8.28 Order
25	670103775	HEATER WATER DELIVERY SLEEVE	$676.60 Order
26	675000319	COLLARD.22,5	$14.28 Order
27	670103777	WATER RETURN SLEEVE FROM HEATER	$426.74 Order
28	670030325	COLLAR	$11.08 Order
29	675000370	COLLARD.19,5	$6.21 Order
30	670030327	COLLAR	$11.08 Order
31	287940	STUD	$45.33 Order
33	670002071	WATER RECYCLING PUMP	$432.47 Order
34	670003713	REINFORCEMENT BRACKET	$23.23 Order
35	670006633	WATER PIPE	$80.44 Order
36	670103855	REAR WATER PIPE	$0.00 Order
37	670103776	HEATER WATER DELIVERY SLEEVE	$0.00 Order
38	675000658	COLLAR	$5.58 Order
39	675000351	COLLARD.30	$11.40 Order
40	670103778	WATER SLEEVE	$86.20 Order
41	670006732	PLATE	$20.28 Order
42	670002070	ON/OFF SOLENOID VALVE	$398.07 Order
43	670106985	SOLENOID VALVE BRACKET	$0.00 Order
44	675000019	RETAINING CLIP	$8.64 Order
45	675000658	COLLAR	$5.58 Order
46	675000088	SCREWM6X22	$10.22 Order
48	675000315	NUT	$11.52 Order
49	675000345	SCREW COLLARD.58	$11.52 In Stock
55	675000373	COLLARD.12,5	$8.28 Order
58	14305224	SCREWM6X16	$7.65 Order
