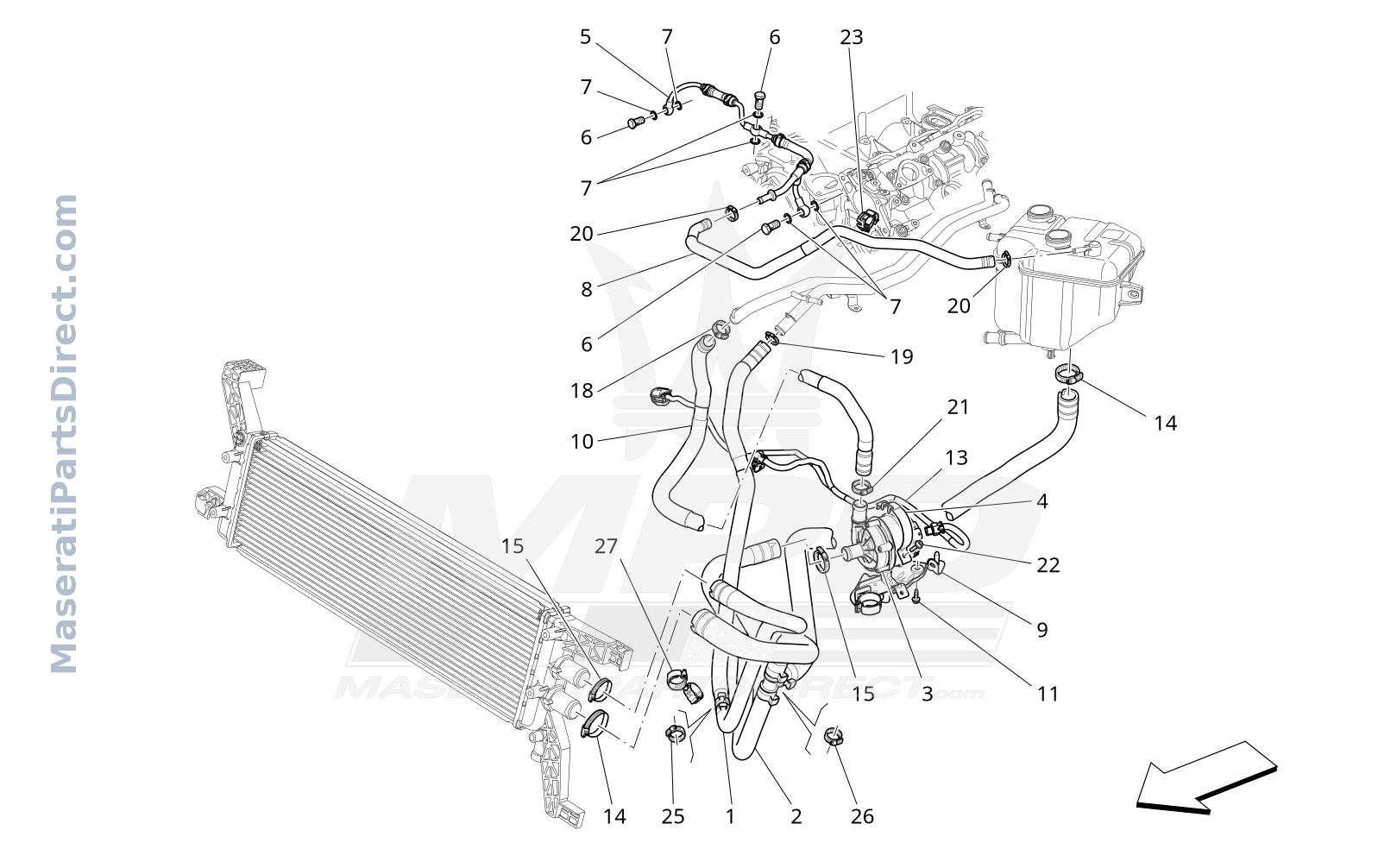

01.71 - 3 - COOLING SYSTEM: NOURICE AND LINES

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670103780	PIPE BETWEEN ENGINE AND SECONDARY RADIATOR	$0.00 Order
2	670103779	PIPE BETWEEN SECONDARY RADIATOR AND PUMP	$243.81 Order
3	670005347	ELECTRIC WATER PUMP	$705.59 Order
4	670008886	CLAMP	$25.67 Order
5	302133	HEAD WATER BREATHER PIPE	$775.19 Order
6	11903811	UNION	$21.93 Order
7	10260960	GASKET	$9.20 Order
8	670103772	VENT PIPE	$39.98 Order
9	670104778	BRACKET	$72.25 Order
10	670103781	WATER DELIVERY PIPE FROM PUMP TO ENGINE	$0.00 Order
11	675000088	SCREWM6X22	$10.22 Order
13	670037865	WATER PUMP CABLE	$225.88 Order
14	675000658	COLLAR	$5.58 Order
15	675000658	COLLAR	$5.58 Order
18	11417670	SCREW COLLAR	$15.65 Order
19	675000370	COLLARD.19,5	$6.21 Order
20	675000373	COLLARD.12,5	$8.28 Order
21	675000372	COLLARD.20,5	$10.14 Order
22	675000364	SCREWM6X14	$9.20 Order
23	675000019	RETAINING CLIP	$8.64 Order
25	675000319	COLLARD.22,5	$14.28 Order
26	675000319	COLLARD.22,5	$14.28 Order
