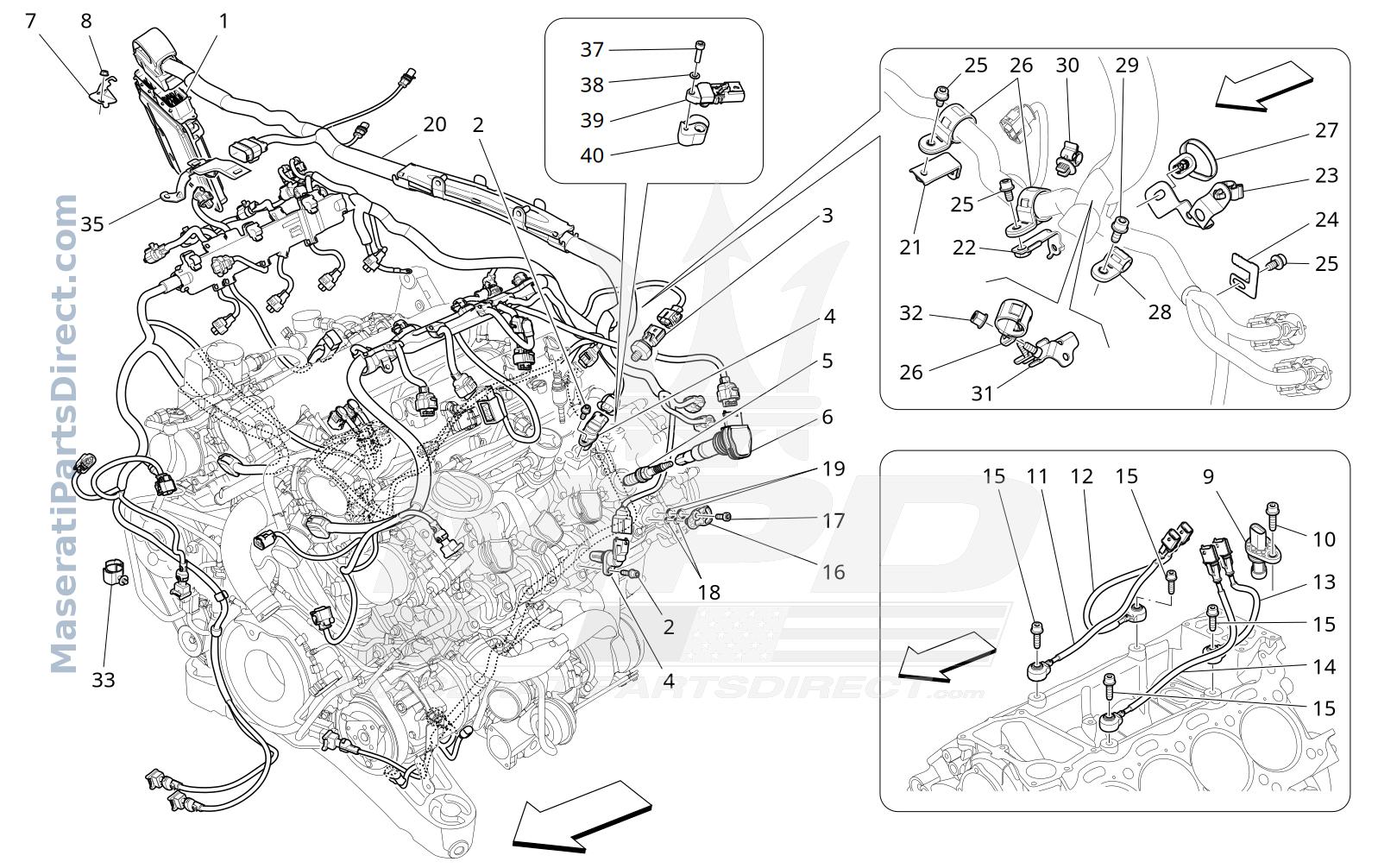

01.90 - 1 - ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670217885	IGNITION CONTROL UNIT	$2,430.86 Order
2	231617	SCREWM6X18	$8.28 Order
3	328660	OIL PRESSURE SENSOR	$112.77 Order
4	224573	TIMING SENSOR	$115.20 Order
5	310235	SPARK PLUG	$33.49 In Stock
6	337712	IGNITION COIL	$245.19 Order
7	670009042	CONTROL UNIT FIXING BRACKET	$34.08 Order
8	14059211	NUTM6	$6.21 Order
9	287273	ANGULAR SPEED SENSOR	$200.46 Order
10	231618	SCREWM6X20	$6.93 Order
11	772990	COMPLETE RH KNOCK SENSOR, CYLINDERS 1-2	$237.88 Order
12	792396	COMPLETE RH KNOCK SENSOR, CYLINDERS 3-4	$239.47 Order
13	792397	COMPLETE LH KNOCK SENSOR, CYLINDERS 5-6	$237.88 Order
14	792398	COMPLETE LH KNOCK SENSOR, CYLINDERS 7-8	$239.47 Order
15	231629	SCREWM8X30	$9.17 In Stock
16	287024	LH PLUG	$50.11 Order
16	287233	RH PLUG	$27.23 Order
17	13026924	SCREW	$11.52 Order
18	14452781	O.R. GASKET	$10.62 Order
19	14453281	O.R. GASKET	$4.18 Order
20	742682	ENGINE INJECTION WIRING HARNESS	$3,612.60 Order
21	260001	BRACKET	$41.18 Order
22	290065	BRACKET	$70.57 Order
23	293624	BRACKET ASSEMBLY	$104.67 Order
24	175856	CONNECTOR FIXING BRACKET	$18.87 Order
25	233600	SCREWM6X12	$9.20 Order
26	244225	CLIP	$21.03 Order
27	10901087	CLAMP	$16.17 Order
28	244218	CLIP	$27.90 Order
29	231616	SCREWM6X14	$9.20 Order
30	288849	CLIP	$112.79 Order
31	295730	BRACKET	$90.66 Order
32	228265	NUT	$11.40 Order
34	670155145	CLIP	$0.00 Order
35	670153079	BRACKET	$104.33 Order
37	14358524	SCREW	$8.64 Order
38	13577724	WASHER	$11.52 Order
39	871810	BLOW-BY PRESSURE SENSOR	$239.77 Order
40	952985	BLOCK	$66.98 Order
