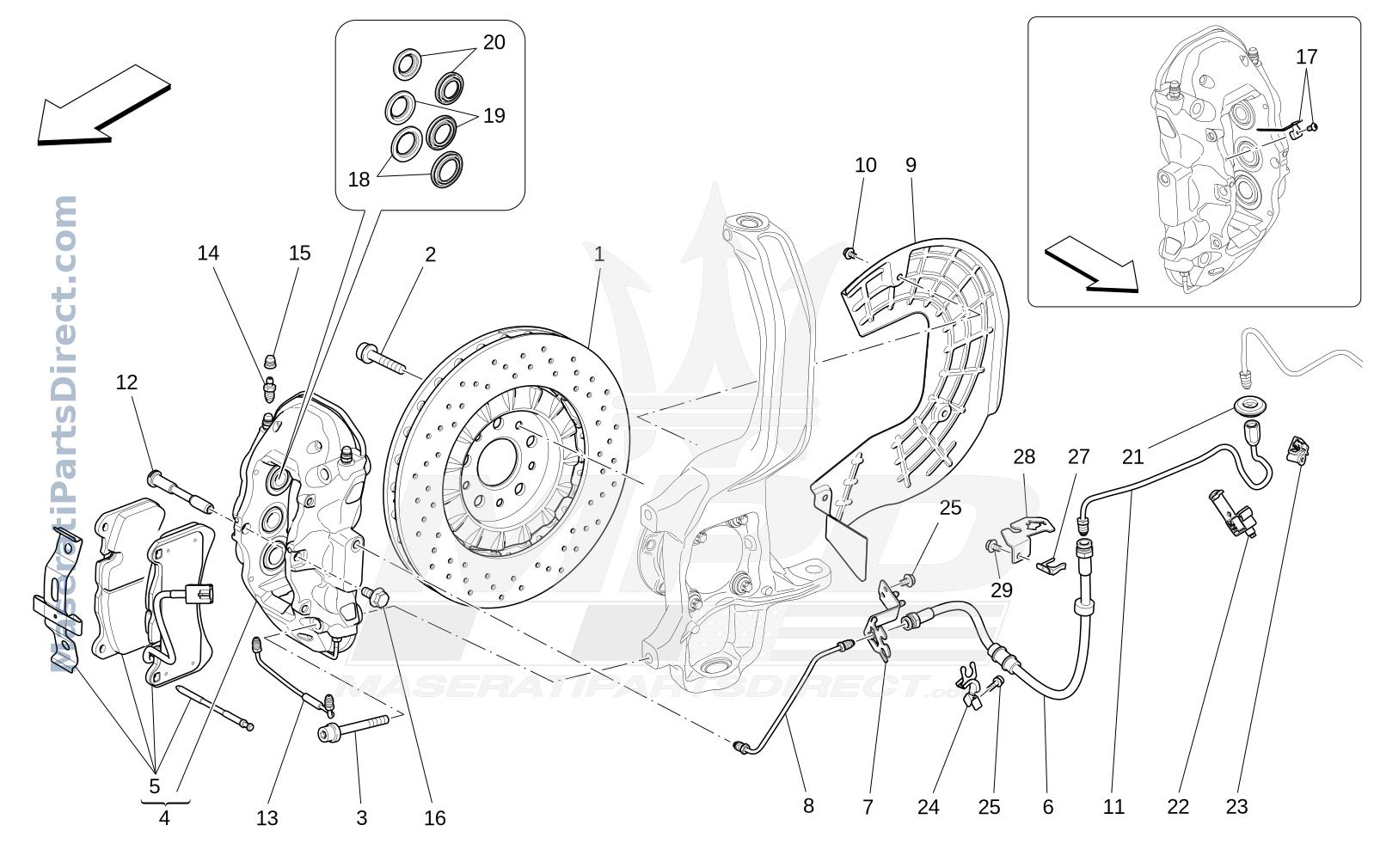

04.10 - 2 - BRAKING DEVICES ON FRONT WHEELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670217883	FRONT BRAKE DISC	$563.60 In Stock
2	675000081	SCREWM10	$11.95 Order
3	670005714	SCREW	$11.25 In Stock
4	custom	LH FRONT CALIPER ASSEMBLY	$0.00 Order
4	custom	RH FRONT CALIPER ASSEMBLY	$0.00 Order
5	custom	FRONT PADS KIT	$0.00 Order
5	custom	FRONT PADS KIT	$0.00 Order
6	670155394	FLEXIBLE PIPE TO FRONT CALIPERS	$43.66 Order
7	670003306	LH FRONT BRACKET	$19.15 Order
7	670001817	RH FRONT BRACKET	$16.98 Order
8	670032074	LH FRONT CALIPER RIGID PIPE	$41.01 Order
8	670032073	RH FRONT CALIPER RIGID PIPE	$41.01 Order
9	670106681	LH FRONT BRAKE DISC GUARD	$183.28 Order
9	670106682	RH FRONT BRAKE DISC GUARD	$183.28 Order
10	675000126	SCREW	$7.65 Order
11	670039670	LH FRONT BRAKE PIPE	$50.63 Order
11	670039841	RH FRONT BRAKE PIPE	$50.63 Order
12	198015	TIE ROD	$73.04 Order
13	673000024	LH FRONT CALIPER RIGID PIPE	$201.12 Order
13	673000025	RH FRONT CALIPER RIGID PIPE	$201.12 Order
14	152954	BLEEDER SCREW	$33.21 Order
15	215666	DUST SEAL	$79.08 Order
16	198014	SCREW	$28.13 Order
17	673000054	BRACKET AND SCREW	$133.50 Order
18	182121	38 MM DIAMETER BOOT	$143.99 Order
19	215664	34 MM DIAMETER BOOT	$132.31 Order
20	215663	30 MM DIAMETER BOOT	$132.31 Order
21	675000281	GASKET	$12.71 Order
22	670039674	CLIP	$11.25 Order
23	675000272	CLIP	$11.25 Order
24	670007373	BRACKET	$31.49 Order
25	675000126	SCREW	$7.65 Order
27	675000276	SPRING PLATE	$6.93 Order
28	670037129	LH BRACKET	$15.89 Order
28	670037128	RH BRACKET	$15.89 Order
29	675000621	SCREW	$10.22 Order
