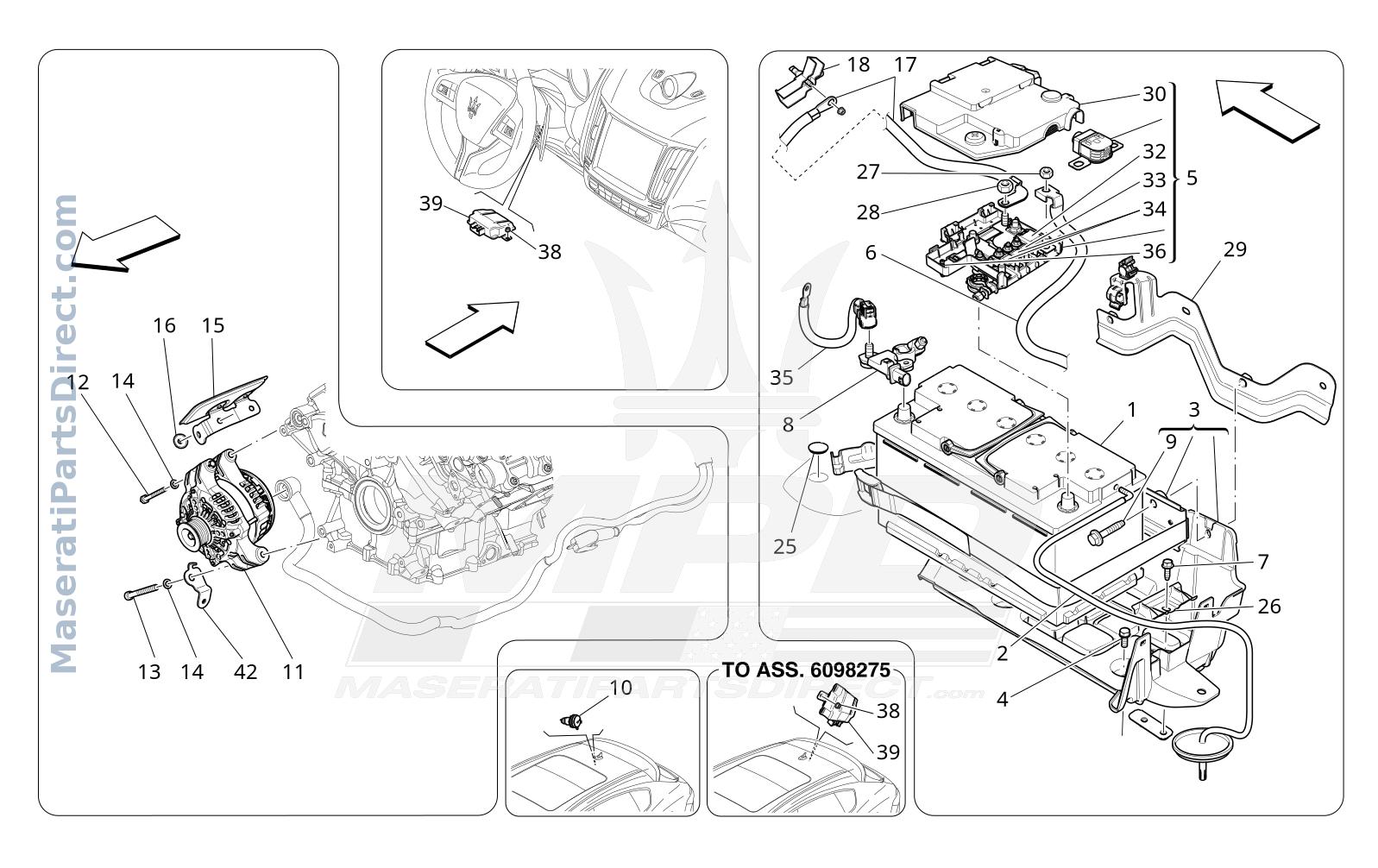

08.20 - 1 - ENERGY GENERATION AND ACCUMULATION

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	675008317	95AH-800A BATTERY	$0.00 Order
2	670008109	BATTERY VENT PIPE	$54.95 Order
3	675000297	BATTERY HOUSING ASSEMBLY	$143.31 Order
4	675000174	SCREWM8	$11.52 Order
5	670105054	BATTERY MULTI-FUNCTION ECU	$409.79 Order
6	670006554	ECU REAR BATTEY POSITIVE POLE CABLE	$61.38 Order
7	675000088	SCREWM6X22	$10.22 Order
8	670221498	IBS SENSOR	$258.04 Order
9	675000214	SCREW	$40.10 Order
10	custom	POWER SOCKET	$0.00 Order
11	283531	ALTERNATOR	$1,977.50 Order
13	14359524	SCREWM8X80	$13.28 Order
14	11193874	WASHERD.8.4-16X1.4	$5.58 Order
16	675000093	NUTM6	$9.73 Order
17	670032363	BATTERY POSITIVE POLE CABLE	$354.38 Order
18	675000578	SHUNT NODE	$21.58 Order
25	675000244	PLUG	$9.84 Order
26	675000426	BRACKET	$17.78 Order
27	675000439	NUT	$22.52 Order
28	675000450	NUT	$22.86 Order
29	670031002	REAR BRACKET	$81.97 Order
30	675000806	COVER	$48.28 Order
32	673002762	MAXI FUSE 175A	$22.02 Order
33	673002763	MIDI FUSE 30A	$11.44 Order
34	673002764	MIDI FUSE 40A	$12.49 Order
35	670109171	BATTERY NEGATIVE POLE CABLE	$75.91 Order
36	673003650	FUSE PULLER	$10.40 Order
38	675000095	NUTM6	$8.64 Order
39	675000786	VOLTAGE STABILIZER	$581.20 Order
40	291068	BRACKET	$0.00 Order
41	233600	SCREWM6X12	$9.20 Order
42	831230	BRACKET	$0.00 Order
