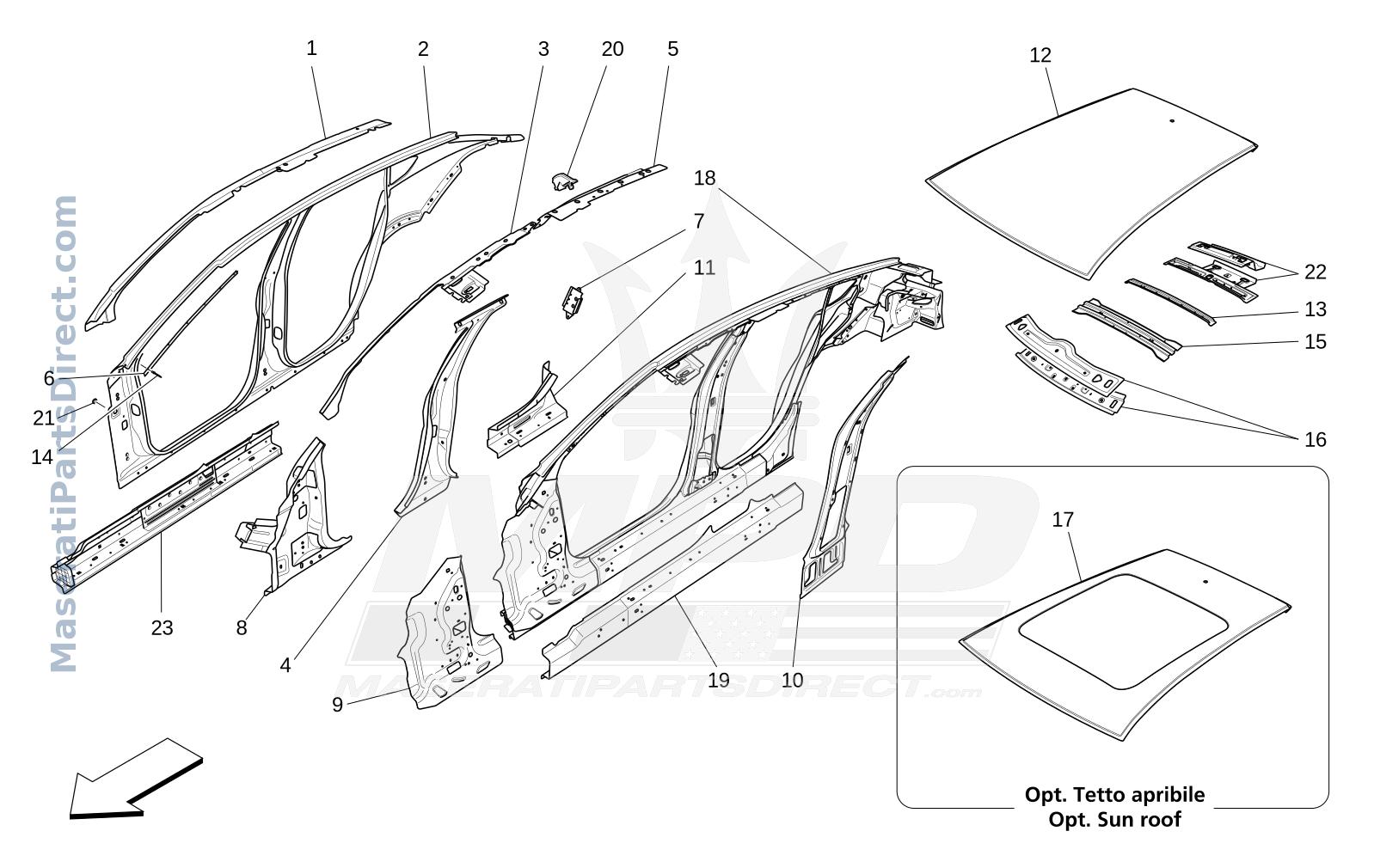

09.01 - 1 - BODYWORK AND CENTRAL OUTER TRIM PANELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673006973	LH FRONT PILLAR MEMBER REINFORCEMENT	$840.16 Order
1	673006978	RH FRONT PILLAR MEMBER REINFORCEMENT	$840.16 Order
2	673008250	LH EXTERNAL BODY SIDE ASSEMBLY	$6,303.52 Order
2	673008249	RH EXTERNAL BODY SIDE ASSEMBLY	$5,816.25 Order
3	673006977	LH FRONT PILLAR SIDE RAIL ASSEMBLY	$369.48 Order
3	673006976	RH FRONT PILLAR SIDE RAIL ASSEMBLY	$369.33 Order
4	673006981	LH CENTRAL PILLAR REINFORCEMENT ASS.	$1,440.56 Order
4	673006979	RH CENTRAL PILLAR REINFORCEMENT ASS.	$1,440.56 Order
5	673006975	LH REAR UPPER SIDE RAIL ASSEMBLY	$358.04 Order
5	673006974	RH REAR UPPER SIDE RAIL ASSEMBLY	$358.04 Order
6	custom	LH GUIDE	$0.00 Order
6	custom	LH GUIDE	$0.00 Order
7	673005638	LH REAR DOOR STRIKER PLATE CONNECTION REINFORCEMENT	$87.68 Order
7	673005637	RH REAR DOOR STRIKER PLATE CONNECTION REINFORCEMENT	$87.68 Order
8	673005640	LH FRONT PILLARE REINFORCEMENT	$1,198.00 Order
8	673005639	RH FRONT PILLAR REINFORCEMENT	$1,198.00 Order
9	673010878	LH INTERNAL BODY SIDE FRAME ASSEMBLY	$584.18 Order
9	673011061	RH INTERNAL BODY SIDE FRAME ASSEMBLY	$0.00 Order
10	673006983	LH CENTRAL PILLAR FRAME	$747.06 Order
10	673006982	RH CENTRAL PILLAR FRAME	$747.06 Order
11	673005644	LH B-PILLAR LOWER FRAMEWORK CONNECTION	$288.38 Order
11	673005643	RH B-PILLAR LOWER FRAMEWORK CONNECTION	$288.38 Order
12	673007935	ROOF EXTERNAL TRIM	$1,224.22 Order
13	673005646	INTERMEDIATE CROSS MEMBER	$145.53 Order
14	670105701	RIVET	$10.40 Order
15	673005647	CENTRAL CROSS MEMBER	$192.50 Order
16	673005648	WINDSCREEN UPPER CROSS MEMBER ASSEMBLY	$261.12 Order
17	673007936	ROOF EXTERNAL TRIM	$1,559.63 Order
18	673010877	LH SIDE BODY PANEL FRAMEWORK WITH WHEELHOUSE	$4,791.71 Order
18	673010875	RH SIDE BODY PANEL FRAMEWORK WITH WHEELHOUSE	$4,791.71 Order
19	673005653	LH SIDE MEMBER ASSEMBLY	$752.37 Order
19	673011062	RH SIDE MEMBER ASSEMBLY	$0.00 Order
20	670034918	LH DIAPHRAGM	$53.22 Order
20	670034917	RH DIAPHRAGM	$53.22 Order
21	670031350	PLUG	$11.25 Order
22	673005654	REAR CROSS MEMBER	$223.04 Order
23	673006848	LH REINFORCEMENT	$829.65 Order
23	673006847	RH REINFORCEMENT	$829.65 Order
