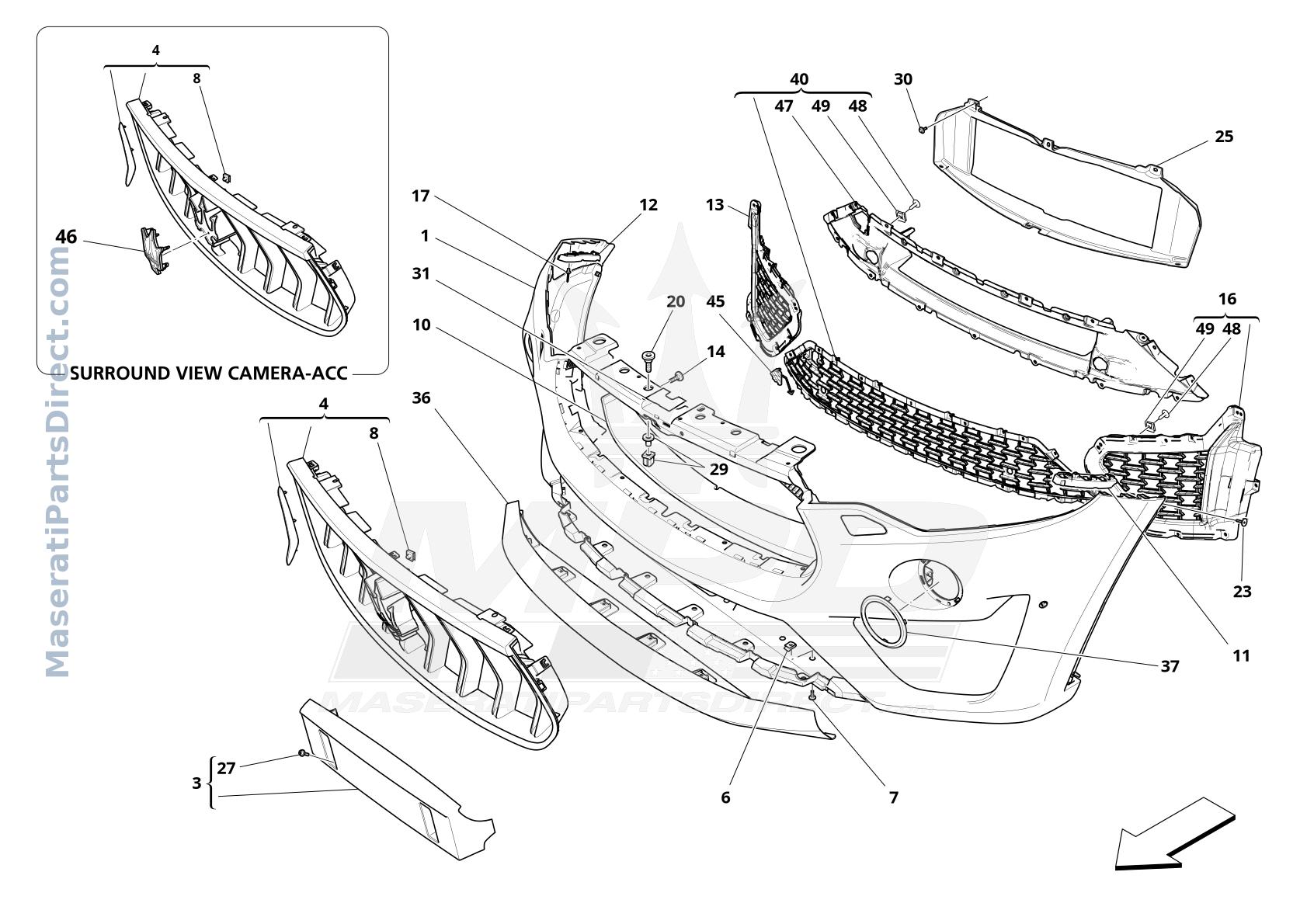

09.10 - 16 - FRONT BUMPER

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	FRONT BUMPER	$0.00 Order
3	custom	FRONT LICENSE PLATE HOLDER	$0.00 Order
4	custom	FRONT GRILLE ASSEMBLY	$0.00 Order
6	675000020	CLIP	$24.80 Order
7	675000326	SCREW10X16	$11.15 Order
8	670100069	RETAINING CLIP	$9.72 Order
10	670103740	DAMPER	$142.47 Order
11	670032916	LH BRACKET	$22.17 In Stock
12	670032915	RH BRACKET	$22.17 In Stock
13	670149274	RH GRILL	$355.80 Order
14	670034559	SCREW	$51.57 Order
16	670149277	LH GRILL	$355.80 Order
17	675000323	RIVET	$8.64 In Stock
20	670003766	SPECIAL SCREW	$11.52 Order
23	670034505	SCREW	$8.00 In Stock
25	670033498	AIR DUCT	$177.10 Order
27	675000228	SCREW	$12.30 In Stock
29	670005535	BLOCK	$12.98 Order
30	675000588	SCREW	$7.65 Order
31	670039369	FRONT HOOD BONNET ADHESIVE	$23.10 Order
36	custom	FRONT MOULDING	$0.00 Order
37	custom	FOG LAMP FRAME	$0.00 Order
40	custom	LOWER GRILLE	$0.00 Order
45	custom	TOW HOOK PLUG	$0.00 Order
46	670071795	RADAR TRIM	$648.76 Order
47	670217531	AIR DUCT	$111.25 Order
48	675000681	SCREW	$9.84 Order
49	670154954	CLIP	$9.72 Order
