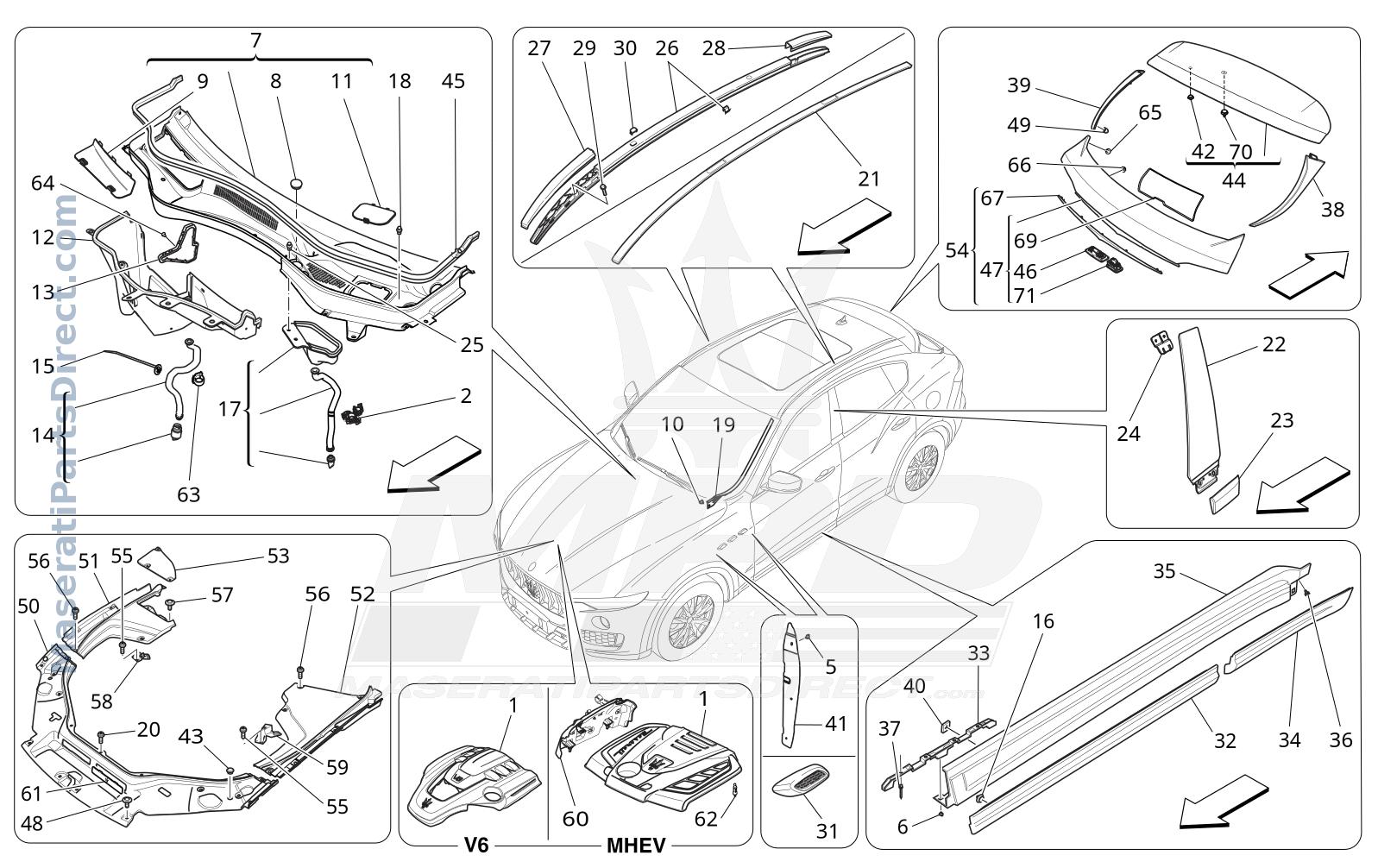

09.15 - 1 - SHIELDS, TRIMS AND COVERING PANELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670035409	ENGINE COVER ON INTAKE MANIFOLD	$771.17 Order
2	670039068	CLIP	$0.00 Order
5	675000058	FASTENER BUTTON	$10.76 Order
6	675000058	FASTENER BUTTON	$10.76 Order
7	custom	UNDER WINDSCREEN PLATE	$0.00 Order
8	675000311	PLUG	$13.88 Order
9	custom	INSPECTION DOOR	$0.00 Order
10	675000058	FASTENER BUTTON	$10.76 Order
11	670013428	LH INSPECTION DOOR	$43.17 Order
12	670174737	FACILITY TRAY	$298.74 Order
13	670032847	WATER GUARD GRILL	$70.50 Order
14	670038491	LH WATER OUTLET SLEEVE	$0.00 Order
15	670005402	CLAMP	$0.00 Order
16	670036926	CLIP	$9.84 Order
18	675000150	FASTENER BUTTON	$6.21 In Stock
19	custom	LH PLATE	$0.00 Order
19	custom	LH PLATE	$0.00 Order
20	670102373	SCREW	$11.55 Order
21	670098394	LH ROOF MOULDING	$318.14 Order
21	670098393	RH ROOF MOULDING	$318.14 Order
22	670061899	LH CENTRAL PILLAR MOULDING	$282.51 Order
22	670061898	RH CENTRAL PILLAR MOULDING	$282.51 In Stock
23	670061901	LH PILLAR MOULDING COVER	$18.41 Order
23	670061900	RH PILLAR MOULDING COVER	$18.41 Order
24	670004125	BRACKET	$39.68 Order
25	675000150	FASTENER BUTTON	$6.21 In Stock
26	custom	LH UTILITY BAR	$0.00 Order
26	custom	RH UTILITY BAR	$0.00 Order
27	custom	LH FRONT COVER	$0.00 Order
27	custom	RH FRONT COVER	$0.00 Order
28	custom	LH REAR COVER	$0.00 Order
28	custom	RH REAR COVER	$0.00 Order
29	675000579	SCREW	$10.62 Order
30	custom	PLUG	$0.00 Order
31	custom	LH LATERAL AIR VENT	$0.00 Order
31	custom	RH LATERAL AIR VENT	$0.00 Order
32	custom	LH FRONT SIDE SKIRT	$0.00 Order
32	custom	LH FRONT SIDE SKIRT	$0.00 Order
33	670033532	BRACKET	$25.90 Order
34	custom	LH REAR SIDE SKIRT	$0.00 Order
34	custom	LH REAR SIDE SKIRT	$0.00 Order
35	670065825	LH DOOR MOULDING	$207.33 Order
35	670065826	RH DOOR MOULDING	$207.33 Order
36	675000058	FASTENER BUTTON	$10.76 Order
37	675000404	RIVET	$7.65 Order
38	custom	RH COVER	$0.00 Order
39	custom	LH COVER	$0.00 Order
40	670036884	GASKET	$11.52 Order
41	670032469	LH MUDGUARD COVER	$68.13 Order
41	670032468	RH MUDGUARD COVER	$68.13 Order
42	673007387	CLIP	$11.10 Order
43	675000244	PLUG	$9.84 Order
44	custom	UPPER SPOILER	$0.00 Order
45	670039886	GASKET	$198.37 Order
46	675000613	NUMBER PLATE ROOF LIGHT	$129.24 Order
47	673016822	LOWER SPOILER	$843.58 Order
49	675000650	RUBBER	$8.00 Order
50	670105696	FRONT GUARD	$350.58 Order
51	custom	RH GUARD	$0.00 Order
52	custom	LH GUARD	$0.00 Order
53	custom	INSPECTION DOOR	$0.00 Order
54	custom	CPL LOWER SPOILER	$0.00 Order
54	custom	CPL LOWER SPOILER	$0.00 Order
54	custom	CPL LOWER SPOILER	$0.00 Order
55	675000556	SCREW	$10.40 Order
56	670102373	SCREW	$11.55 Order
58	670104472	RH BRACKET	$21.03 Order
59	670036004	LH BRACKET	$19.15 Order
62	675000971	BALL PIN	$16.17 Order
63	675000788	CABLES RETAINING CLIP	$0.00 Order
64	675002232	SCREW	$0.00 Order
65	675002251	SCREW	$0.00 Order
66	675000181	NUT	$4.86 Order
67	custom	TRIM PLATE	$0.00 Order
69	673016845	GASKET	$31.70 Order
70	673016897	THREADED PIN	$0.00 Order
71	-	COMPLETE REAR LID OPENING BUTTONINCLUDED IN THE REAR SPOILER	$0.00 Order
