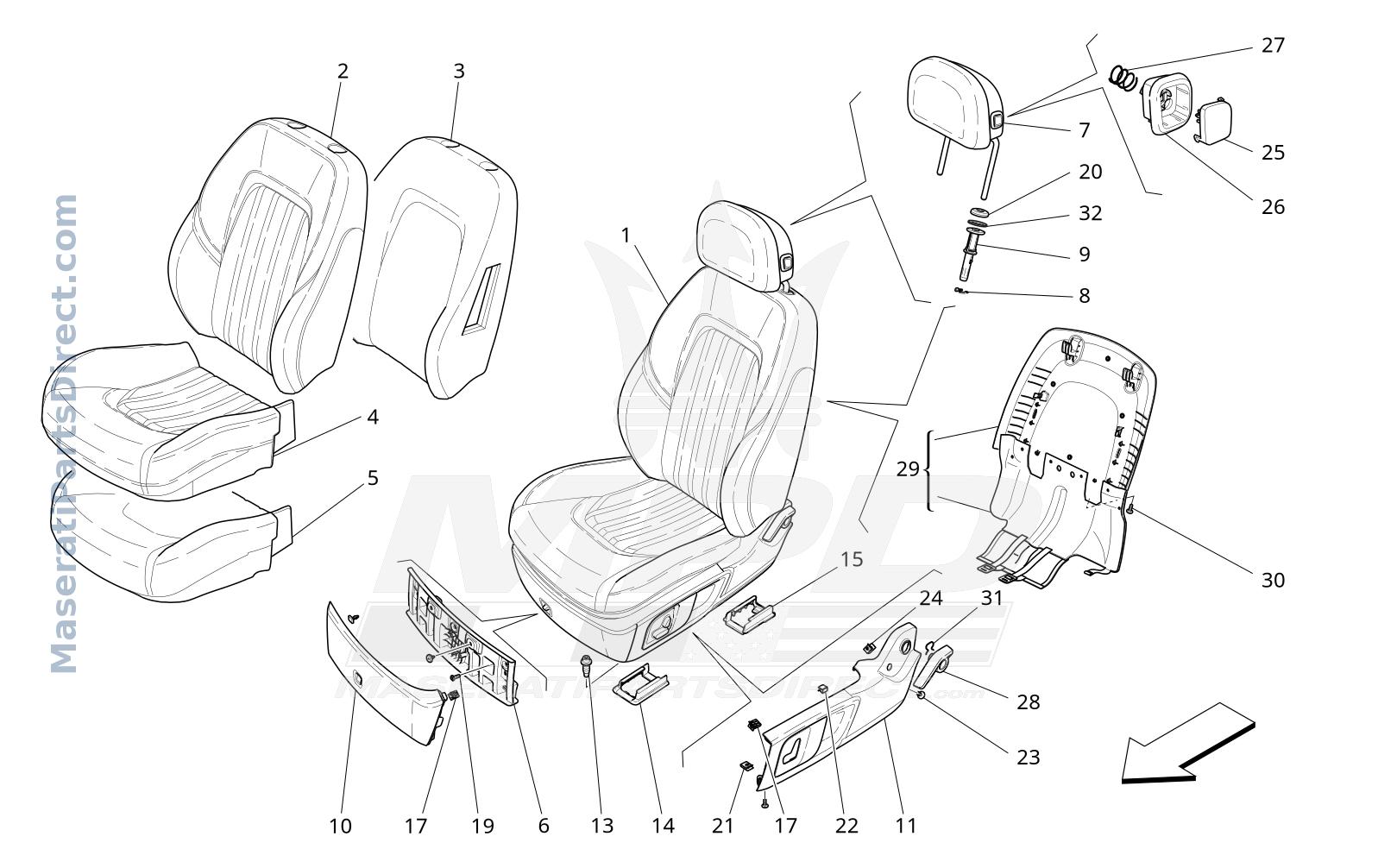

09.40 - 2 - FRONT SEATS: TRIM PANELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	FRONT LH SEAT ASSEMBLY	$0.00 Order
1	custom	FRONT RH SEAT ASSEMBLY	$0.00 Order
2	custom	LH FRONT SEAT BACK LININGWith side pocket	$0.00 Order
2	custom	RH FRONT SEAT BACK LININGWith side pocket	$0.00 Order
3	custom	LH FRONT SEAT BACK PADDING	$0.00 Order
3	custom	RH FRONT SEAT BACK PADDING	$0.00 Order
4	custom	LH FRONT SEAT CUSHION COVER	$0.00 Order
4	custom	RH FRONT SEAT CUSHION COVER	$0.00 Order
5	custom	LH FRONT CUSHION PADDING	$0.00 Order
5	custom	RH FRONT CUSHION PADDING	$0.00 Order
6	670007532	FRONT GUARD PLASTIC COVER	$36.18 Order
7	custom	FRONT SEAT HEADREST ASSEMBLY	$0.00 Order
8	670006134	SPRING	$13.88 Order
9	670006148	HEADREST LH BUSHING	$20.48 Order
9	670006149	HEADREST RH BUSHING	$20.48 Order
10	custom	RH GUARD	$0.00 Order
10	custom	RH GUARD	$0.00 Order
11	custom	LH SIDE GUARD	$0.00 Order
11	custom	LH SIDE GUARD	$0.00 Order
11	custom	LH SIDE GUARD	$0.00 Order
11	custom	LH SIDE GUARD	$0.00 Order
13	675000042	SCREW	$9.24 Order
14	custom	FRONT PROTECTION COVER TRIM	$0.00 Order
15	custom	REAR PROTECTION COVER TRIM	$0.00 Order
17	673000290	RETAINING CLIP	$10.22 Order
19	673000236	SCREW	$6.21 Order
20	custom	BUSHING COVER	$0.00 Order
21	673000289	BRACKET	$11.72 Order
22	673000288	CLIP	$10.14 Order
23	673000323	SCREW	$11.52 Order
24	673000324	RETAINING CLIP	$11.95 Order
25	custom	HEADREST ADJUSTMENT BUTTON	$0.00 Order
26	custom	PUSH BUTTON TRIM PLATE	$0.00 Order
27	670006135	SPRING	$10.80 Order
28	custom	LH SEAT UNHOOK LEVER	$0.00 Order
28	custom	LH SEAT UNHOOK LEVER	$0.00 Order
29	custom	COMPLETE L.H. SEAT BACK PANEL	$0.00 Order
29	custom	COMPLETE R.H. SEAT BACK PANEL	$0.00 Order
30	673000236	SCREW	$6.21 Order
31	673002768	RELEASE CLIP FOR SEAT LEVER	$13.58 Order
32	673013364	WASHER	$10.22 Order
