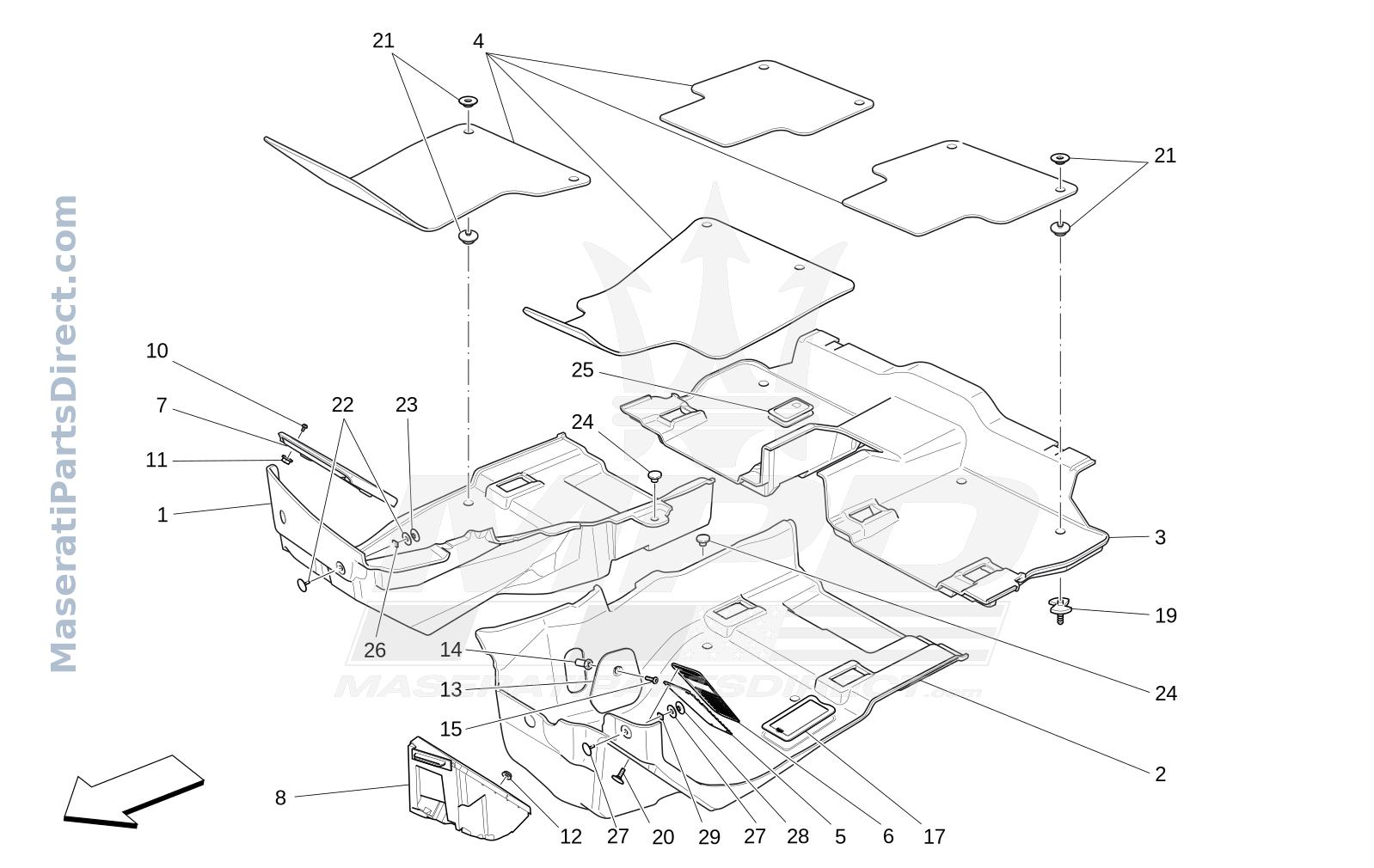

09.60 - 1 - PASSENGER COMPARTMENT MATS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	RH PASSENGER COMPARTMENT CARPET	$0.00 Order
2	custom	LH PASSENGER COMPARTMENT CARPET	$0.00 Order
3	custom	REAR PASSENGER COMPARTMENT FLOOR PANEL	$0.00 Order
4	custom	REMOVABLE CARPET KIT	$0.00 Order
5	673000076	PLASTIC FOOTREST	$78.40 Order
6	673000077	METAL FOOTREST	$83.19 Order
7	custom	INSPECTION DOOR	$0.00 Order
8	670032149	DRIVER SIDE FOOTREST	$242.65 Order
10	675001959	SCREW	$20.28 Order
11	675000408	BLOCK	$12.30 Order
12	675000324	NUT	$10.16 In Stock
13	670014815	LH PLATE	$151.60 Order
14	670006658	BUSHING	$29.46 Order
15	670009563	SCREW	$29.46 Order
17	custom	GEARBOX RELEASE LEVER LID	$0.00 Order
19	custom	CARPET FASTENER BUTTON	$0.00 Order
20	673008009	FOOT-REST KIT	$10.62 Order
21	custom	REMOVABLE CARPET FIXING KIT	$0.00 Order
22	673002366	SCREW AND WASHER	$13.28 Order
24	custom	FASTENER BUTTON6,5X18	$0.00 Order
25	673007277	REAR CARPET COMPARTMENT COVER	$35.36 Order
26	670036884	GASKET	$11.52 Order
27	673002366	SCREW AND WASHER	$13.28 Order
29	670036884	GASKET	$11.52 Order
