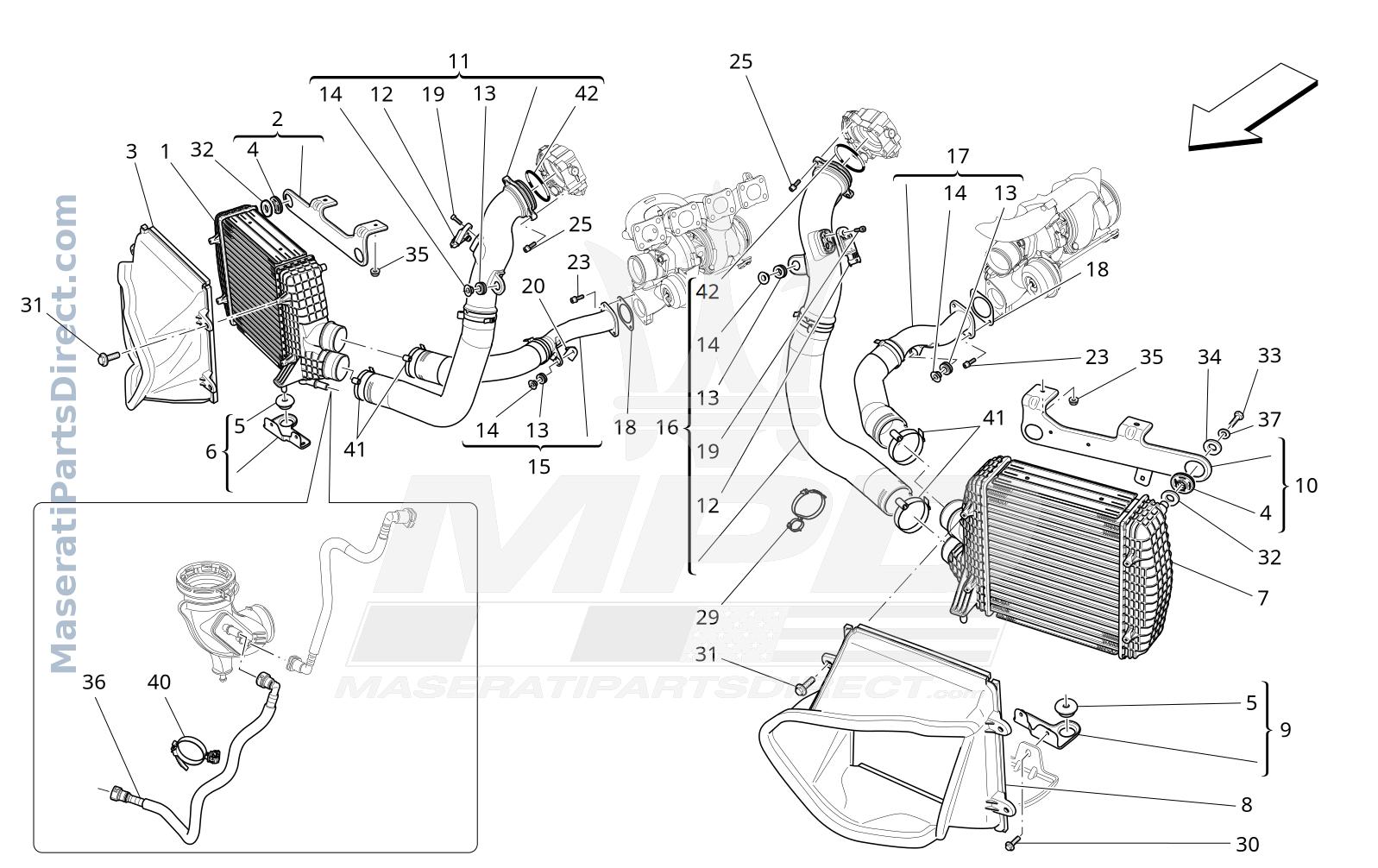

01.32 - 1 - INTERCOOLER SYSTEM

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670109556	RH INTERCOOLER	$804.78 Order
2	670031962	RH BRACKET	$64.34 Order
3	670300486	RH SIDE AIR DUCT	$144.14 Order
4	670009576	FLEXIBLE PAD	$23.23 Order
5	670009556	BUSHING	$10.80 Order
6	670031963	RH LOWER BRACKET ASSEMBLY	$42.82 Order
7	670109553	LH INTERCOOLER	$803.99 Order
8	670300489	LH SIDE AIR DUCT	$133.09 Order
9	670031960	LH LOWER BRACKET ASSEMBLY	$145.86 Order
10	670031961	LH BRACKET	$70.92 Order
11	670103764	PIPE BETWEEN INTERCOOLER AND RH INTAKE DUCT	$589.47 Order
12	675000014	PRESSURE TRANSMITTER	$237.27 Order
13	675000016	FLEXIBLE PAD	$21.48 Order
14	675000017	SPACER	$14.56 Order
15	670103766	SLEEVE FROM TURBINE TO RH INTERCOOLER	$357.14 Order
16	670103765	SLEEVE FROM TURBINE TO LH INTERCOOLER	$818.38 Order
17	670103767	SLEEVE FROM TURBINE TO LH INTERCOOLER	$340.58 Order
18	670006209	GASKET	$42.42 Order
19	675000190	SCREWM6X20	$14.56 Order
20	670103782	RH BRACKET	$0.00 Order
23	675000375	SCREWM6X20	$4.86 Order
25	675000376	SCREW	$9.17 Order
29	670005919	RETAINING CLIP	$15.89 Order
30	675000087	SCREWM6X16	$7.65 Order
31	675000354	SCREW	$6.93 Order
32	670009712	WASHER	$0.00 Order
33	10902024	SCREWM6X12	$8.64 Order
34	670039441	WASHER	$19.15 Order
35	14059214	NUTM6	$8.64 Order
36	670104113	VAPOUR PIPE FROM CLEAN AIR SLEEVE TO ENGINE AIR PIPE	$50.25 Order
37	675000718	WASHER	$10.00 Order
40	670101334	CLIP	$12.98 Order
41	675000685	COLLAR	$14.81 Order
42	14464786	O.R. GASKET	$53.33 Order
