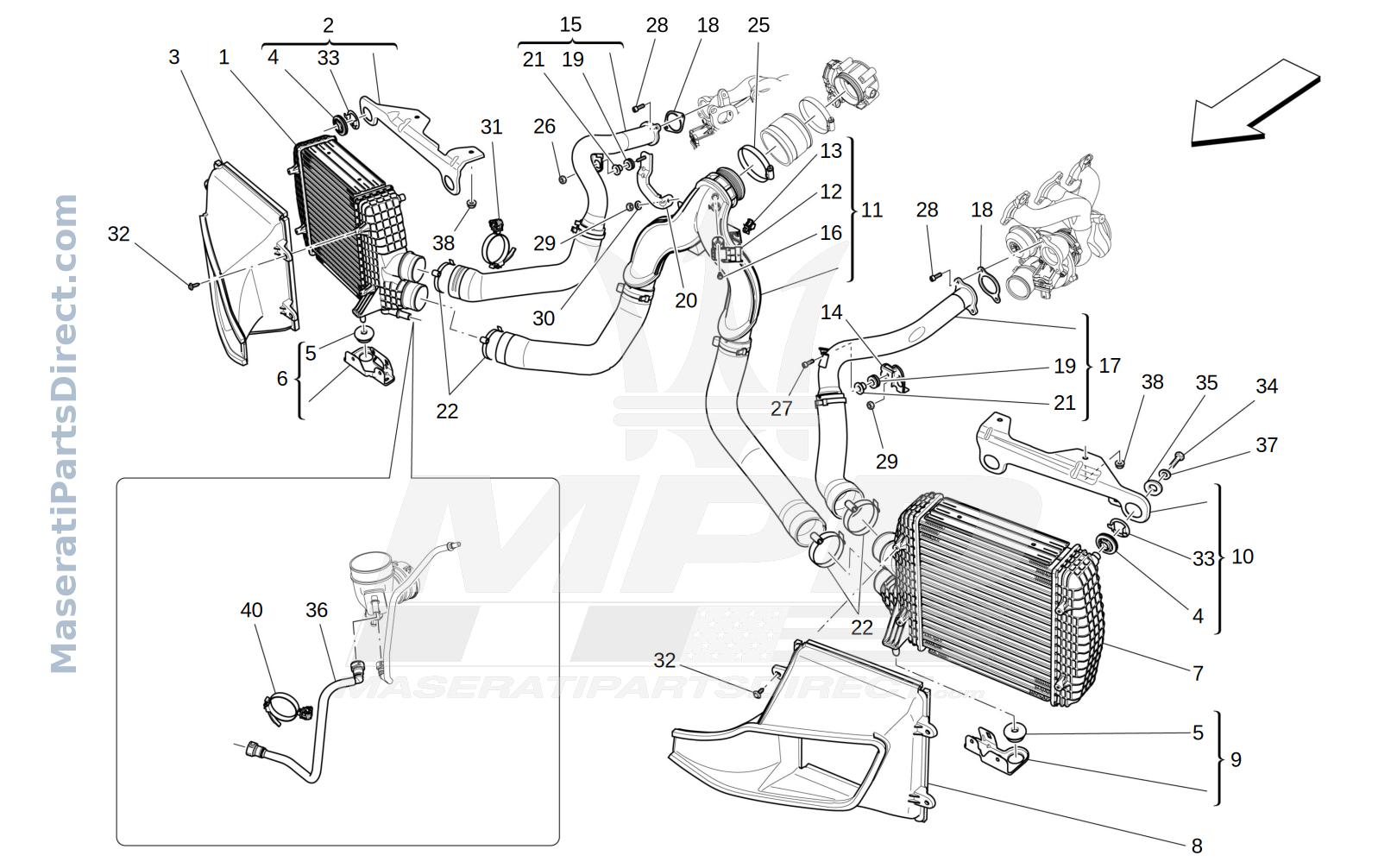

01.32 - 3 - INTERCOOLER SYSTEM

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670109554	RH INTERCOOLER	$608.87 Order
2	670031962	RH BRACKET	$64.34 Order
3	670300486	RH SIDE AIR DUCT	$144.14 Order
4	675000201	FLEXIBLE PAD	$19.15 Order
5	670009556	BUSHING	$10.80 Order
6	670031963	RH LOWER BRACKET ASSEMBLY	$42.82 Order
7	670109550	LH INTERCOOLER	$624.51 Order
8	670300489	LH SIDE AIR DUCT	$133.09 Order
9	670031960	LH LOWER BRACKET ASSEMBLY	$145.86 Order
10	670031961	LH BRACKET	$70.92 Order
11	670039138	AIR INLET SLEEVE ASSEMBLY	$745.77 Order
12	675000248	PRESSURE TRANSMITTER	$214.83 Order
13	670006739	CLIP	$11.55 Order
14	670009370	LH BRACKET	$39.68 Order
15	670104145	SLEEVE FROM TURBINE TO RH INTERCOOLER	$764.75 Order
16	675000190	SCREWM6X20	$14.56 Order
17	670104915	SLEEVE FROM TURBINE TO LH INTERCOOLER	$762.62 Order
18	670006210	GASKET	$11.72 Order
19	675000016	FLEXIBLE PAD	$21.48 Order
20	670105605	RH BRACKET	$0.00 Order
21	675000017	SPACER	$14.56 Order
22	675000362	COLLARD.78	$11.95 In Stock
25	675000685	COLLAR	$14.81 Order
25	675000685	COLLAR	$14.81 Order
26	14059214	NUTM6	$8.64 Order
27	675000088	SCREWM6X22	$10.22 Order
28	675000104	SCREWM6X25	$7.65 Order
29	14059214	NUTM6	$8.64 Order
30	675000366	WASHERD.6.15-15X1	$11.52 Order
32	675000354	SCREW	$6.93 Order
34	10902024	SCREWM6X12	$8.64 Order
35	670039441	WASHER	$19.15 Order
36	670105049	VAPOUR PIPE FROM CLEAN AIR SLEEVE TO ENGINE AIR PIPE	$101.75 Order
37	675000718	WASHER	$10.00 Order
38	14059214	NUTM6	$8.64 Order
40	670101334	CLIP	$12.98 Order
