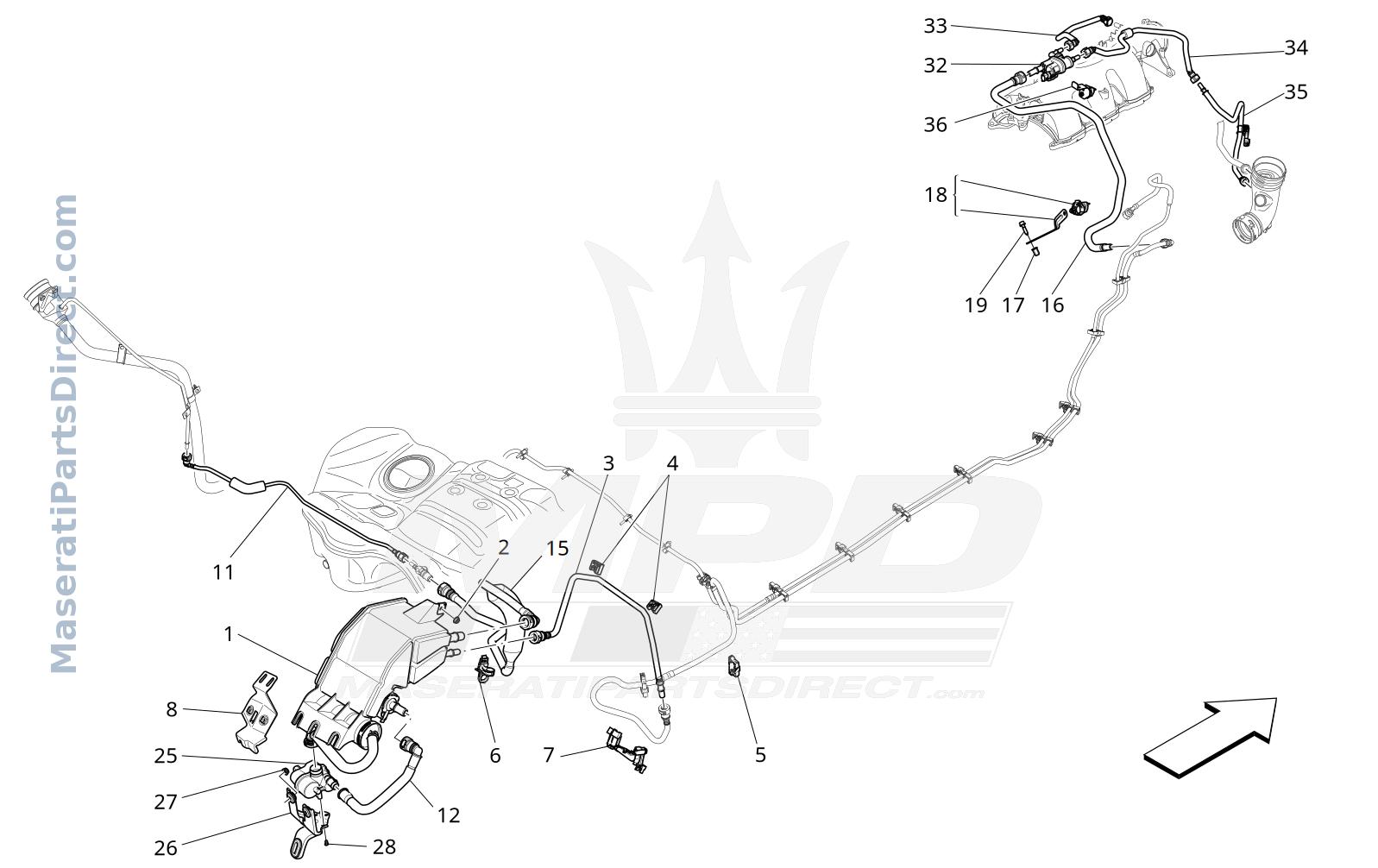

01.44 - 10 - FUEL VAPOUR RECIRCULATION SYSTEM

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670215489	FUEL VAPOUR FILTER	$218.07 In Stock
2	675000095	NUTM6	$8.64 Order
3	670033294	PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	$68.94 Order
4	670033289	CLIP	$13.88 Order
5	675000790	CLIP	$0.00 Order
6	670100038	BRACKET	$13.88 Order
7	670031947	CLIP	$34.50 Order
8	670217138	REAR BRACKET	$0.00 Order
11	670033572	VAPOUR PIPE	$91.30 Order
12	670216814	PIPE FROM FUEL VAPOUR FILTER TO DIAGNOSTIC PUMP	$69.11 Order
15	670033274	VENT PIPE	$221.84 Order
16	670105047	PIPE BETWEEN UNION AND INTAKE MANIFOLD	$111.73 Order
17	675000576	RIVET	$8.64 Order
18	670104126	BRACKET ASSEMBLY	$0.00 Order
19	675000242	SCREWM6X25	$11.52 Order
25	670002246	DIAGNOSTICS PUMP	$197.91 In Stock
28	675000195	SCREWM5X12	$10.00 Order
32	670162028	SOLENOID VALVE	$86.86 In Stock
33	670033129	PIPE FROM SOLENOID VALVE TO ENGINE	$62.08 Order
34	670033130	PIPE FROM SOLENOID VALVE TO CLEAN AIR SLEEVE PIPE	$118.91 Order
35	670155080	VAPOUR PIPE FROM PIPE TO CLEAN AIR SLEEVE	$324.03 Order
36	670033127	BRACKET	$0.00 Order
