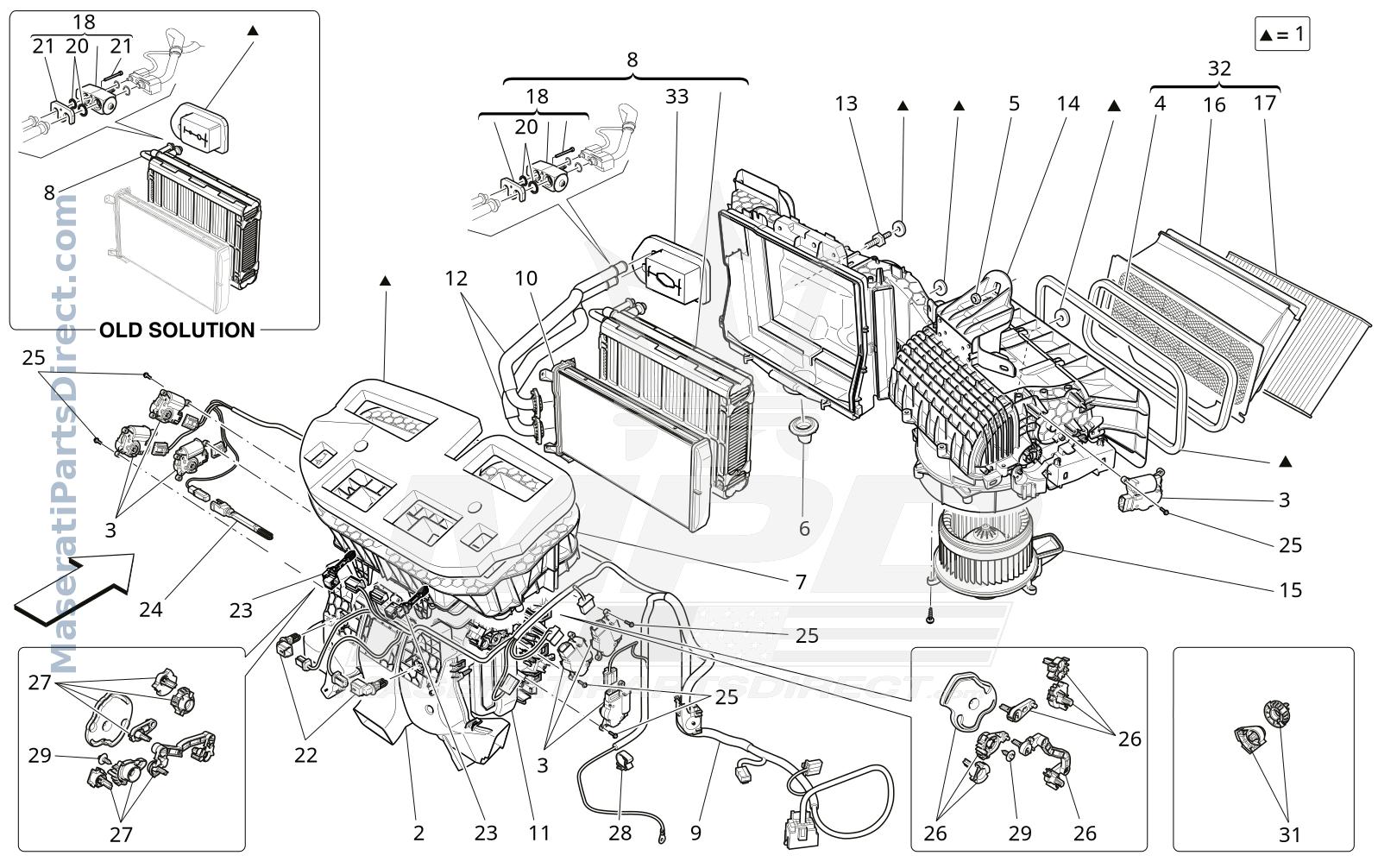

08.41 - 3 - A/C UNIT: DASHBOARD DEVICES

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
0	670220839	AIR CONDITIONING ASSEMBLY	$4,365.53 Order
1	673014088	GASKET KIT	$79.97 Order
1	673009608	GASKET KIT	$110.68 Order
2	673009330	AIR DUCT	$194.04 Order
3	670104418	ACTUATOR	$116.89 Order
4	670007353	GASKET	$64.70 Order
5	675000093	NUTM6	$9.73 Order
6	675000425	CONDENSATION DRAIN PIPE	$38.02 Order
7	673009369	AIR DUCT	$149.69 Order
8	673015314	EVAPORATOR ASSEMBLY	$948.96 In Stock
8	673013159	EVAPORATOR ASSEMBLY	$0.00 Order
9	673009320	WIRING HARNESS	$446.96 Order
10	673009324	HEATER	$277.52 Order
11	673014094	CENTRAL BODY	$0.00 Order
11	673009317	CENTRAL BODY	$589.13 Order
12	673015316	HEATER HOSE KIT	$186.80 Order
13	673009338	PIN	$0.00 Order
14	673009318	AIR INLET MODULE	$814.87 Order
15	673009319	ELECTROFAN	$776.46 Order
16	670005020	AIR CONDITIONING CASE	$74.28 Order
17	670005021	POLLEN FILTER	$53.59 In Stock
18	673009322	TXV KIT	$406.76 In Stock
20	673009339	GASKET KIT	$92.44 Order
21	673009336	TXV FIXING KIT	$0.00 Order
22	673009333	AIR TEMPERATURE SENSOR (FEET)	$95.24 Order
23	673009332	AIR TEMPERATURE SENSOR	$85.66 Order
24	673009331	EVAPORATOR SENSOR	$106.97 Order
25	673009334	SCREW	$0.00 Order
26	673009326	RH KINEMATIC MECHANISM KIT	$66.71 Order
27	673009327	LH KINEMATIC MECHANISM KIT	$66.71 Order
28	673009337	RETAINING CLIP	$0.00 Order
29	673009335	SCREW	$0.00 Order
31	673009328	AIR INTAKE KINEMATIC MECHANISM KIT	$0.00 Order
32	670004016	AIR CONDITIONING CASE WITH FILTER CPL.	$136.44 Order
33	673014092	CPL. TXV GASKET KIT	$85.94 Order
