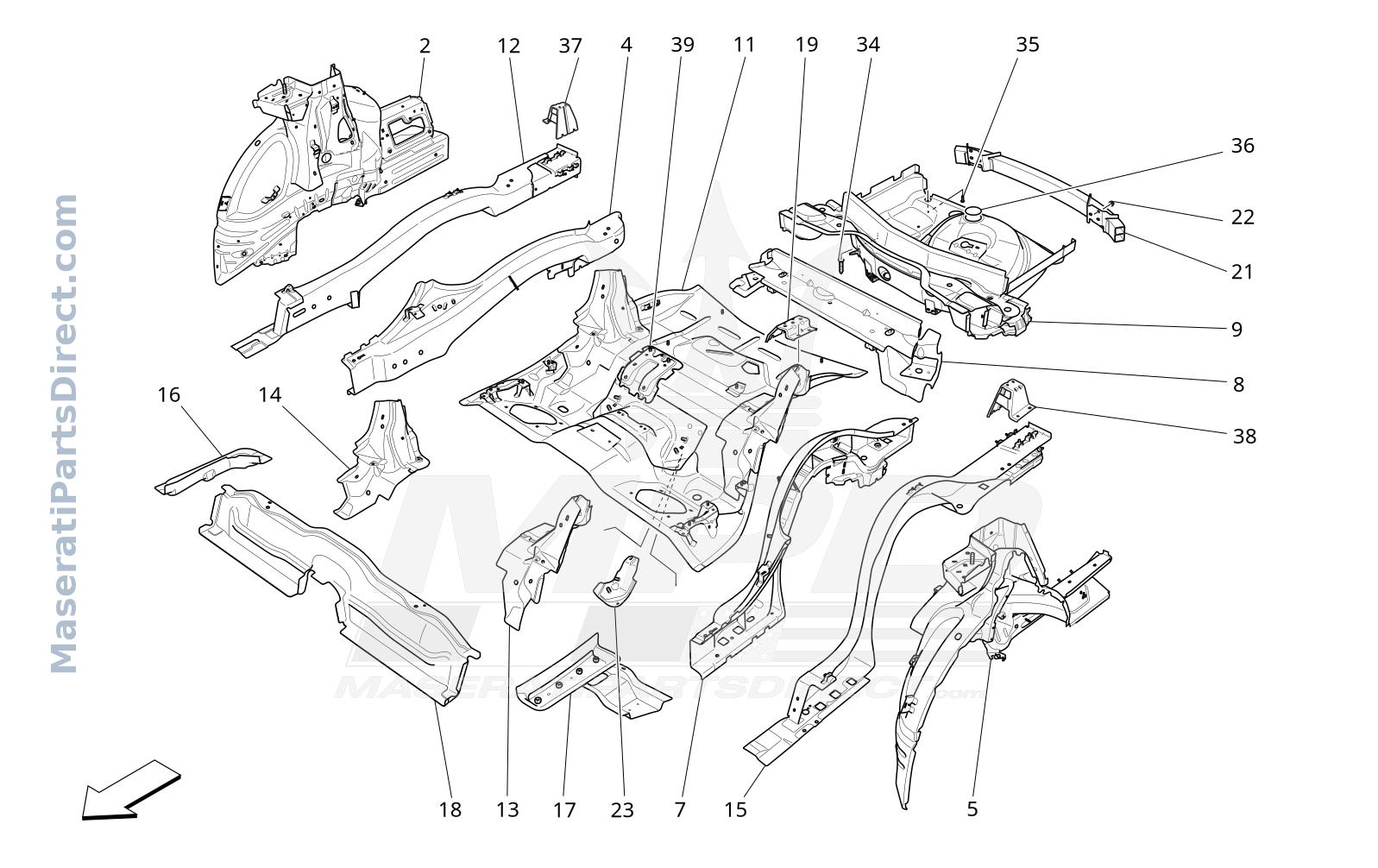

09.05 - 1 - REAR STRUCTURAL FRAMES AND SHEET PANELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
2	673015404	RH REAR WHEELHOUSE	$0.00 Order
4	673016824	RH OUTER REAR SIDE MEMBER	$853.86 Order
5	673015405	LH REAR WHEELHOUSE	$1,619.87 Order
7	673016825	LH OUTER REAR SIDE MEMBER	$853.86 Order
8	673009139	LONGITUDINAL MEMBER CONNECTING CROSS MEMBER	$599.03 Order
9	673013891	SPARE WHEEL COMPARTMENT	$1,133.07 Order
11	673012332	FRONT SIDE OF REAR FLOOR ASSEMBLY	$1,171.29 Order
12	673009452	RH INTERNAL REAR SIDE MEMBER	$750.94 Order
13	673007206	LH REAR PILLAR REINFORCEMENT	$475.25 Order
14	673007205	RH REAR PILLAR REINFORCEMENT	$475.25 Order
15	673007931	LH INTERNAL REAR SIDE MEMBER	$698.13 Order
16	673009453	RH GEARBOX SUPPORT SIDE RAIL	$0.00 Order
17	673013836	LH GEARBOX SUPPORT SIDE RAIL	$157.08 Order
18	673005697	REAR CROSS MEMBER	$499.21 Order
19	670033444	LH BRACKET	$32.34 Order
19	670033442	RH BRACKET	$32.34 Order
21	670107339	REAR CRASH-BOX CROSS MEMBER ASS.	$750.36 Order
22	675000443	NUT	$7.65 Order
23	673009200	LH REAR SEAT BELT FAST. LATCH REINFORCEMENT ASS	$0.00 Order
23	673009199	RH REAR SEAT BELT FAST. LATCH REINFORCEMENT ASS	$0.00 Order
34	675000624	WELDED STUD	$8.28 Order
35	675000698	RIVET	$10.22 Order
36	670030797	PLUG	$20.28 Order
37	670222542	RH BRACKET	$106.79 Order
38	670222543	LH BRACKET	$106.79 Order
39	670032545	BRACKET	$0.00 Order
