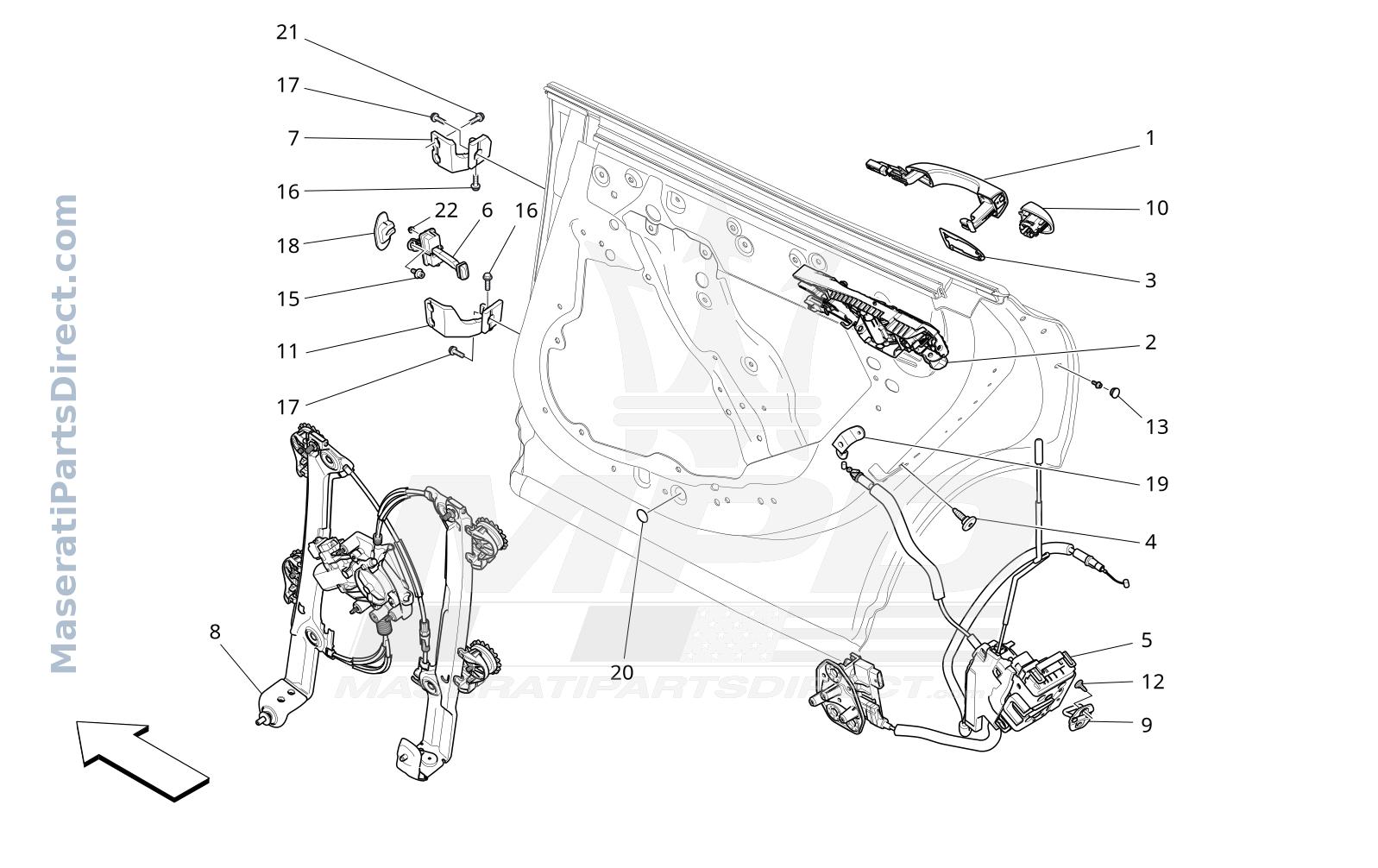

09.33 - 2 - REAR DOORS: MECHANISMS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	EXTERNAL DOOR HANDLE	$0.00 Order
2	custom	LH EXTERNAL DOOR HANDLE RETAINING BRACKET	$0.00 Order
2	custom	RH EXTERNAL DOOR HANDLE RETAINING BRACKET	$0.00 Order
3	670005442	EXTERNAL DOOR HANDLE GASKET	$9.73 Order
4	670154292	SCREW	$11.25 Order
5	670216644	LH REAR DOOR LOCK	$802.16 Order
5	670216642	RH REAR DOOR LOCK	$802.16 Order
6	670032887	TIE ROD	$50.05 Order
7	670034120	LH UPPER HINGE	$59.68 Order
7	670034122	RH UPPER HINGE	$59.68 Order
8	670176159	LH REAR POWER WINDOW	$865.94 Order
8	670176158	RH REAR POWER WINDOW	$865.94 In Stock
9	675000573	DOORS LOCK STRIKER	$42.20 Order
10	custom	DOOR LOCK REVOLVING PLUG TRIM	$0.00 Order
11	670034121	LH LOWER HINGE	$52.93 Order
11	670034123	RH LOWER HINGE	$60.05 Order
12	670009758	SPECIAL SCREW	$6.93 Order
13	custom	PLUG	$0.00 Order
15	670006984	SCREW	$10.40 Order
16	675000005	SCREWM 8x15	$6.93 Order
17	675000485	SCREWM10	$9.73 Order
18	670034687	GASKET	$13.28 Order
19	670034722	BRACKET	$21.24 Order
20	675000722	PROTECTIVE FILMS	$0.00 Order
21	675000485	SCREWM10	$9.73 Order
22	670006983	NUT	$9.20 Order
