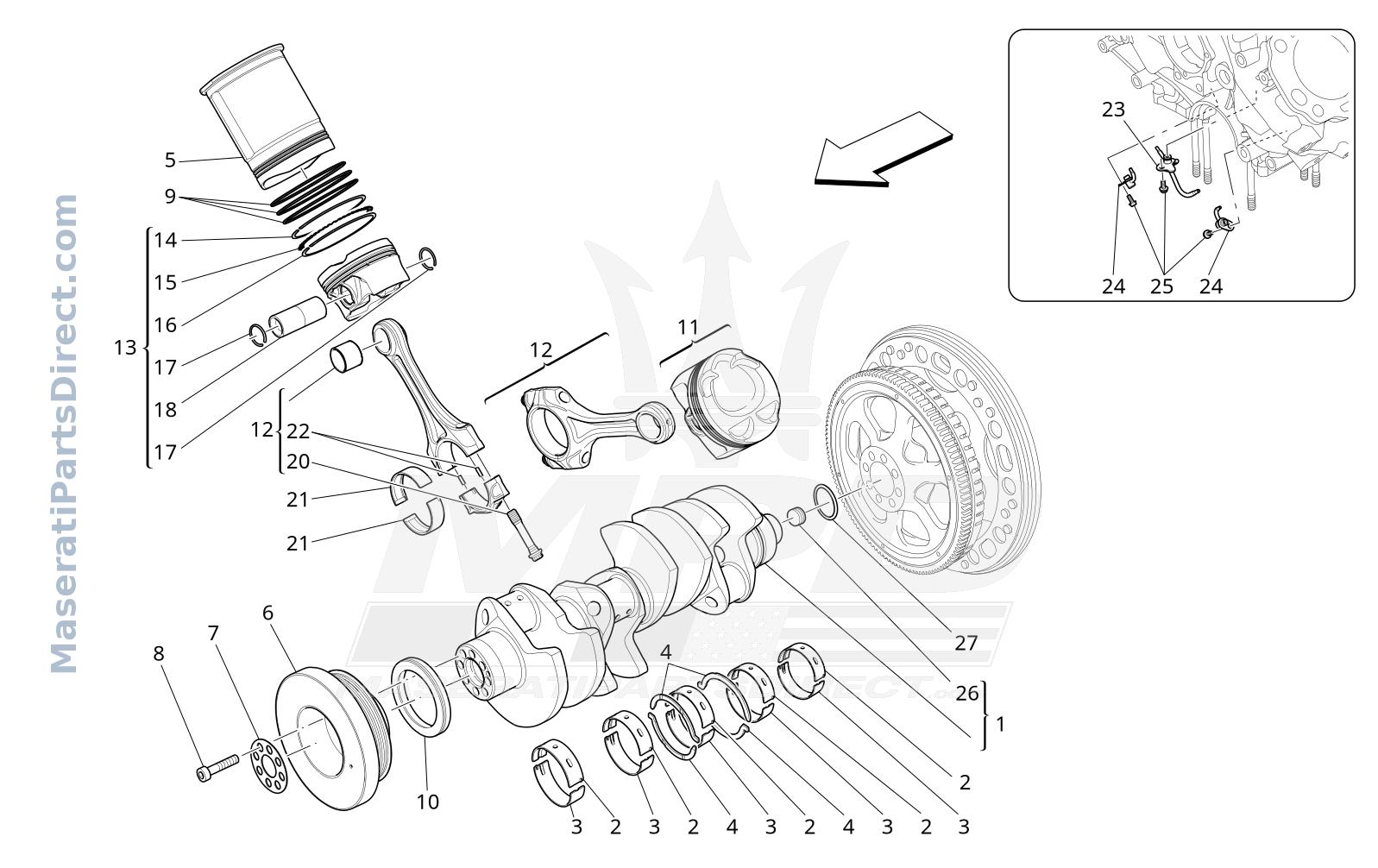

01.10 - 1 - CRANK MECHANISM

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	276619	CRANKSHAFT	$7,902.97 Order
2	271409	UPPER HALF-BEARING	$60.03 Order
2	271408	UPPER HALF-BEARING	$60.03 Order
2	271406	UPPER HALF-BEARING	$59.33 Order
3	271414	LOWER HALF-BEARING	$42.90 Order
3	271413	LOWER HALF-BEARING	$47.44 Order
3	271412	LOWER HALF-BEARING	$46.12 Order
4	271589	SHIM WASHER	$52.35 Order
5	271810	CYLINDERS LINER	$645.61 Order
6	281902	TORSION DAMPER	$1,075.11 Order
7	271609	WASHER	$48.22 Order
8	14308074	SCREW	$12.98 Order
9	271592	O.R. GASKET	$21.93 Order
9	294153	O.R. GASKET	$0.00 Order
10	271598	GASKET	$91.93 Order
11	296962	LH SIDE ENGINE PISTON WITH RINGS	$626.38 Order
12	276442 Replaced by: #805291	CONNECTING ROD SHAFT AND CAP ASSEMBLY	$0.00 Order
12	297700 Replaced by: #805291	CONNECTING ROD SHAFT AND CAP ASSEMBLY	$0.00 Order
12	805291	CONNECTING ROD SHAFT AND CAP ASSEMBLY	$0.00 Order
13	296961	RH SIDE ENGINE PISTON WITH RINGS	$635.27 Order
14	286954	SEAL RING	$211.24 Order
15	296139	SEAL RING	$160.75 Order
16	287177	OIL SCRAPER RING	$154.99 Order
17	270275	LOCK RING	$43.17 Order
18	270274	PIN	$80.93 Order
20	270249	CONNECTING ROD TIGHTENING SCREW	$0.00 Order
21	271402	CONNECTING ROD HALF-BEARING	$21.61 Order
21	271401	CONNECTING ROD HALF-BEARING	$40.82 Order
21	271403	CONNECTING ROD HALF-BEARING	$39.00 Order
22	292751	CENTRING PIN FOR CONNECTING RODS	$84.39 Order
22	283507	CENTRING PIN FOR CONNECTING RODS	$9.31 Order
22	292751	CENTRING PIN FOR CONNECTING RODS	$84.39 Order
23	277212 Replaced by: #298858	PISTONS COOLING NOZZLE	$0.00 Order
23	298858	PISTONS COOLING NOZZLE	$0.00 Order
24	277213 Replaced by: #298859	PISTONS COOLING NOZZLE	$0.00 Order
24	298859	PISTONS COOLING NOZZLE	$0.00 Order
25	315493	SCREW	$0.00 Order
26	176396	THREADED PLUG	$39.23 Order
27	259917	O.R. GASKET	$15.09 Order
28	301753	BUSHING	$0.00 Order
