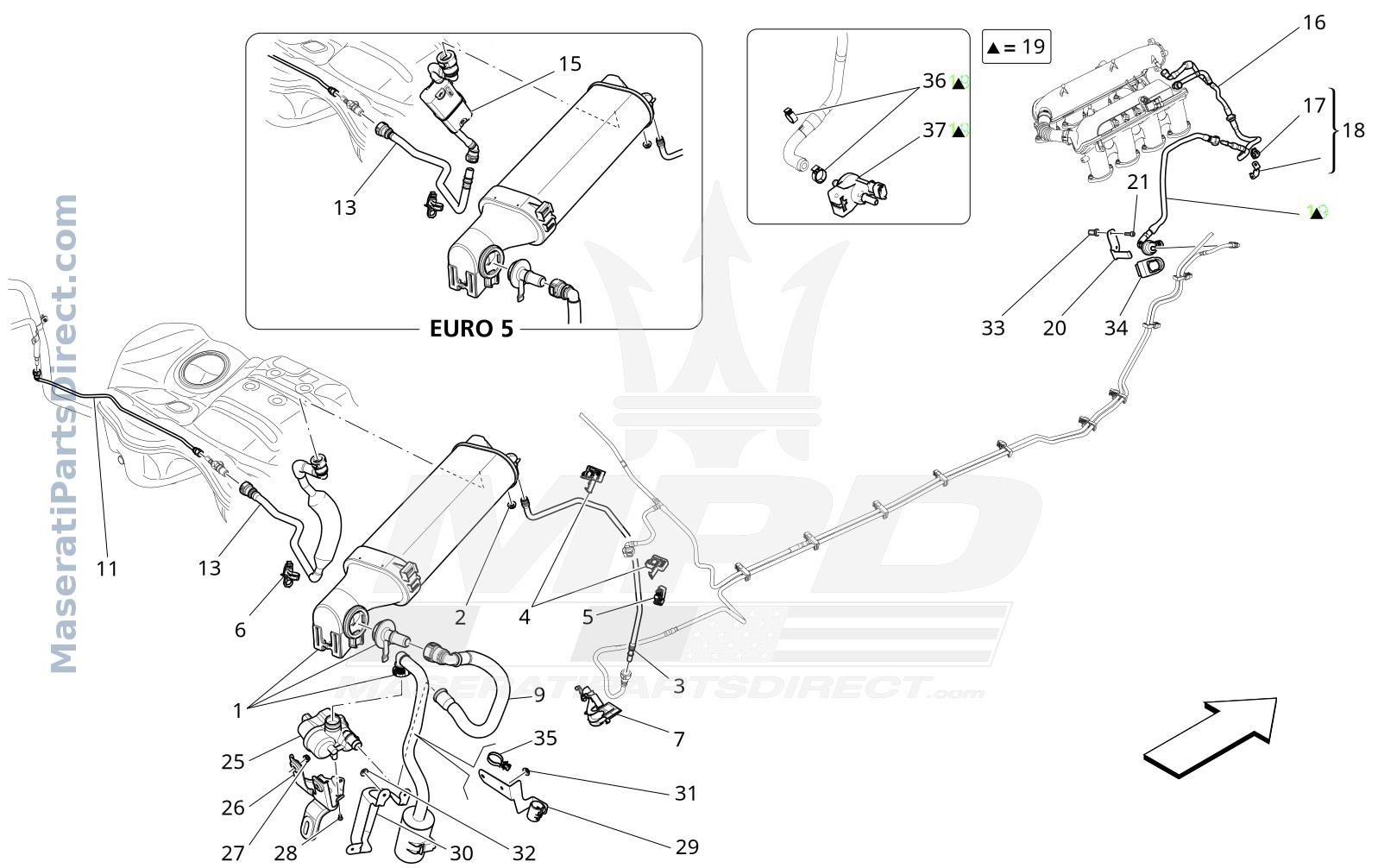

01.44 - 2 - FUEL VAPOUR RECIRCULATION SYSTEM

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670030583	FUEL VAPOUR FILTER	$198.81 In Stock
2	675000114	NUT	$8.00 Order
3	670003253	PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	$60.55 Order
4	675000069	CLIP	$9.84 Order
5	675000055	CLIP	$8.64 Order
6	670030850	BRACKET	$13.88 Order
7	670007068	CLIP	$20.28 Order
9	670003287	PIPE FROM FUEL VAPOUR FILTER TO DIAGNOSTIC PUMP	$52.16 Order
11	670005215	VAPOUR PIPE	$71.72 Order
13	670030557	VAPOUR PIPE	$126.47 Order
15	670030581 Replaced by: #670031056	VENT PIPE	$0.00 Order
15	670031056	VENT PIPE	$217.60 Order
16	670003142	PIPE BETWEEN UNION AND INTAKE MANIFOLD	$372.79 $316.87 In Stock
17	675000132	CLIP	$6.93 Order
18	670005873	BRACKET ASSEMBLY	$30.83 Order
19	670005259 Replaced by: #673013158	PIPE BETWEEN VALVE AND UNION	$0.00 Order
19	673013158	PIPE BETWEEN VALVE AND UNION	$297.99 Order
20	670007135	BRACKET	$15.89 Order
21	675000242	SCREWM6X25	$11.52 Order
25	670002246	DIAGNOSTICS PUMP	$197.91 In Stock
26	670001415	REAR CONSOLE REAR BRACKET	$65.27 Order
27	675000114	NUT	$8.00 Order
28	675000195	SCREWM5X12	$10.00 Order
29	670030588	BRACKET	$40.74 Order
30	670030891	HEAT SHIELD	$55.45 Order
31	675000114	NUT	$8.00 Order
32	670030917	PLATE	$8.64 Order
33	675000576	RIVET	$8.64 Order
34	670007319	FLEXIBLE PAD	$22.52 Order
35	670031653	CLIP	$188.21 Order
36	675001978	COLLAR	$10.00 Order
37	673016769	CANISTER VALVE	$70.49 In Stock
