08.60 - 9 - MAIN WIRING

Genuine Maserati Parts

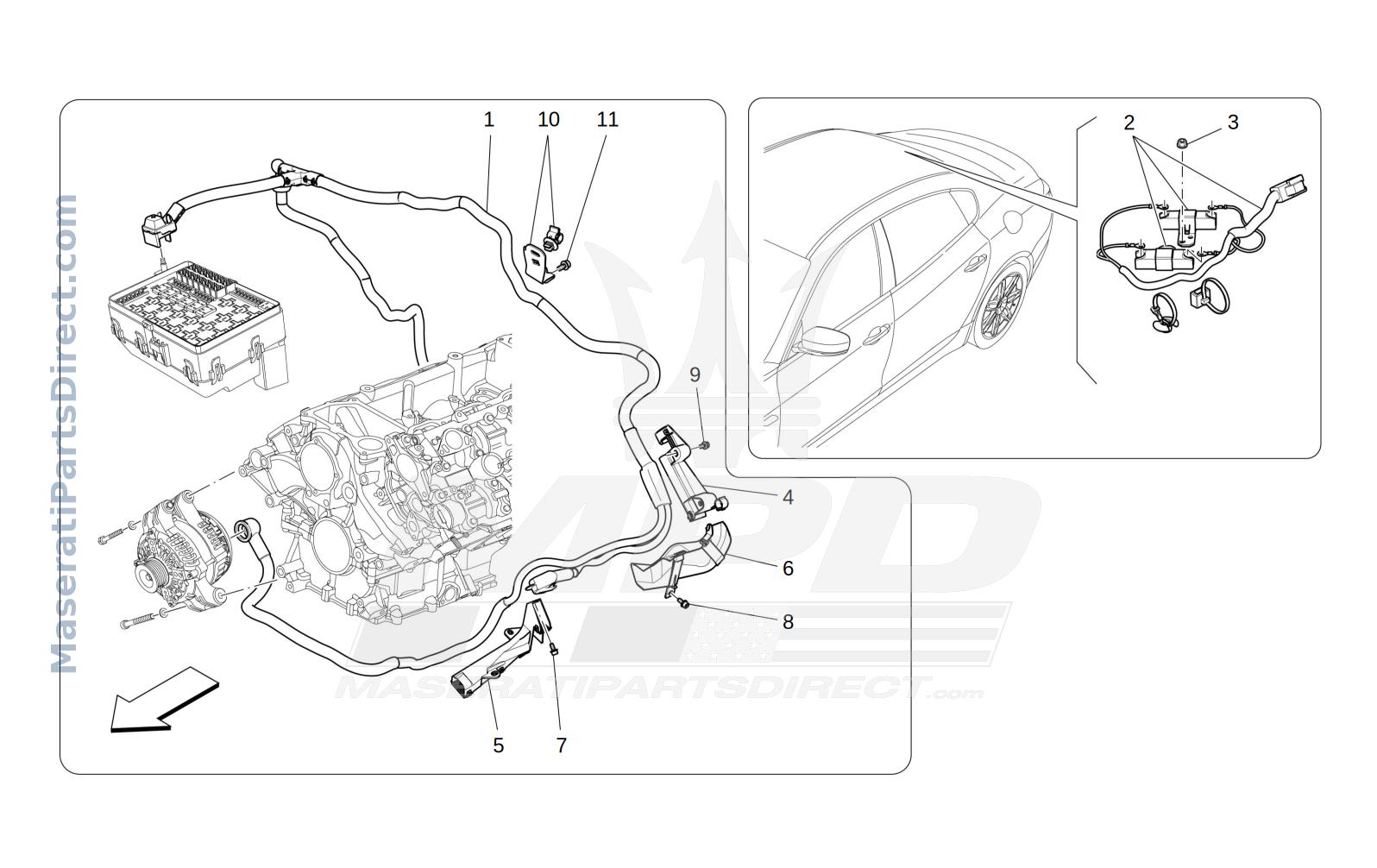

08.60 - 9 - MAIN WIRING Diagram

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price	Qty
1	307118 Replaced by: #313098.0	ALTERNATOR TO STARTER MOTOR CONNECTING CABLE	$0.00 Order
1	313098	ALTERNATOR TO STARTER MOTOR CONNECTING CABLE	$747.18 Order
2	670007155	RESISTORS CABLES ASSEMBLY	$212.12 Order
2	670104011	RESISTORS CABLES ASSEMBLY	$254.24 Order
2	670007155	RESISTORS CABLES ASSEMBLY	$212.12 Order
2	670104011	RESISTORS CABLES ASSEMBLY	$254.24 Order
3	675000449	NUTM5	$9.24 Order
4	295775	CABLE GUIDE	$91.56 Order
5	293632	CABLE GUIDE	$85.78 Order
6	295776	CABLE GUIDE	$69.60 Order
7	231616	SCREWM6X14	$9.20 Order
8	231616	SCREWM6X14	$9.20 Order
9	231616	SCREWM6X14	$9.20 Order
10	287928 Replaced by: #834336.0	BRACKET ASSEMBLY	$0.00 Order
10	834336	BRACKET ASSEMBLY	$0.00 Order
11	231616	SCREWM6X14	$9.20 Order

08.60 - 9 - MAIN WIRING

Be the first to review this product

In stock

SKU

Qu2014-08-60-9-main-wiring-v8530hp

All parts for MAIN WIRING

MAIN WIRING - Complete Parts Group

More Information

More Information
SVG Path	Qu2014-08-60-9-main-wiring-v8530hp.svg
SVG Width	798.000000
SVG Height	503.301000
