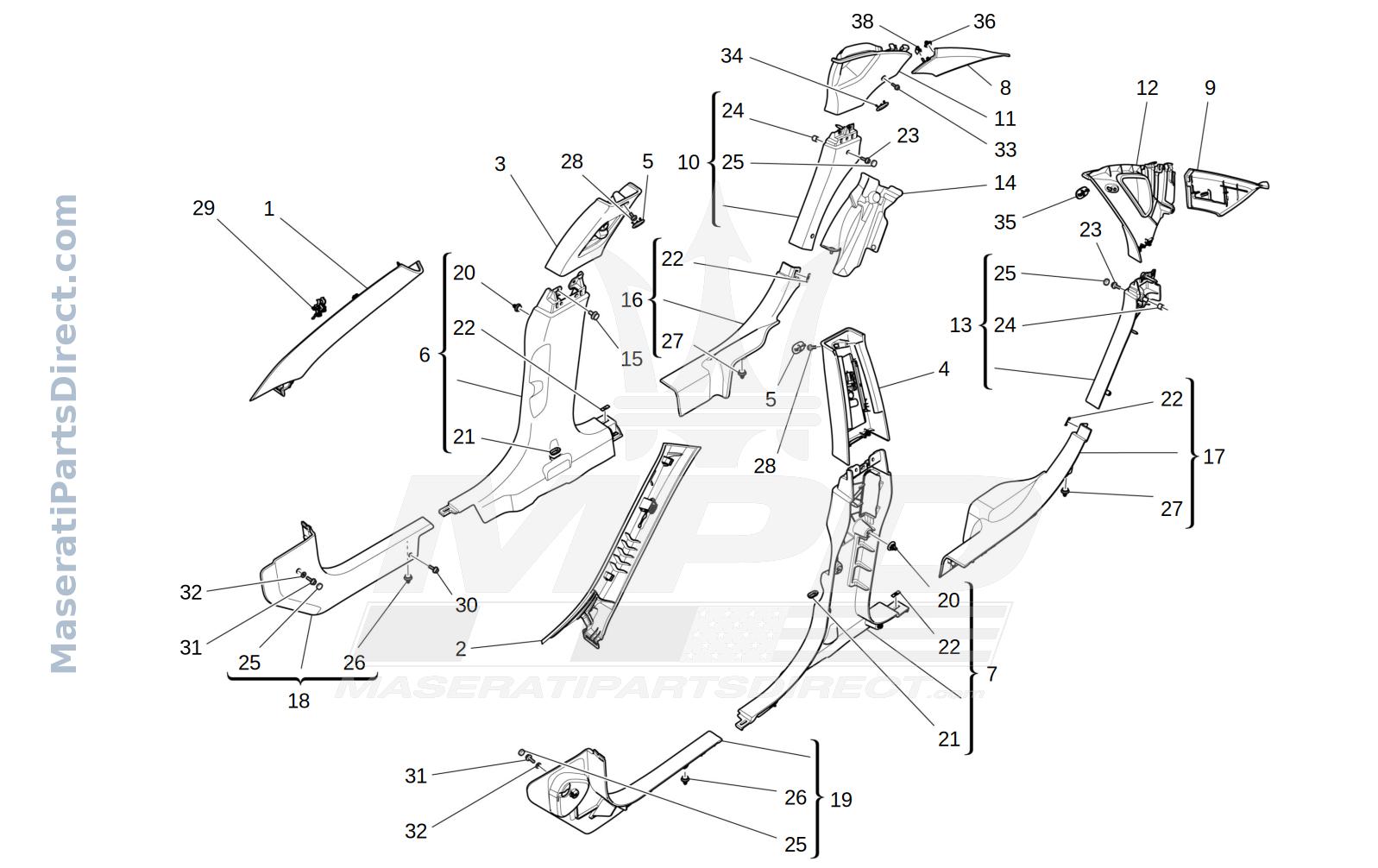

09.44 - 2 - PASSENGER COMPARTMENT B PILLAR TRIM PANELS AND SIDE PANELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	FRONT RH PILLAR COVER ASSEMBLY	$0.00 Order
2	custom	FRONT LH PILLAR COVER ASSEMBLY	$0.00 Order
3	custom	RH UPPER CENTRAL PILLAR COVER GUARDCheck with your subsidiary, through network text, whether the opposite side component must be ordered as well	$0.00 Order
4	custom	LH UPPER CENTRAL PILLAR COVER GUARDCheck with your subsidiary, through network text, whether the opposite side component must be ordered as well	$0.00 Order
5	custom	COVER CAP ON PILLAR AIRBAG FASTENER	$0.00 Order
6	custom	RH LOWER CENTRAL PILLAR COVER GUARD	$0.00 Order
7	custom	LH LOWER CENTRAL PILLAR COVER GUARD	$0.00 Order
8	custom	RH UPPER REAR PILLAR COVER GUARD	$0.00 Order
9	custom	LH UPPER REAR PILLAR COVER GUARD	$0.00 Order
10	custom	RH LOWER REAR PILLAR COVER GUARD	$0.00 Order
11	custom	RH UPPER REAR PILLAR COVER GUARD	$0.00 Order
12	custom	LH UPPER REAR PILLAR COVER GUARD	$0.00 Order
13	custom	LH LOWER REAR PILLAR COVER GUARD	$0.00 Order
14	custom	RH WHEELHOUSE INTERNAL GUARD	$0.00 Order
15	675000294	PIN	$11.15 Order
16	custom	RH REAR KICK PLATE	$0.00 Order
17	custom	LH REAR KICK PLATE	$0.00 Order
18	custom	RH UNDERDASHBORAD COVER	$0.00 Order
19	custom	LH UNDERDASHBORAD COVER	$0.00 Order
20	673001064	PIN	$10.14 Order
21	673001065	BELT LOOP TRIM	$19.15 Order
22	68700200	CLIP	$23.43 Order
23	675000245	SCREWM6X55	$11.15 Order
23	675000246	SCREW	$11.52 Order
24	673001068	BUSHING	$11.10 Order
25	custom	CAP FOR SCREW	$0.00 Order
26	673001064	PIN	$10.14 Order
27	673001064	PIN	$10.14 Order
28	675000432	SCREWM6X20	$12.30 Order
29	670003916	LINING FASTENER	$0.00 Order
30	675000246	SCREW	$11.52 Order
31	675000455	SCREWM5x30	$10.62 Order
32	675000440	WASHERD.5-12	$14.00 Order
33	675000432	SCREWM6X20	$12.30 Order
34	custom	COVER CAP ON REAR RH PILLAR AIRBAG FASTENER	$0.00 Order
35	custom	COVER CAP ON REAR LH PILLAR AIRBAG FASTENER	$0.00 Order
36	670006798	CLIP	$11.10 Order
38	673002721	CLIP	$17.78 Order
