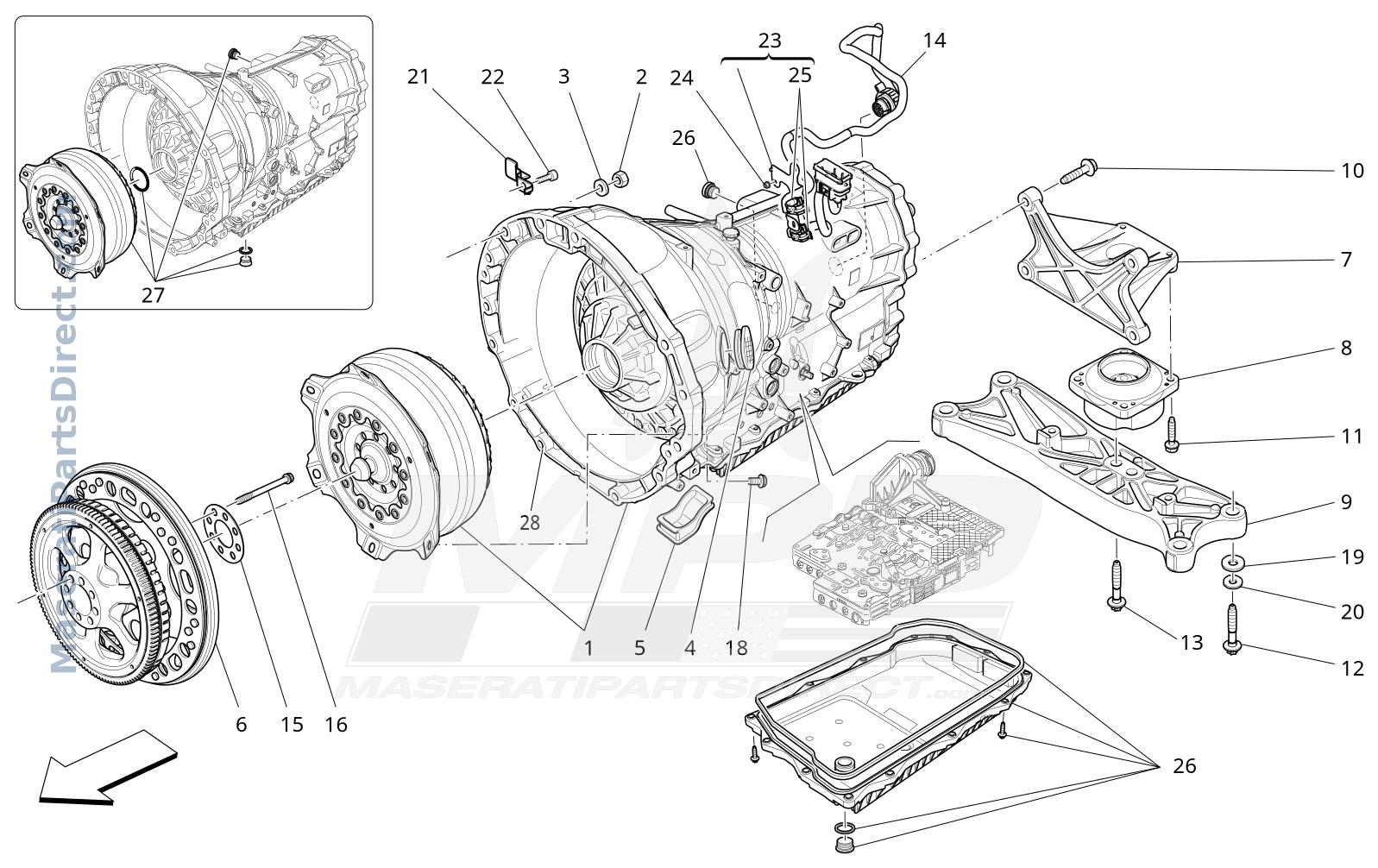

03.10 - 1 - GEARBOX HOUSINGS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670002340	AUTOMATIC GEARBOX ASSEMBLY	$12,837.42 Order
2	675000184	NUT	$4.68 Order
3	675000098	WASHERD.10.2-22X2	$8.00 Order
4	670003520	SIDE PLUG	$22.52 Order
5	670003521	LOWER PLUG	$20.28 Order
6	673005706	ENGINE FLYWHEEL ASSEMBLY	$0.00 Order
7	670001542	GEARBOX MOUNTING BRACKET	$331.59 Order
8	675000031	GEARBOX SIDE SUSPENSION BUSHING	$110.52 Order
9	670003954	GEARBOX MOUNTING CROSS MEMBER	$619.06 Order
10	675000120	SCREW	$9.73 Order
11	675000540	SCREWM8X40	$11.55 Order
12	675000145	SCREWM10X55	$10.16 Order
13	675000145	SCREWM10X55	$10.16 Order
14	670007402	AUTOMATIC GEARBOX WIRING HARNESS	$1,438.39 Order
15	670002257	SHIM	$16.17 Order
16	670002933	SCREW	$14.00 Order
18	670005384	SCREW	$9.20 Order
19	675000247	WASHERD.10.2-25X3	$9.73 Order
20	675000254	WASHERD.10-20X1.9	$6.21 Order
21	670005078	BRACKET	$15.89 Order
22	675000191	SCREWM6X14	$11.55 Order
23	670005501	BRACKET ASSEMBLY	$39.68 Order
24	675000093	NUTM6	$9.73 Order
25	675000500	CLIP	$0.00 Order
26	673003178	OIL SUMP KIT	$946.28 Order
27	673003836	CONVERTER	$3,162.13 Order
