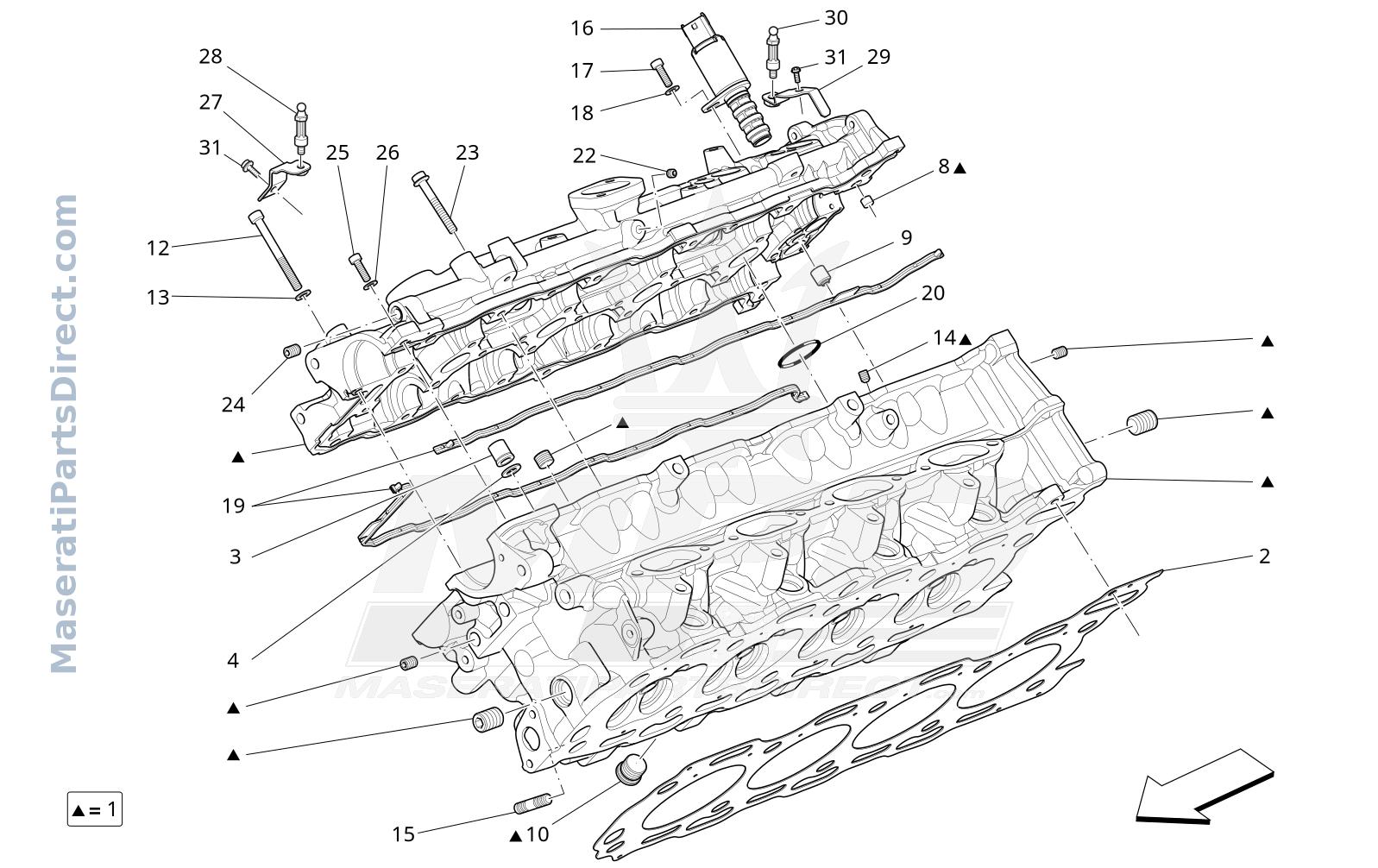

01.20 - 1 - RH CYLINDER HEAD

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	299651	RH HEAD ASSEMBLY	$5,107.88 Order
2	278645	RH HEAD GASKET	$671.03 Order
3	271125	NUT	$15.89 Order
4	271129	WASHERD.12.25-23X2.5	$10.62 Order
8	276793	DOWEL	$15.89 Order
9	200458	NONRETURN VALVE	$25.38 Order
10	290727	THREADED PLUG	$20.77 Order
12	296759	SCREWM6X45	$8.28 Order
13	272491 Replaced by: #296075	WASHER	$0.00 Order
13	296075	WASHERD.13X5.8	$22.86 Order
14	256827	DOWEL	$26.13 Order
14	226414	DOWEL	$23.43 Order
15	272605	STUD	$10.76 Order
15	292363 Replaced by: #794716	STUD	$0.00 Order
15	272605	STUD	$10.76 Order
15	292363 Replaced by: #794716	STUD	$0.00 Order
15	272605	STUD	$10.76 Order
15	292363 Replaced by: #794716	STUD	$0.00 Order
15	306360	STUD	$11.55 Order
15	794716	STUD	$50.11 Order
16	296017 Replaced by: #801187	OIL PRESSURE CHECK VALVE	$0.00 Order
17	14304224	SCREW	$8.64 Order
18	11181574	WASHERD.5.3-11X0.9	$8.64 Order
19	295061 Replaced by: #673009080	RH HEAD COVER GASKET	$0.00 Order
19	673009080	RH HEAD COVER GASKET	$58.53 Order
20	166657	O.R. GASKET	$8.28 Order
22	199760	THREADED PLUG	$6.21 Order
23	14303821	SCREW	$32.76 Order
24	277903	THREADED PLUG	$11.52 Order
25	231620	SCREWM6X25	$5.58 In Stock
26	296075	WASHERD.13X5.8	$22.86 Order
27	670005777	RH FRONT BRACKET	$45.12 Order
28	670005779	BALL PIN	$15.89 Order
29	670005781	RH REAR BRACKET	$45.12 Order
30	670005779	BALL PIN	$15.89 Order
31	675000172	SCREW	$8.28 Order
