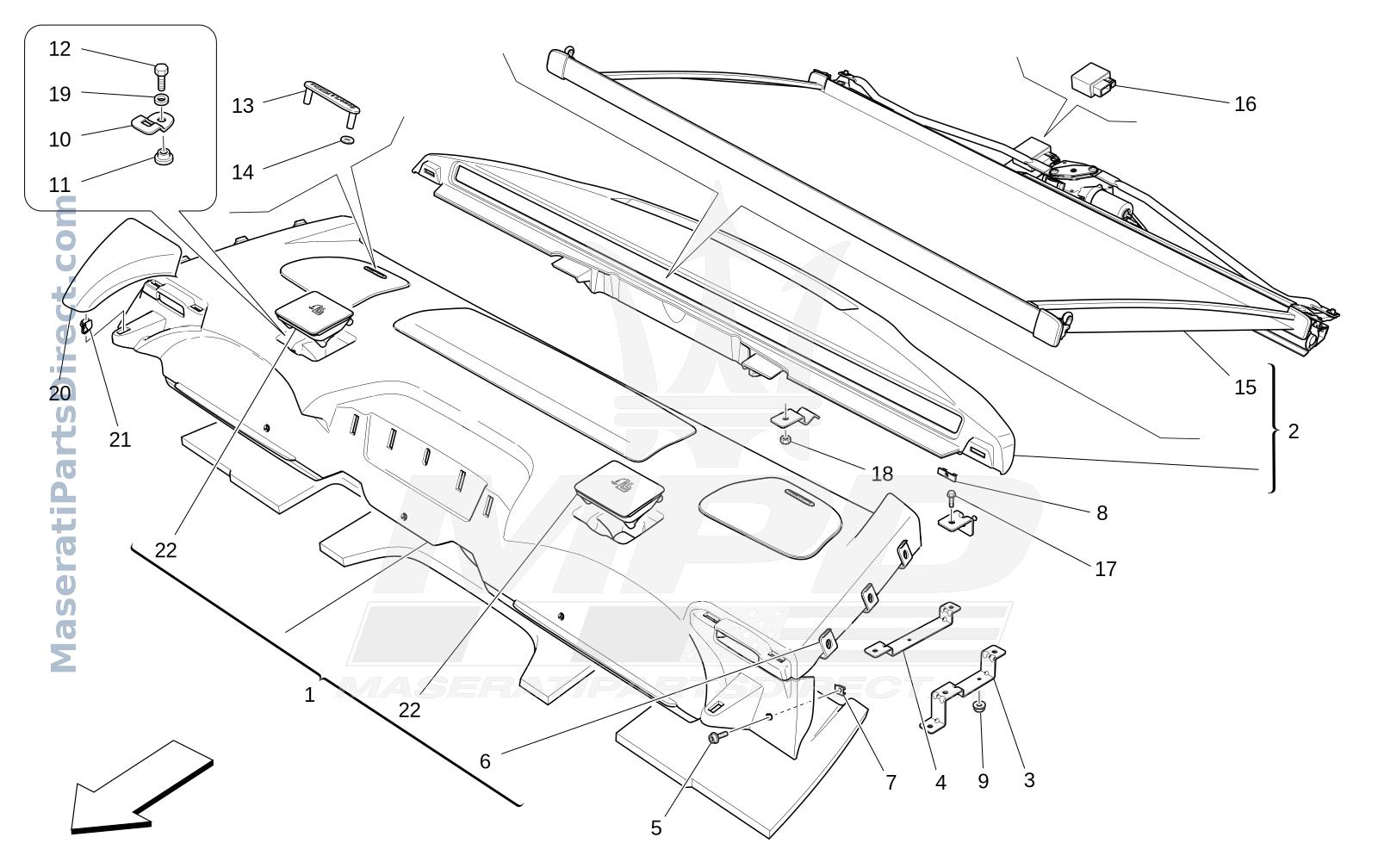

09.46 - 4 - REAR PARCEL SHELF

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	PARCEL SHELF ASSEMBLY	$0.00 Order
2	custom	REAR POWER SUNSHADE ASSEMBLY	$0.00 Order
3	673001073	BRACKET	$22.86 Order
4	673001072	BRACKET	$25.00 Order
5	675000480	SCREW	$8.64 Order
6	67202800	CLIP	$10.40 Order
7	675000408	BLOCK	$12.30 Order
8	68700200	CLIP	$23.43 Order
9	675000093	NUTM6	$9.73 Order
10	670006661	ISOFIX BRACKET	$34.50 Order
11	670006660	SPACER	$25.46 Order
12	670008750	SCREW	$15.65 Order
13	673001085	BOWERS WILKINS PLATE	$95.36 Order
14	673001075	RETAINING CLIP	$11.52 Order
15	custom	REAR ELECTRIC SUNSHADE	$0.00 Order
16	673002031	REAR WINDOW SUNSHADE ECU	$586.61 Order
17	011567624	SCREWM6X14	$0.00 Order
18	675000093	NUTM6	$9.73 Order
19	675000395	WASHERD.8.15-17X2	$9.20 Order
20	custom	LH PLATE	$0.00 Order
20	custom	LH PLATE	$0.00 Order
21	673002721	CLIP	$17.78 Order
22	custom	ISOFIX PLUG	$0.00 Order
