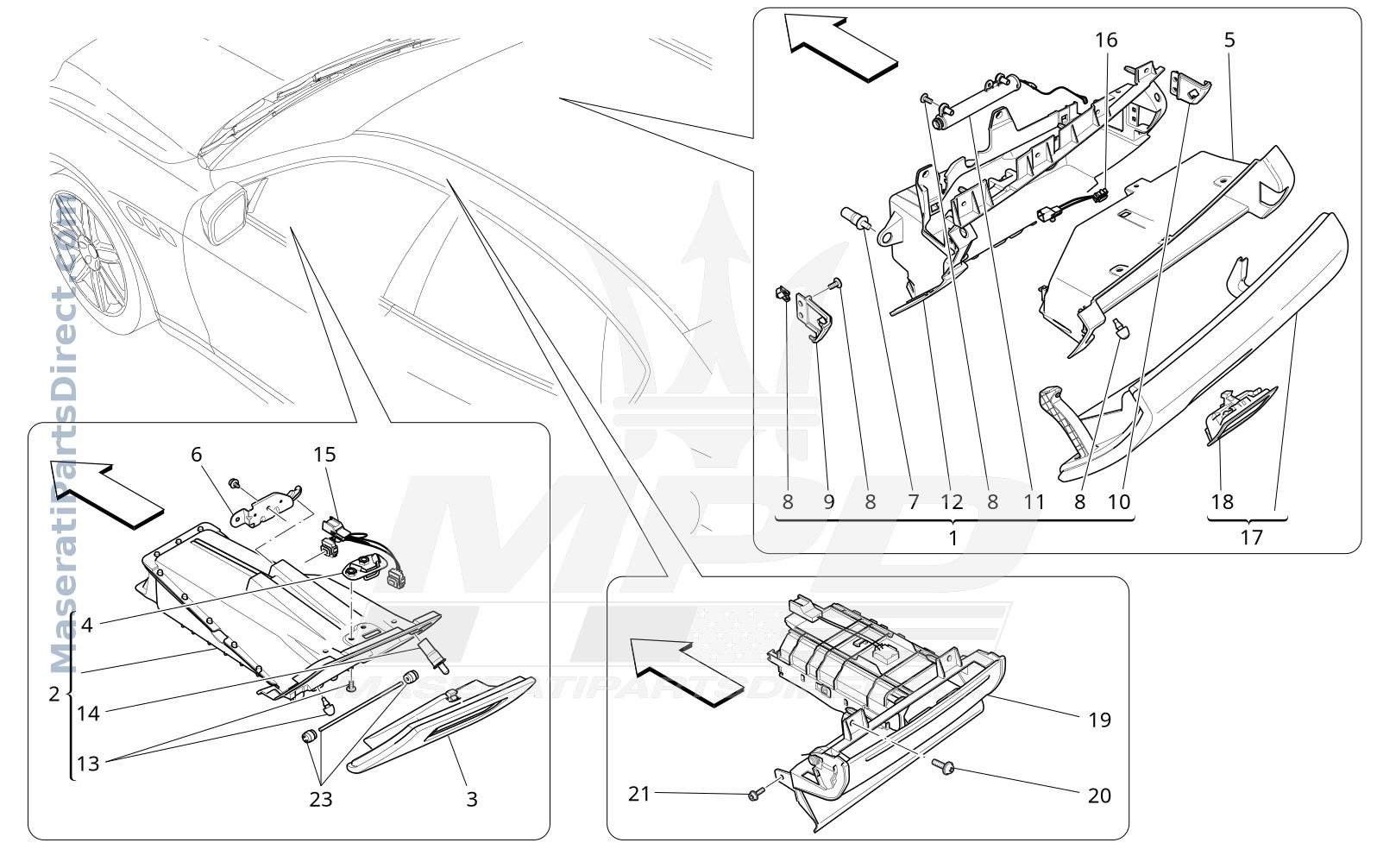

09.52 - 2 - GLOVE COMPARTMENTS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673001299	GLOVE BOX - FIXED PARTS	$342.62 Order
2	673001334	DRIVER GLOVE BOX - FIXED PARTS	$463.43 Order
3	custom	DRIVER GLOVE BOX - MOBILE PARTS	$0.00 Order
4	673001337	GLOVE BOX LOCK	$103.25 Order
5	custom	GLOVE BOX UPPER COVER	$0.00 Order
6	custom	FASTENING BRACKET BETWEEN COMPARTMENT AND CROSS MEMBER	$0.00 Order
7	673001307	GLOVE BOX OPENING SWITCH	$30.16 Order
8	673001305	GLOVE BOX COMPARTMENT FIXING KIT	$50.30 Order
9	673001303	LH BRACKET	$0.00 Order
10	673001302	RH BRACKET	$13.58 Order
11	673001301	GLOVE BOX RESTRAINER	$93.55 Order
12	673001300	GLOVE BOX	$155.63 Order
13	673001339	GLOVE BOX COMPARTMENT FIXING KIT	$22.65 Order
14	673001307	GLOVE BOX OPENING SWITCH	$30.16 Order
15	675000427	COURTESY LIGHT BULB	$49.14 Order
15	673001397 Replaced by: #53117734.0	DRIVER SIDE GLOVE BOX COMPARTMENT LED	$0.00 Order
16	673001298 Replaced by: #53395894.0	PASSENGER SIDE GLOVE BOX COMPARTMENT LED	$0.00 Order
16	675000656	PASSENGER SIDE GLOVE BOX COMPARTMENT LED	$0.00 Order
17	custom	GLOVE BOX - MOBILE PARTS	$0.00 Order
18	custom	DRAWER HANDLE	$0.00 Order
19	custom	MOBILE PHONE COMPARTMENT	$0.00 Order
20	670006374	SCREW	$12.41 Order
21	675000308	SCREWM5X14	$13.58 Order
23	673009993	DRIVER GLOVE BOX FASTENING KIT	$103.59 Order
