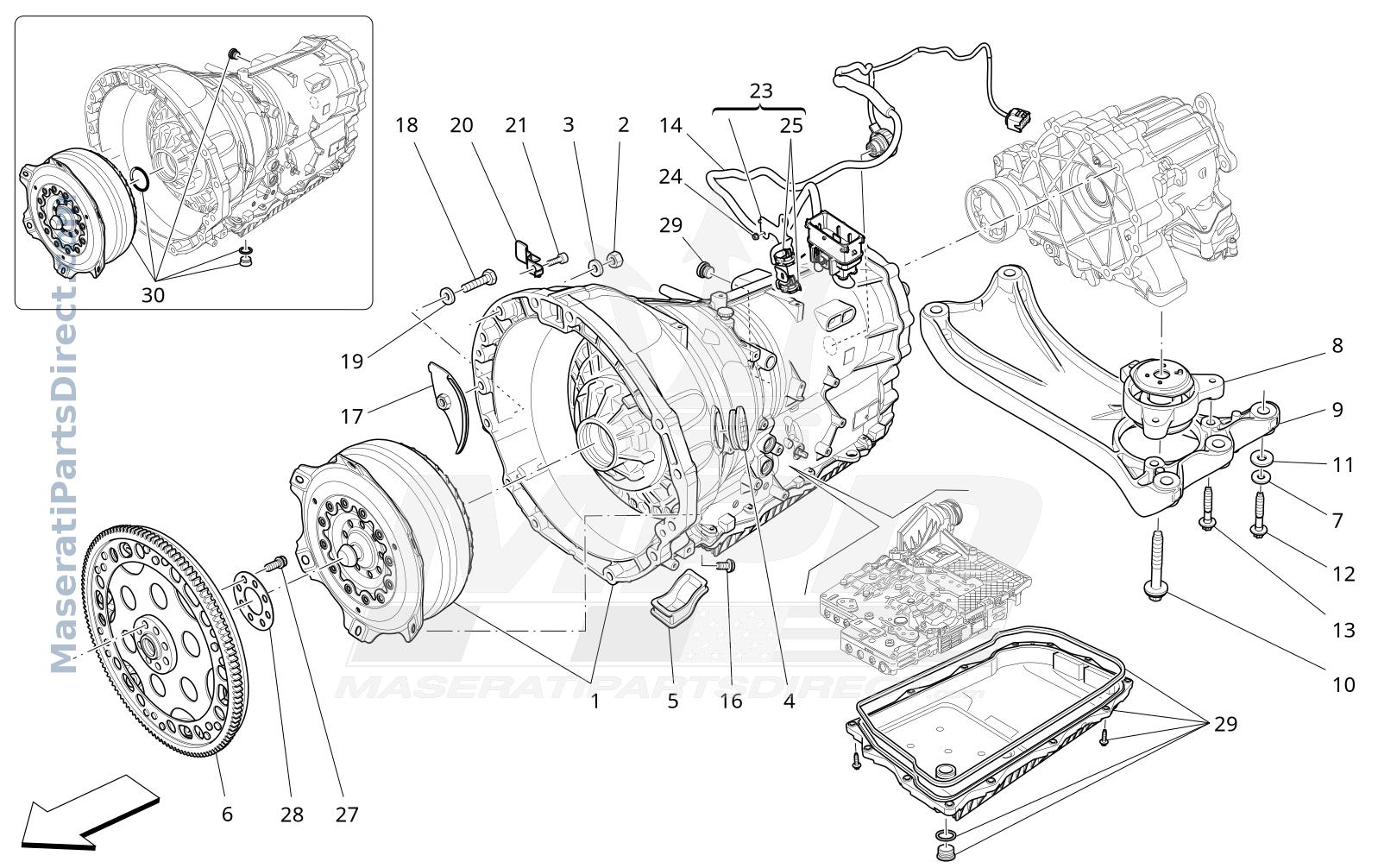

03.10 - 3 - GEARBOX HOUSINGS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670031353	AUTOMATIC GEARBOX ASSEMBLY	$0.00 Order
3	675000098	WASHERD.10.2-22X2	$8.00 Order
4	670003520	SIDE PLUG	$22.52 Order
5	670003521	LOWER PLUG	$20.28 Order
6	670003244 Replaced by: #673010357.0	ENGINE FLYWHEEL ASSEMBLY	$0.00 Order
6	673010357	ENGINE FLYWHEEL ASSEMBLY	$1,606.50 Order
7	675000254	WASHERD.10-20X1.9	$6.21 Order
8	670035767 Replaced by: #670106865.0	GEARBOX SIDE SUSPENSION BUSHING	$0.00 Order
8	670106865	GEARBOX SIDE SUSPENSION BUSHING	$268.02 Order
9	670003632	GEARBOX MOUNTING CROSS MEMBER	$477.46 Order
10	670003988	SCREW	$17.50 Order
11	675000247	WASHERD.10.2-25X3	$9.73 Order
12	675000145	SCREWM10X55	$10.16 Order
13	670035590	SCREW	$13.28 Order
14	670007401	AUTOMATIC GEARBOX WIRING HARNESS	$286.40 Order
16	670005384	SCREW	$9.20 Order
17	670003684	CLOSURE PLATE	$22.26 Order
18	675000380	SCREWM8X55	$11.55 Order
19	675000378	WASHERD.8.4-17X1.6	$9.24 Order
20	670005079	BRACKET	$18.87 Order
21	11567624	SCREWM6X14	$9.20 Order
23	670005501	BRACKET ASSEMBLY	$39.68 Order
24	675000093	NUTM6	$9.73 Order
25	675000500	CLIP	$0.00 Order
27	670002932	SCREW	$10.16 Order
28	670002257	SHIM	$16.17 Order
29	673003178	OIL SUMP KIT	$946.28 Order
30	673003836	CONVERTER	$3,162.13 Order
