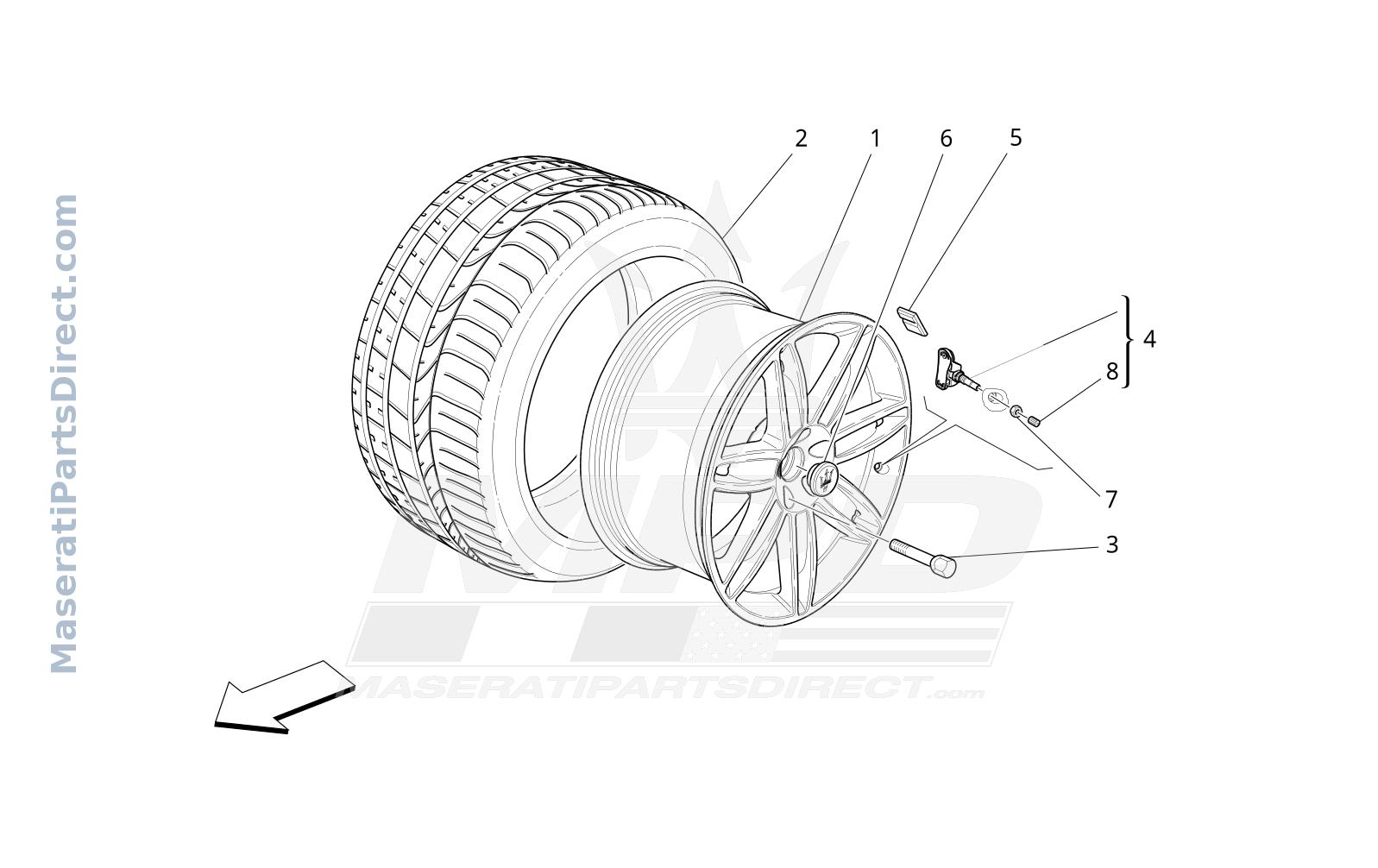

06.00 - 1 - WHEELS AND TYRES

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	980156641	FRONT WHEEL RIM 20''	$3,424.91 Order
1	980157017	FRONT WHEEL RIM 20''	$930.88 Order
1	670080202	FRONT WHEEL RIM 20''	$929.73 Order
1	980156723	FRONT WHEEL RIM 20''	$1,145.37 Order
1	980156635	FRONT WHEEL RIM 21"	$2,931.08 Order
1	980156720	FRONT WHEEL RIM 21"	$3,087.14 Order
1	980156642	REAR WHEEL RIM 20"	$3,959.13 Order
1	980157022	REAR WHEEL RIM 20"	$1,000.22 Order
1	670080205	REAR WHEEL RIM 20"	$897.22 Order
1	980156724	REAR WHEEL RIM 20"	$1,188.05 Order
1	980156636	REAR WHEEL RIM 21"	$2,883.67 Order
1	980156721	REAR WHEEL RIM 21"	$2,915.12 Order
2	custom	20" FRONT TYRE245/35 R20 95W XL W270SZ - PIRELLI WINTER SOTTOZERO 2	$0.00 Order
2	custom	20" FRONT TYRE245/40ZR20 99Y XL MGT PIRELLI P ZERO	$0.00 Order
2	custom	20" FRONT TYRE245/40R20 99W XL MGT PIRELLI WINTER SOTTOZERO 3	$0.00 Order
2	custom	20" REAR TYRE285/35 R20 104W XL W270 - PIRELLI WINTER SOTTOZERO 2	$0.00 Order
2	custom	20" REAR TYRE285/35ZR20 100Y MGT PIRELLI P ZERO	$0.00 Order
2	custom	20" REAR TYRE285/35R20 100W MGT PIRELLI WINTER SOTTOZERO 3	$0.00 Order
2	670005934 Replaced by: #670031624	21" FRONT TYRE	$0.00 Order
2	custom	21" FRONT TYRE245/35R21 96W XL MGT PIRELLI WINTER SOTTOZERO 3	$0.00 Order
2	670005750	21" FRONT TYRE	$0.00 Order
2	670005771	21" REAR TYRE	$0.00 Order
2	670005936 Replaced by: #670031336	21" REAR TYRE	$0.00 Order
2	custom	21" REAR TYRE285/30R21 100W XL MGT PIRELLI WINTER SOTTOZERO 3	$0.00 Order
3	custom	WHEEL STUD	$0.00 Order
4	670034786 Replaced by: #670106084	SENSOR WITH PRESSURE VALVE	$0.00 Order
4	670106084	SENSOR WITH PRESSURE VALVE	$0.00 Order
5	675000118	WHEEL BALANCE WEIGHT 0.13 LB B	$21.24 Order
6	custom	WHEEL RIM CUP	$0.00 Order
7	670005747	NUT	$12.71 Order
8	673003147	VALVE PLUG	$19.53 Order
