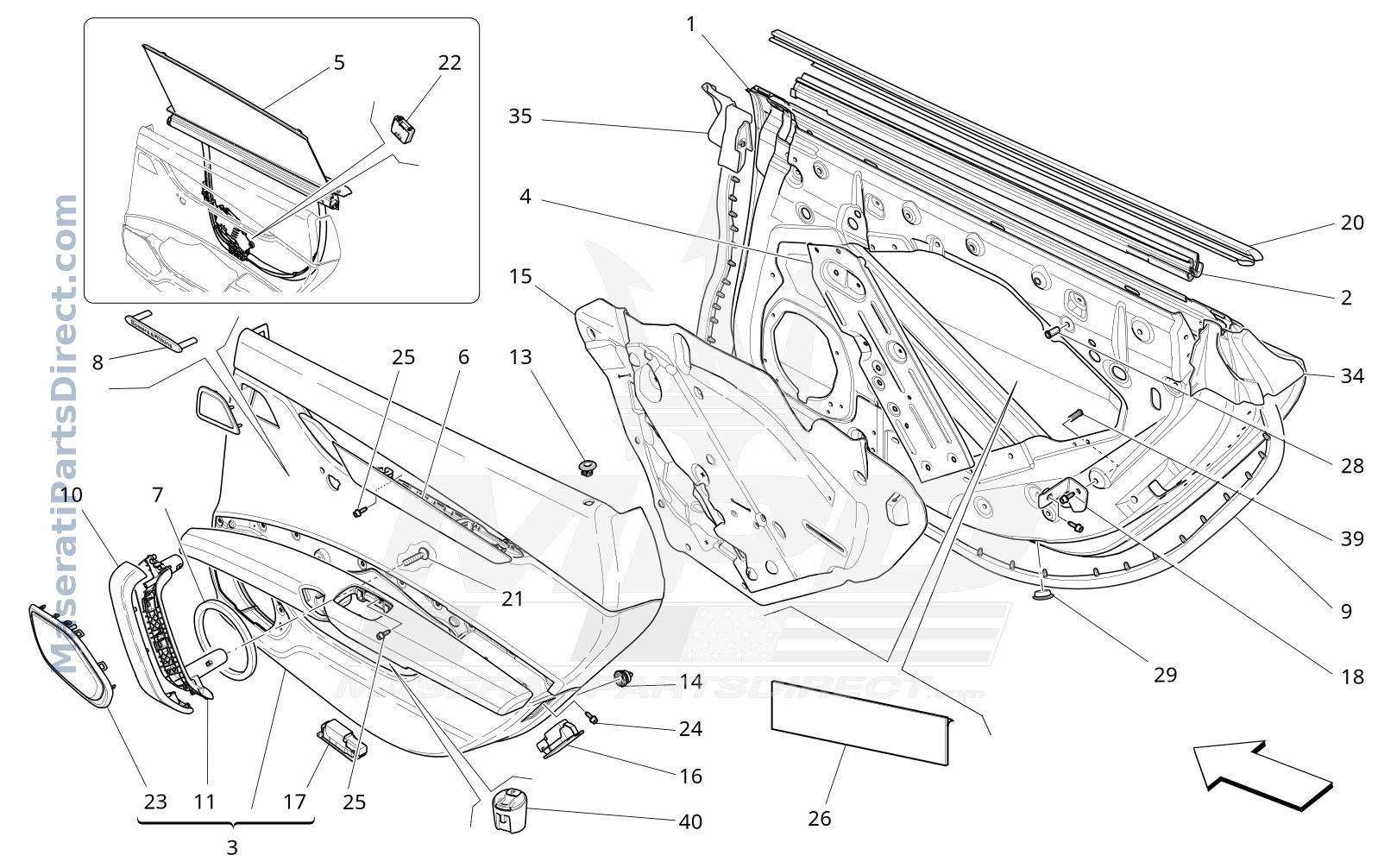

09.32 - 2 - REAR DOORS: TRIM PANELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673008060 Replaced by: #673017130	LH REAR DOOR ASSEMBLY	$0.00 Order
1	673017130	LH REAR DOOR ASSEMBLY	$3,830.05 Order
1	673008059	RH REAR DOOR ASSEMBLY	$3,381.70 Order
2	custom	LH REAR DOOR GLASS SCRAPER GASKET	$0.00 Order
2	custom	RH REAR DOOR GLASS SCRAPER GASKET	$0.00 Order
3	custom	REAR LH DOOR PANEL ASSEMBLY	$0.00 Order
3	custom	REAR RH DOOR PANEL ASSEMBLY	$0.00 Order
4	670108199	LH REAR DOOR CENTRAL REINFORCEMENT	$0.00 Order
4	670108197	RH REAR DOOR CENTRAL REINFORCEMENT	$0.00 Order
5	custom	REAR LH SUNSHADE	$0.00 Order
5	custom	REAR LH SUNSHADE	$0.00 Order
5	custom	REAR LH SUNSHADE	$0.00 Order
5	custom	REAR LH SUNSHADE	$0.00 Order
6	custom	LH DOOR PANEL INTERNAL TRIM	$0.00 Order
6	custom	RH DOOR PANEL INTERNAL TRIM	$0.00 Order
7	673001453	ADHESIVE GASKET	$63.38 Order
8	673001459	BOWERS WILKINS PLATE	$114.84 Order
9	670101781	LH REAR DOOR GASKET	$171.78 Order
9	670101778	RH REAR DOOR GASKET	$291.05 Order
10	custom	LH HANDLE COVER TRIM PLATE	$0.00 Order
10	custom	RH HANDLE COVER TRIM PLATE	$0.00 Order
11	custom	LH HANDHOLD FRAME	$0.00 Order
11	custom	LH HANDHOLD FRAME	$0.00 Order
13	673001442	LH REAR DOOR BUSHING	$169.22 Order
13	673001443	RH REAR DOOR BUSHING	$168.89 Order
14	670105966 Replaced by: #670220013	FASTENING PIN	$0.00 Order
14	670108288 Replaced by: #670220013	FASTENING PIN	$0.00 Order
14	670220013	FASTENING PIN	$12.71 Order
15	670038415 Replaced by: #670105569	LH REAR DOOR WATER GUARD	$113.94 Order
15	670105569	LH REAR DOOR WATER GUARD	$113.32 Order
15	670038413 Replaced by: #670105568	RH REAR DOOR WATER GUARD	$0.00 Order
15	670105568	RH REAR DOOR WATER GUARD	$113.32 Order
16	670007082	DOMELIGHT	$69.04 Order
17	675000265	UNDER DOOR LAMP	$11.70 Order
18	670005888	LH BRACKET	$21.24 Order
18	670005887	RH BRACKET	$21.24 Order
20	custom	LH REAR DOOR GLASS SCRAPER GASKET	$0.00 Order
20	custom	RH REAR DOOR GLASS SCRAPER GASKET	$0.00 Order
21	673002001	SCREW	$45.12 Order
22	673003891	REAR DOOR SUNSHADE ECU	$407.60 Order
23	custom	LH LOUD SPEAKER GRILL	$0.00 Order
23	custom	RH LOUD SPEAKER GRILL	$0.00 Order
24	670008293 Replaced by: #670153171	SCREW	$7.65 Order
24	670153171	SCREW	$7.65 Order
25	670008293 Replaced by: #670153171	SCREW	$7.65 Order
25	670153171	SCREW	$7.65 Order
26	670034380	SOUNDPROOFING ELEMENT	$13.28 Order
28	670005149	RIVET	$10.62 Order
29	custom	PLUG	$0.00 Order
34	670101783	REAR GASKET FOR LH DOOR OPENING	$111.23 Order
34	670101780	REAR GASKET FOR RH DOOR OPENING	$190.06 Order
35	670101782	LH REAR GASKET	$124.56 Order
35	670101779	RH REAR GASKET	$189.90 Order
39	670155282	PIN	$11.52 Order
