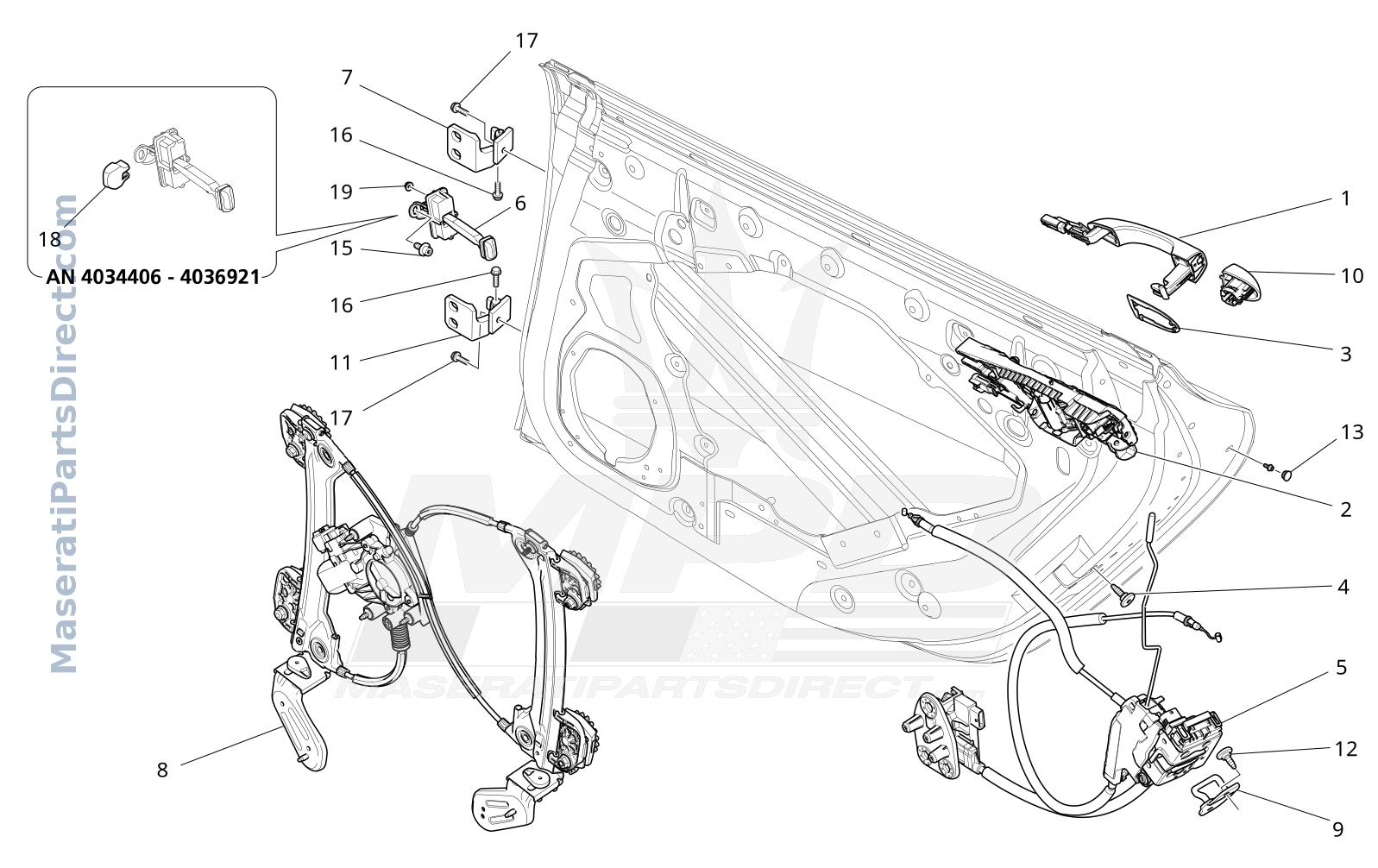

09.33 - 3 - REAR DOORS: MECHANISMS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom Replaced by: #670272681	EXTERNAL DOOR HANDLE	$0.00 Order
1	custom Replaced by: #670272681	EXTERNAL DOOR HANDLE	$0.00 Order
2	custom Replaced by: #670272681	LH EXTERNAL DOOR HANDLE RETAINING BRACKET	$0.00 Order
2	670109521	LH EXTERNAL DOOR HANDLE RETAINING BRACKET	$255.27 Order
2	custom Replaced by: #670272681	RH EXTERNAL DOOR HANDLE RETAINING BRACKET	$0.00 Order
3	670005442	EXTERNAL DOOR HANDLE GASKET	$9.73 Order
4	670005609	SCREW	$15.65 Order
5	custom Replaced by: #670272681	LH REAR DOOR LOCK	$0.00 Order
5	670107785	LH REAR DOOR LOCK	$930.75 Order
5	custom Replaced by: #670272681	RH REAR DOOR LOCK	$0.00 Order
5	670175824	RH REAR DOOR LOCK	$834.63 In Stock
6	670030578	TIE ROD	$71.00 Order
7	675000160	LH UPPER HINGE	$52.55 Order
7	675000162	RH UPPER HINGE	$93.52 Order
8	670102270 Replaced by: #670103665	LH REAR POWER WINDOW	$0.00 Order
8	670103665	LH REAR POWER WINDOW	$859.50 Order
8	670102269 Replaced by: #670103664	RH REAR POWER WINDOW	$0.00 Order
8	670103664	RH REAR POWER WINDOW	$859.50 Order
9	675000573	DOORS LOCK STRIKER	$42.20 Order
10	custom Replaced by: #670272681	DOOR LOCK REVOLVING PLUG TRIM	$0.00 Order
11	675000159	LH LOWER HINGE	$50.43 Order
11	675000161	RH LOWER HINGE	$52.55 Order
12	670009758	SPECIAL SCREW	$6.93 Order
13	custom Replaced by: #670272681	PLUG	$0.00 Order
15	670006984	SCREW	$10.40 Order
16	675000005	SCREWM 8x15	$6.93 Order
17	675000485	SCREWM10	$9.73 Order
18	670101763	TIE ROD COVER	$13.58 Order
19	670006983	NUT	$9.20 Order
