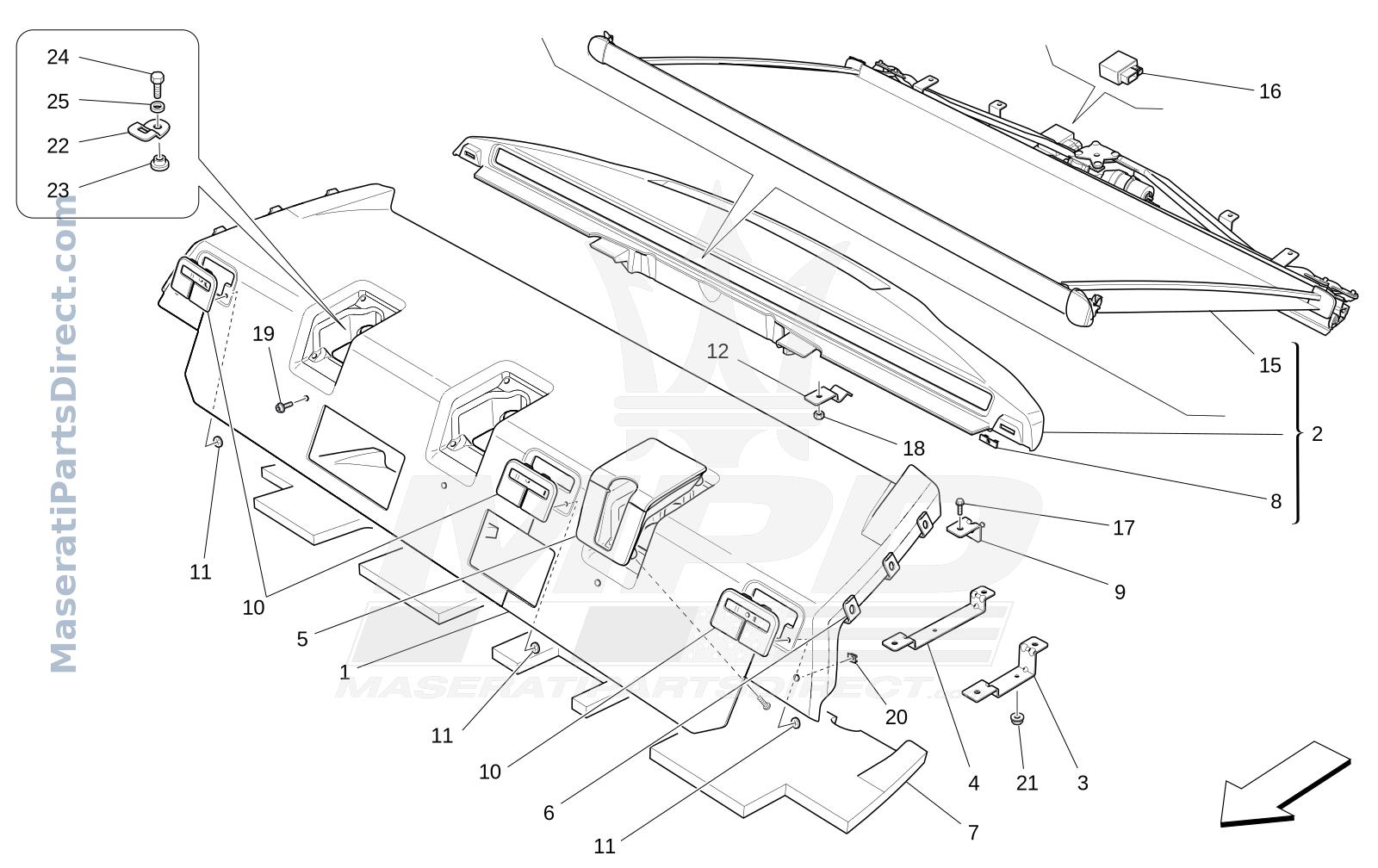

09.46 - 2 - REAR PARCEL SHELF

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	PARCEL SHELF ASSEMBLY	$0.00 Order
2	custom	REAR POWER SUNSHADE ASSEMBLY	$0.00 Order
3	673001073	BRACKET	$22.86 Order
4	673001072	BRACKET	$25.00 Order
5	69925900	ISOFIX PLUG	$50.92 Order
6	67202800	CLIP	$10.40 Order
7	673001076	SOUNDPROOFING KIT	$106.26 Order
8	68700200	CLIP	$23.43 Order
9	673001082	BRACKET WITH PIN	$57.18 Order
10	673001074	BELT LOOP TRIM	$11.51 Order
11	673001075	RETAINING CLIP	$11.52 Order
12	673001081	BRACKET	$34.50 Order
15	custom	REAR ELECTRIC SUNSHADE	$0.00 Order
16	673002031	REAR WINDOW SUNSHADE ECU	$586.61 Order
17	011567624	SCREWM6X14	$0.00 Order
18	675000093	NUTM6	$9.73 Order
19	675000480	SCREW	$8.64 Order
20	675000408	BLOCK	$12.30 Order
21	675000093	NUTM6	$9.73 Order
22	670006661	ISOFIX BRACKET	$34.50 Order
23	670006660	SPACER	$25.46 Order
24	670008750	SCREW	$15.65 Order
25	675000395	WASHERD.8.15-17X2	$9.20 Order
