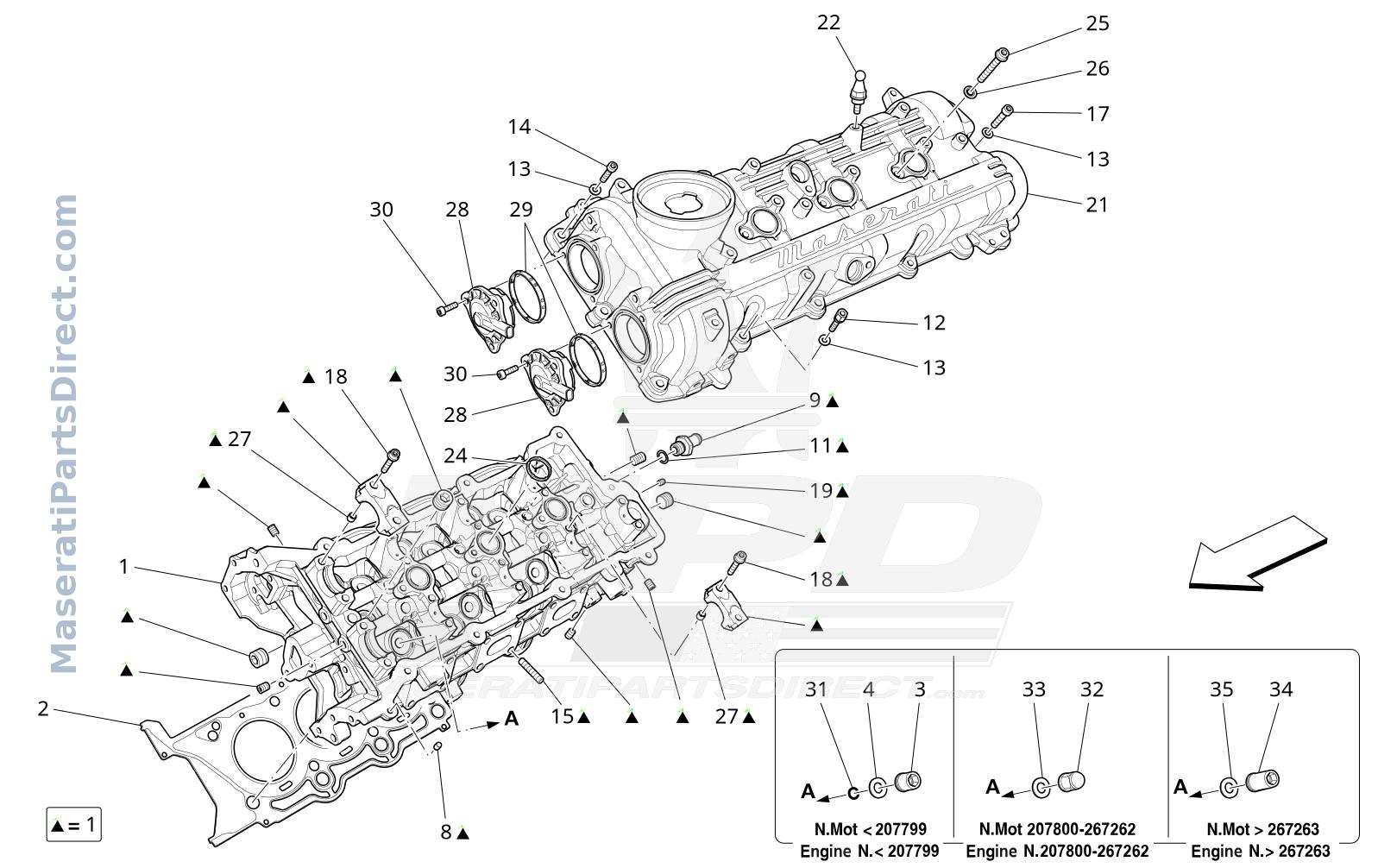

01.21 - 2 - LH CYLINDER HEAD

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	305771	LH HEAD ASSEMBLY	$4,593.63 Order
2	302852 Replaced by: #318132	LH HEAD GASKET	$0.00 Order
2	318132	LH HEAD GASKET	$0.00 Order
3	183524 Replaced by: #303886	NUTM11	$0.00 Order
3	303886	NUT	$0.00 Order
4	151117	WASHERD.11.25-22X2.5	$0.00 Order
8	10839510	CENTERING DOWEL	$12.11 Order
9	292870	UNION	$41.16 Order
11	675000193 Replaced by: #14457081	O.R. GASKET	$0.00 In Stock
12	214412	STUD	$45.95 Order
13	675000106	WASHER	$4.29 Order
14	157218	SCREWM6X25	$10.62 Order
15	272605	STUD	$10.76 Order
17	201599	SCREWM6X20	$11.52 Order
18	243719	SCREWM6X35	$9.84 Order
19	199760	THREADED PLUG	$6.21 Order
21	318090	LH CYLINDER HEAD COVER	$946.65 Order
22	292326	PIN	$24.80 Order
24	289095 Replaced by: #303025	GASKET	$0.00 Order
24	303025	GASKET	$16.98 Order
25	296759	SCREWM6X45	$8.28 Order
26	272491 Replaced by: #296075	WASHER	$0.00 Order
26	296075	WASHERD.13X5.8	$22.86 Order
27	102725	CENTERING DOWEL	$10.40 Order
28	306857	OIL PRESSURE CHECK VALVE	$78.96 Order
29	302374	GASKET	$20.20 Order
30	14304221	SCREWM5X16	$7.65 Order
31	300708	O.R. GASKET	$0.00 Order
32	303886	NUT	$0.00 Order
33	151117	WASHERD.11.25-22X2.5	$0.00 Order
34	321187	NUT	$37.07 Order
35	315775 Replaced by: #321187	WASHER	$0.00 Order
