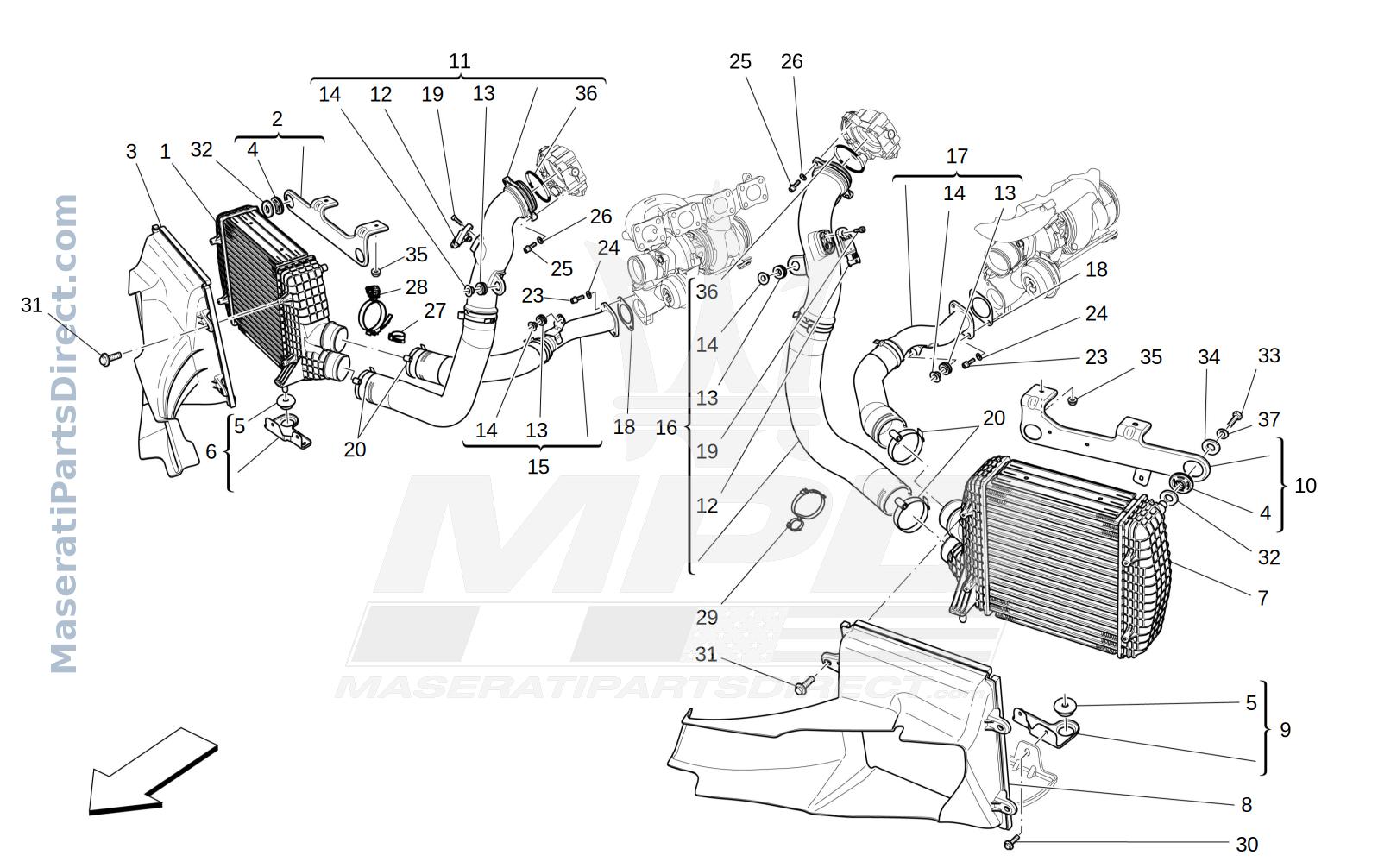

01.32 - 1 - INTERCOOLER SYSTEM

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670109551	RH INTERCOOLER	$780.50 Order
2	670001349	RH BRACKET	$53.90 Order
3	670037774	RH SIDE AIR DUCT	$218.99 Order
4	675000201	FLEXIBLE PAD	$19.15 Order
5	670009556	BUSHING	$10.80 Order
6	670037757	RH LOWER BRACKET ASSEMBLY	$44.69 Order
7	670109550	LH INTERCOOLER	$624.51 Order
8	670037775	LH SIDE AIR DUCT	$218.99 Order
9	670037759	LH LOWER BRACKET ASSEMBLY	$43.66 Order
10	670001348	LH BRACKET	$53.90 Order
11	670002111	PIPE BETWEEN INTERCOOLER AND RH INTAKE DUCT	$778.58 Order
12	675000014	PRESSURE TRANSMITTER	$237.27 Order
13	675000016	FLEXIBLE PAD	$21.48 Order
14	675000017	SPACER	$14.56 Order
15	670103756	SLEEVE FROM TURBINE TO RH INTERCOOLER	$699.99 Order
16	670002112	PIPE BETWEEN INTERCOOLER AND LH INTAKE DUCT	$787.09 Order
17	670103757	SLEEVE FROM TURBINE TO LH INTERCOOLER	$0.00 Order
18	670006209	GASKET	$42.42 Order
19	675000190	SCREWM6X20	$14.56 Order
20	675000362	COLLARD.78	$11.95 In Stock
23	675000375	SCREWM6X20	$4.86 Order
24	11197774	WASHERD.6.4-12X1.2	$9.20 Order
25	675000376	SCREW	$9.17 Order
26	675000367	WASHERD.6.15-15X1.5	$0.00 Order
27	670007020	RETAINING CLIP	$11.52 Order
28	670006982	RETAINING CLIP	$10.14 Order
29	670005919	RETAINING CLIP	$15.89 Order
30	675000087	SCREWM6X16	$7.65 Order
31	675000354	SCREW	$6.93 Order
32	670007293	SPACER	$10.62 Order
33	10902024	SCREWM6X12	$8.64 Order
34	675000409	CUP	$9.24 Order
35	14059214	NUTM6	$8.64 Order
36	14464786	O.R. GASKET	$53.33 Order
37	675000718	WASHER	$10.00 Order
