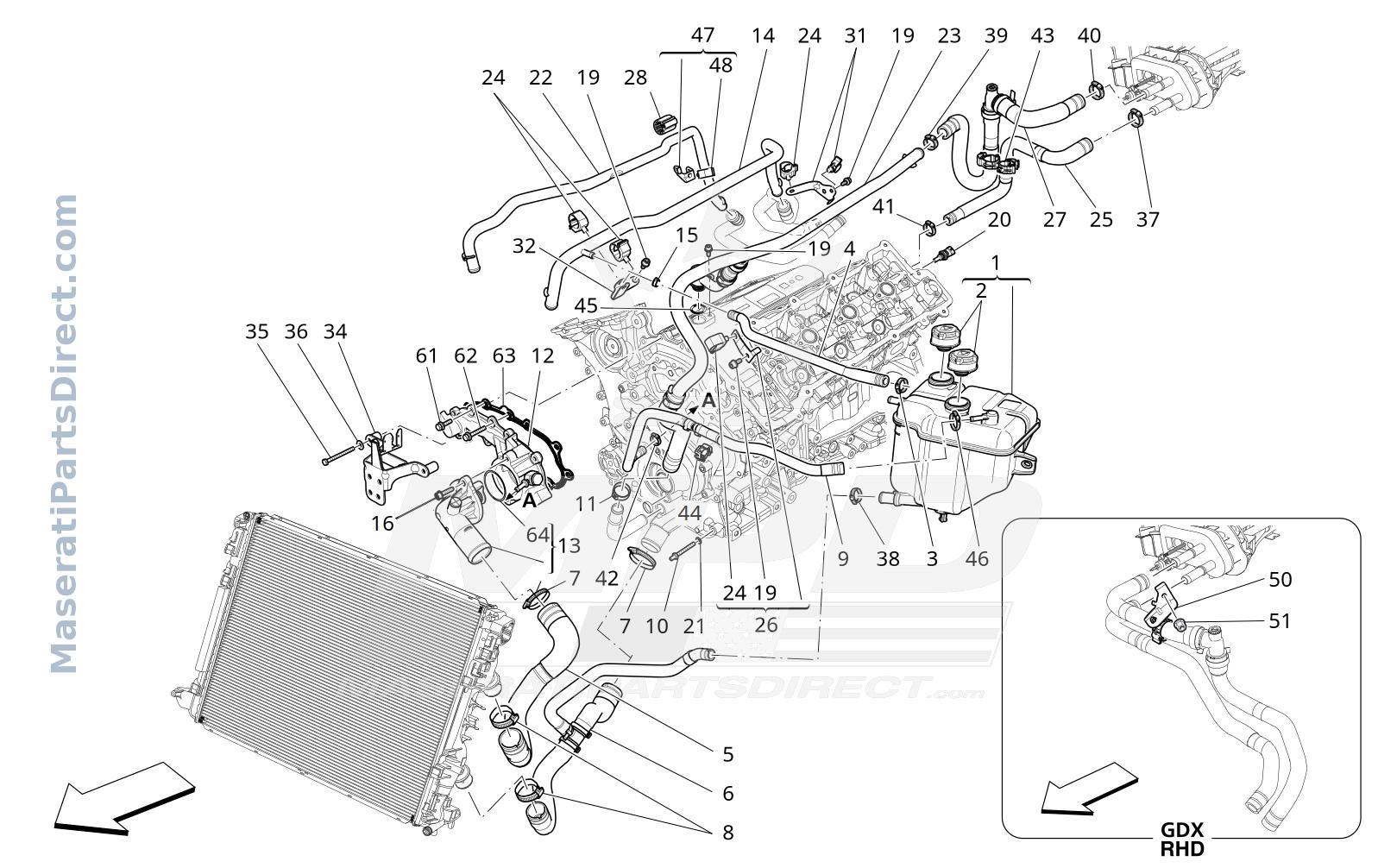

01.71 - 5 - COOLING SYSTEM: NOURICE AND LINES

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670031651	EXPANSION TANK ASSEMBLY	$173.60 In Stock
2	670003408	TANK PLUG	$23.66 Order
3	675000344	COLLARD.17	$11.52 Order
4	670003615	SECONDARY VENT PIPE	$57.23 Order
5	670031866	RADIATOR WATER INLET PIPE	$80.77 Order
6	670038530 Replaced by: #670155231	WATER OUTLET SLEEVE	$0.00 Order
6	670155231	WATER OUTLET SLEEVE	$235.53 Order
7	11417670	SCREW COLLAR	$15.65 Order
8	675000345	SCREW COLLARD.58	$11.52 In Stock
9	670003613	MAIN VENT PIPE	$177.25 Order
10	227281	STUD	$51.40 Order
11	262109	COLLAR	$10.16 Order
12	291773	CPL. CROSSOVER	$990.16 Order
13	323056 Replaced by: #330424	THERMOSTAT ASSEMBLY	$0.00 In Stock
13	330424	THERMOSTAT ASSEMBLY	$179.52 In Stock
14	882497	SECONDARY WATER PIPE	$131.36 Order
15	675000373	COLLARD.12,5	$8.28 Order
16	231620	SCREWM6X25	$5.58 In Stock
19	231616	SCREWM6X14	$9.20 Order
20	180137	WATER TEMPERATURE SENSOR	$97.29 Order
21	675000106	WASHER	$4.29 Order
22	296492	SECONDARY WATER PIPE	$139.83 Order
23	296279 Replaced by: #313011	WATER RETURN PIPE FROM OIL EXCHANGER	$0.00 Order
23	333706	WATER RETURN PIPE FROM OIL EXCHANGER	$277.80 Order
24	259508	CLIP	$11.52 Order
25	670106757	HEATER WATER DELIVERY SLEEVE	$82.58 Order
26	292354	BRACKET ASSEMBLY	$56.20 Order
27	670106759	WATER RETURN SLEEVE FROM HEATER	$241.85 Order
28	298362	RUBBER	$23.23 Order
31	300867	BRACKET	$443.06 Order
32	287986	BRACKET	$230.78 Order
34	285150	BRACKET	$0.00 Order
34	834094	BRACKET	$179.56 Order
35	10903424	SCREWM6X45	$15.65 Order
36	14498824	WASHERD.6.4-16.3X1	$9.20 Order
37	675000334	COLLARD23,5	$9.72 Order
38	675000658	COLLAR	$5.58 Order
39	675000352	COLLARD.23	$11.72 Order
40	675000334	COLLARD23,5	$9.72 Order
41	675000371	COLLARD.18,5	$11.10 Order
42	675000368	COLLARD.11	$8.28 Order
43	670005922	RETAINING CLIP	$11.25 Order
44	675000019	RETAINING CLIP	$8.64 Order
45	282370	O.R. GASKET	$10.14 In Stock
46	675000344	COLLARD.17	$11.52 Order
47	302126	BRACKET ASSEMBLY	$33.85 Order
48	259508	CLIP	$11.52 Order
50	670005450	BRACKET ASSEMBLY	$23.79 Order
51	14059214	NUTM6	$8.64 Order
61	291776	SCREWM6X25	$11.10 Order
62	291771	SCREWM6X45	$23.34 Order
63	280912	GASKET	$41.36 In Stock
64	673017343	GASKET	$0.00 Order
