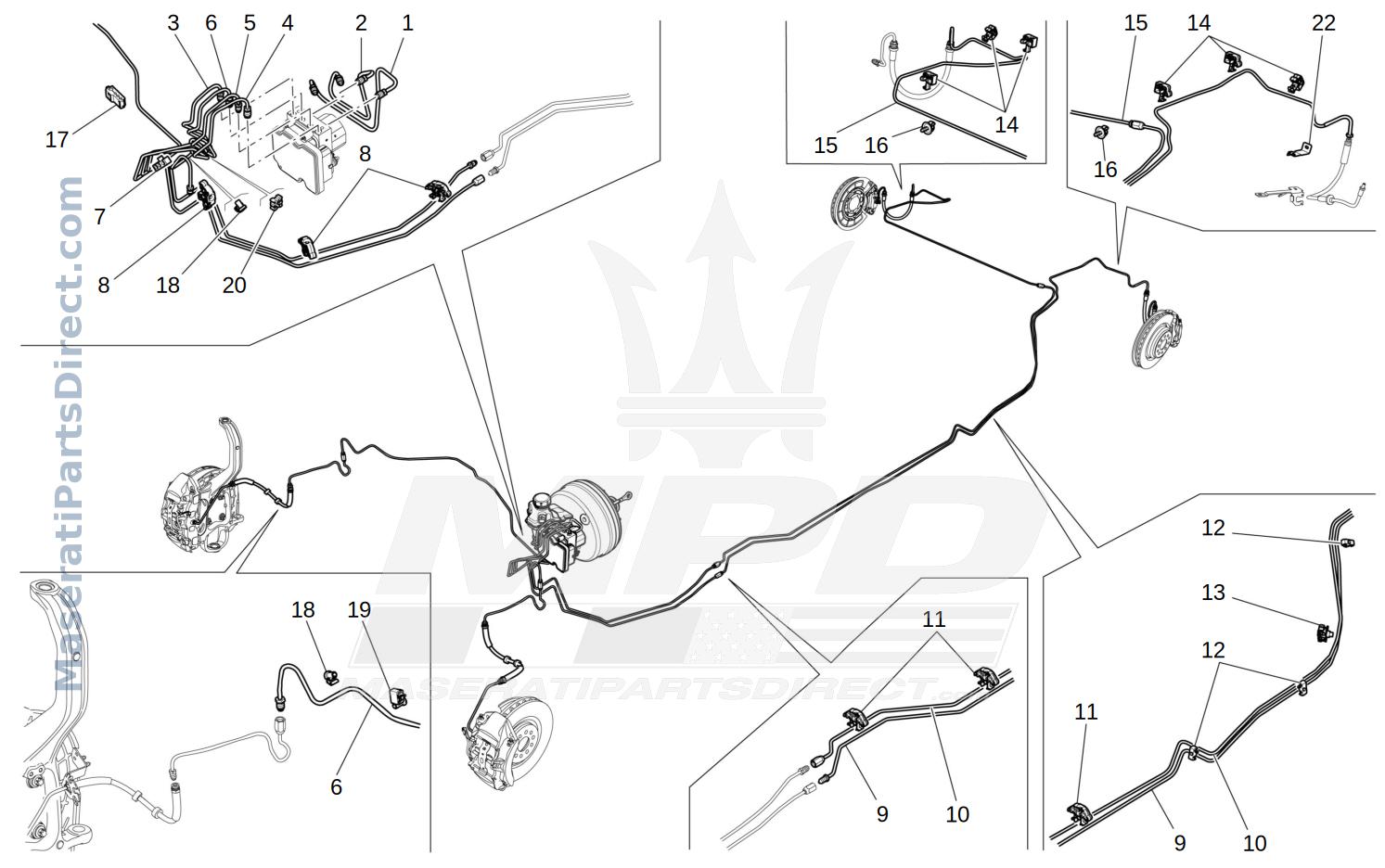

04.20 - 3 - LINES

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670001786	RIGID PIPE FROM PUMP TO CONTROL UNIT (MC2)	$42.71 Order
2	670030889	RIGID PIPE FROM PUMP TO CONTROL UNIT (MC1)	$40.18 Order
3	670007041	RIGID PIPE FROM CONTROL UNIT TO LH CONNECTION	$1,167.83 Order
4	670004926	RIGID PIPE FROM CONTROL UNIT TO RH INTERMEDIATE PIPE	$80.28 Order
5	670004977	RIGID PIPE FROM CONTROL UNIT TO LH INTERMEDIATE PIPE	$82.74 Order
6	670039669	RIGID PIPE FROM CONTROL UNIT TO RH CONNECTION	$531.99 Order
7	675000142	CLIP	$9.20 Order
8	675000075	CLIP	$6.93 Order
9	670001791	RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL	$147.84 Order
10	670004927	RH INTERMEDIATE RIGID PIPE	$103.36 Order
11	675000075	CLIP	$6.93 Order
12	675000107	CLIP	$8.64 Order
13	675000068	CLIP	$6.21 Order
14	675000074	CLIP	$5.58 Order
15	670035652	RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL	$76.00 Order
16	675000036	CLIP	$33.21 Order
17	670006550	CLIP	$20.28 Order
18	675000141	CLIP	$9.20 Order
19	675000272	CLIP	$11.25 Order
20	670006551	CLIP	$0.00 Order
22	670036898	LH BRACKET	$21.48 Order
