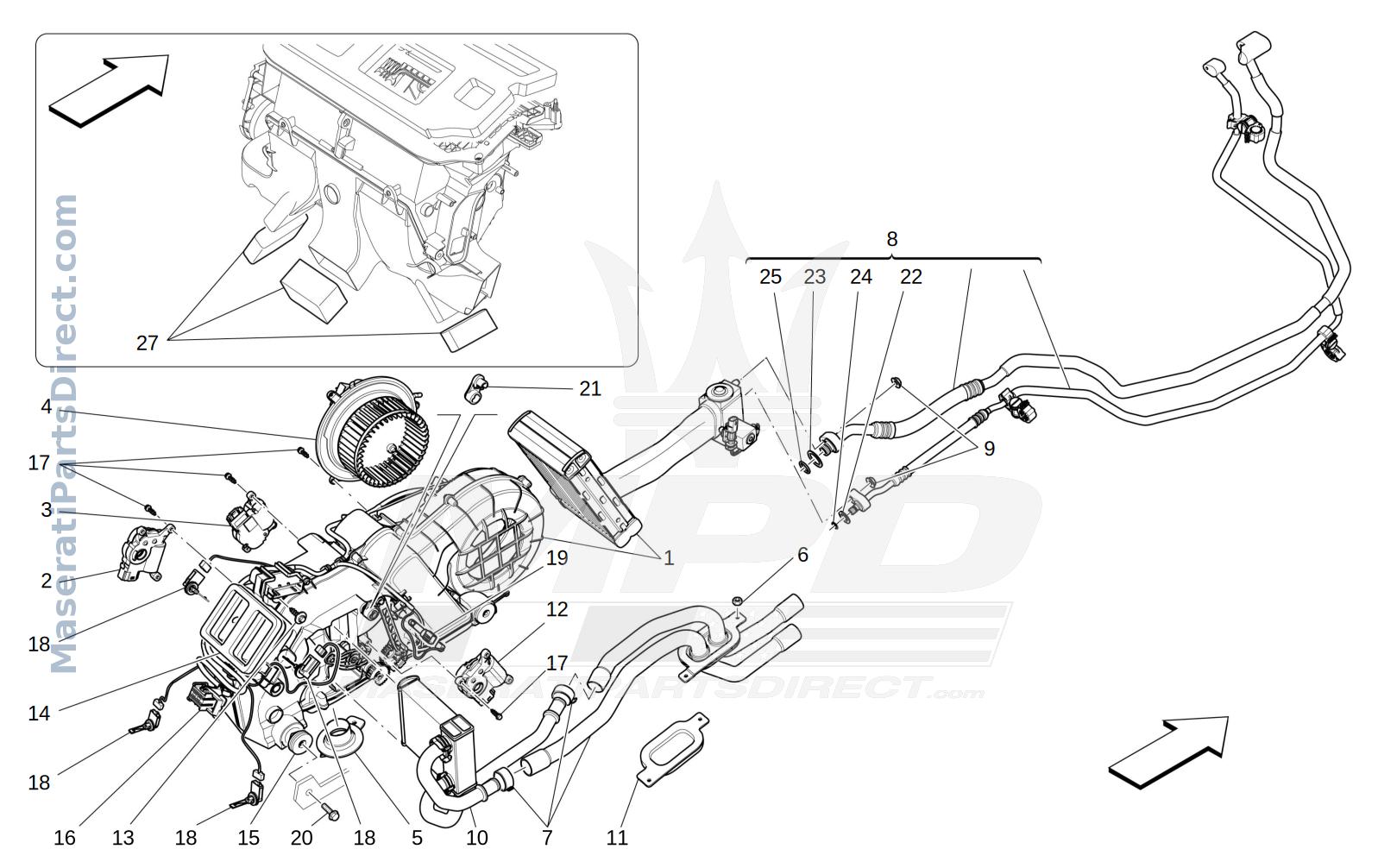

08.43 - 1 - A/C UNIT: TUNNEL DEVICES

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
0	670035894	REAR AIR CONTIDIONING SYSTEM ASSEMBLY	$3,659.20 Order
1	673002681	REAR AIR CONDITIONING CASE	$2,063.50 Order
2	670035896	AIR ACTUATOR	$279.09 Order
3	670035898	LH ACTUATOR	$286.25 Order
4	670003710	ELECTROFAN	$1,637.71 Order
5	670002045	CONDENSATION DRAIN PIPE	$53.03 Order
6	675000093	NUTM6	$9.73 Order
7	673000043	RUBBER HOSE ASSEMBLY	$0.00 Order
8	670001961	PIPE BETWEEN EVAPOURATOR AND UNION	$510.24 Order
9	675000328	NUT	$9.24 Order
10	673000042	RADIATOR AND PIPES	$936.41 Order
11	670005088	PLUG	$79.43 Order
12	670035897	RH ACTUATOR	$286.25 Order
13	673000049	SCREW	$109.99 Order
14	673000050	GASKET	$72.73 Order
15	673000044	FASTENING RUBBER	$189.90 Order
16	673002683	REAR COOLER WIRING HARNESS	$0.00 Order
17	68391900	SCREW	$11.52 Order
18	673000046	AIR SENSOR	$399.71 Order
19	673000045	EVAPORATOR SENSOR	$113.83 Order
20	675000436	SCREW	$11.10 Order
21	673007371	LEVER	$128.21 Order
22	675000122	1/2" SEAL	$14.56 In Stock
23	675000123	3/4" SEAL	$21.52 In Stock
24	675000119	O.R. GASKET6,8x1,87	$11.55 Order
25	675000306	O.R. GASKET13,6x2,43	$9.84 Order
27	670152733	PAD	$0.00 Order
